Assembly before installation

The stove leg and the warming oven top might not be assembled
in the factory, in order to save space for transportation and
storage. You must therefore assemble these parts before
installing the cook stove.

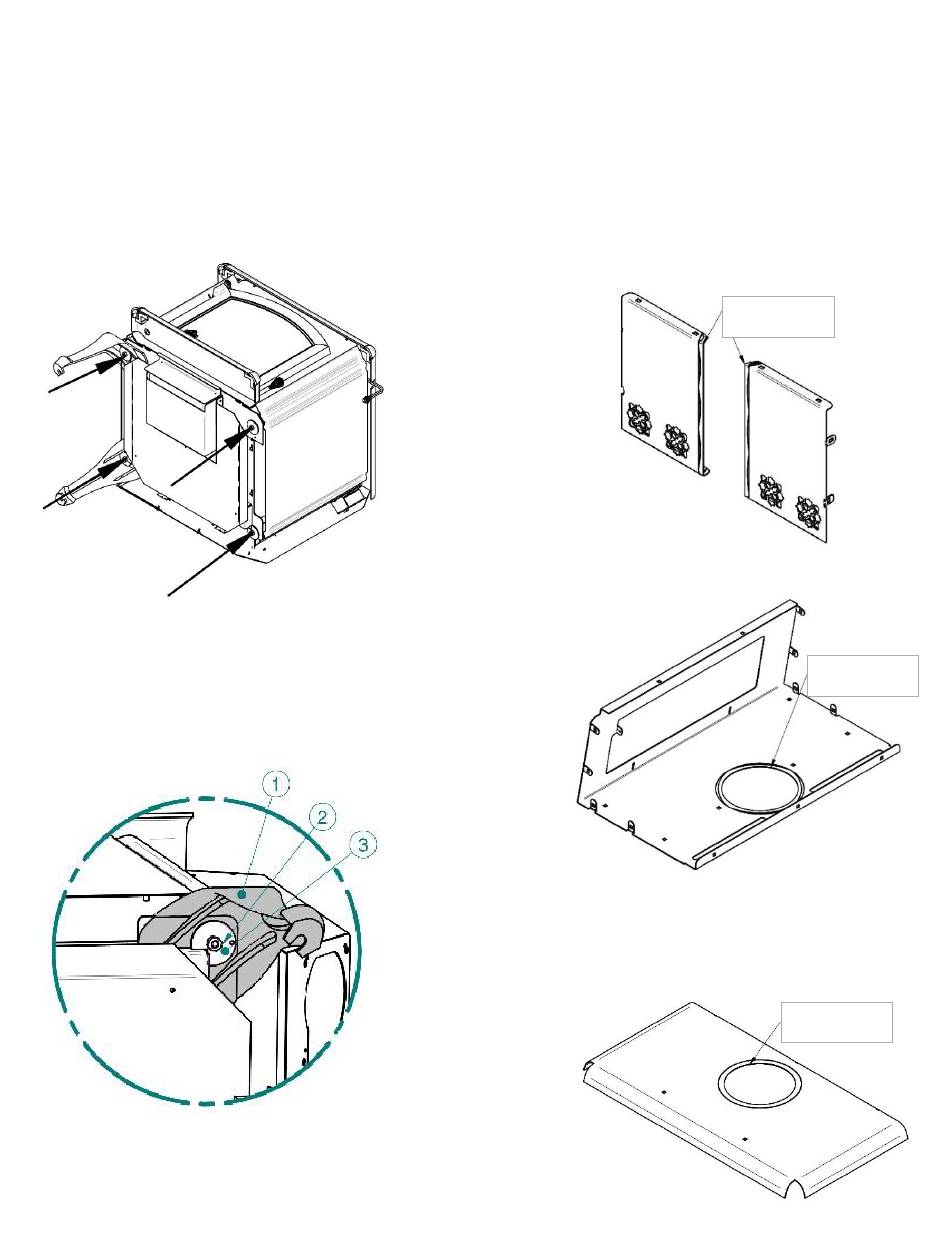

Installing legs

1) Take out legs and bricks from combustion chamber.
2) Unscrew the stove from the skids.
3) Lay the stove on its back carefully not to damage the
paint.
4) Loosen the nut (#2) without removing it completely.
5) Install the legs (#1) as illustrated below.
Attention: Make sure the legs are in place, correctly
positioned and in contact with the bottom of the
stove.
PR_I004/2023-04-21-EN

Warmer stove Assembly (Optional)

At this moment, you need to know which type of smoke pipe you
are installing: a single pipe or a double pipe.
For the single pipe, it is not necessary to remove the pre-cut
metal part.
For the double pipe, you must remove the pre-cut metal part on
the top, inside and in front of the warmer, see pictures below.
Revision : 4
Couper le contour
Cut the edge
Couper le contour
Cut the edge
Couper le contour
Cut the edge
