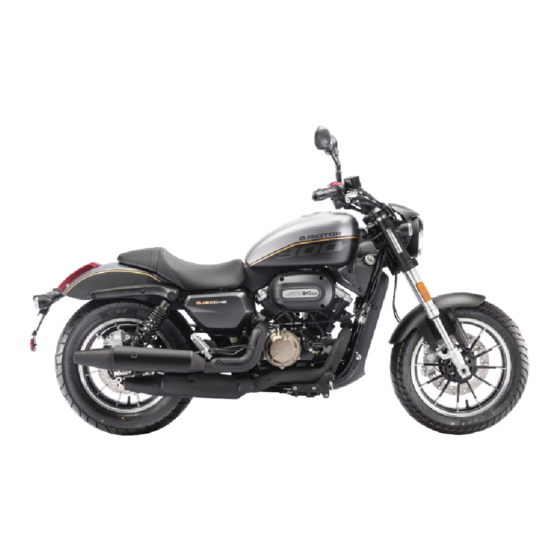

- Page 2 PREFACE Welcome to the world of motorcycling! As the owner, you are benefiting from the vast experience and newest technology regarding the design and manufacture of high-quality products, which have earned us a reputation for dependability. Please take the time to read this manual thoroughly, so as to enjoy all advantages of your vehicle.
- Page 3 IMPORTANT NOTES 1． Rider and passenger The motorcycle is designed to be used by only one rider and one passenger. 2． Road conditions for riding This motorcycle is suitable for riding on-highway. 3. Please read this operation and maintenance manual carefully. Following the break-in instructions in this manual will keep your motorcycle running stably and allow the engine to reach its full performance.
-
Page 4: Special Notice
SPECIAL NOTICE Warning: this motorcycle is equipped with a main fuse that must meet the standard requirements to run safely. DO NOT use fuses of incorrect specifications or other conductive objects; otherwise it will lead to damage to parts, fire, and/or a serious accident. Pay special attention: *When installing or replacing the battery for the first time, pay attention to distinguish between positive and negative connections. - Page 5 QJMOTOR Motorcycle will not bear all quality problems and consequences (including loss of warranty) caused by users' unauthorized modification or installation of unauthorized parts. The user is requested to comply with the regulations of the traffic management department on the use of vehicles.
-
Page 6: Table Of Contents
Table of Contents PREFACE IMPORTANT NOTES Starting the Engine……………….……………………………14 SPECIAL NOTICE Setting off……………………………………………………14 Shifting gears………………..……………………………15 Safety Information …......………………….…….1 Riding on a slope………...…………………………………15 Safe riding tips…………………………………………….…..…1 Brakeing ...………………………………………………..15 Inspection and Maintenance……………………………16 Protective Apparel……………………………………….………1 Maintenance schedule………………….………………16 Wear a safety helmet………….…………………………………1 Oil level check and engine oil replacement..………18 Precautions for riding on rainy days………………………1 Spark Plugs…………………………...……………………19 Motorcycle serial number……………………………………2... - Page 7 Emission Related Components Warranty......33 Reporting Safety Defects............37 California Proposition 65 Warning........38...
-
Page 8: Safety Information
Safety Information the overload of electrical systems will easily to cause danger. Safe riding tips Protective apparel 1. The vehicle must be inspected before riding in order to 1. In order to ensure personal safety, drivers must avoid accidents and damage to the vehicle. wear a safety helmet, protective glasses, as well as riding 2. -
Page 9: Motorcycle Serial Number
Motorcycle serial number Parts Location (1) Rear view mirror (14) Oil filler cap Frame numbers and engine numbers are used to register (2) Clutch lever (15) Rear brake fluid reservoir motorcycles. When ordering accessories or requiring special (3) Left handlebar switch (16) USB interface services, this number enables the dealer to provide you with (4) Speedometer (17) Seat lock hole... - Page 10 SRV300 (chain drive) model SRV300 (belt drive) model...
-
Page 11: Meter & Indicators
Instruments (5) Engine oil indicator (1) Left turn signal indicator When the engine has not been started but the ignition When the turn signal switch is on, the oil indicator light will be on; if the oil pressure switch is pushed to the left, the is normal after starting the engine, the oil indicator light will green signal indicator on the turn off;... - Page 12 the neutral indicator "N" will be lit accordingly. see "instrument adjustment button" (item 16). (10) Low fuel warning indicator (14) Fuel gauge When the fuel level is low, the low fuel indicator will light Indicates how much fuel is stored in the tank. When the tank up and flash.
-
Page 13: Operation Guide
(ODO) state, press "SELECT" and hold the button, odometer Ignition switch and speedometer units switch between kph and mph. Warning: Press "ENTER" and hold the button, the clock enters the Don't attach heavy or large key-chains to the key, this time adjustment interface, the clock hour flashes, short press may hinder key rotation in the ignition switch. -
Page 14: Left Handlebar Switch
④ turn signal light switch Note: Press the turn signal switch " To prevent theft, please lock the steering and remove "or " " the corresponding turn signal lights flash. At the same time, the the key when you stop the vehicle. After locking, gently turn green turn signal indicator on the dashboard flashes the handlebars to confirm whether it is locked. -
Page 15: Right Handlebar Switch
⑤ front brake lever Right handlebar switch Pull the front brake lever with your right hand slowly when braking. ① engine kill switch ⑥ front brake lever adjuster Switch to " "position, According to the needs of vehicle electrical circuit operating comfort, the position of the is turned on, the engine can be front brake lever can be adjusted by... -
Page 16: Fuel Inspection, Replenishment
Fuel inspection, replenishment Do not forget to lock the fuel tank cap to prevent When the low fuel warning excessive evaporation of fuel into the atmosphere, light flashes on the instrument which wastes energy cluster, please refuel. and pollutes When refueling, first flip up the the environment. -
Page 17: Shifter Lever
Shifter lever Side stand This motorcycle uses a traditional The stand is on the left side of the vehicle. Please lower six speed gear box, the gear positions the stand in place with your foot when you stop. The side stand are shown in the figure to the right. -
Page 18: Rear Shock Absorber Adjustment
Seat removal and installation Rear shock absorber adjustment Insert the key into the seat lock located on the left side The rear shock absorber is composed of cover ①, gently lift the seat from the rear while pulling back on the shock absorber spring , shock absorber, it at the same time. -
Page 19: Break-In
Engine oil Engine break-in Topspeed For your new motorcycle, the first 1000 miles of operation is considered the engine break-in period, do not accelerate rapidly or rev the engine, turn suddenly or brake quickly, nor should you allow the engine RPMs to exceed 80% in any gear position; avoid fully opening the throttle 100%. -
Page 20: Pre-Ride Inspections
the oil level should be checked on a regular basis. If you need to The following table lists the maximum speed during engine add to it, you should add the engine oil specified for this break-in application. Initial 500 mi Below 5000 rpm at 1000 mi Below 7500 rpm... -
Page 21: Riding Motorcycle
high beam light indicator, gear indicator, Indicator lights Press the right handlebar switch to the start position. turn signal indicator " " when the throttle is closed, press the electric starter Horn and brake switch to start the engine. Normal function switch Use caution: Engine oil... -
Page 22: Shifting Gears
Shifting gears The transmission will allow the engine to run smoothly within the normal operating range. The driver should choose the most Warning: suitable gear based on the operating conditions. Do not use the Using only the front brake or rear brake is dangerous and clutch to control vehicle speed. -
Page 23: Inspection And Maintenance
Inspection and maintenance The following table shows the regular maintenance intervals for the number of miles used. At the end of each interval, inspection, adjustment, lubrication and required maintenance must be carried out in accordance with the specified methods. Steering stem bearings, suspension and wheel systems are key components and require careful repair by skilled personnel. - Page 24 Maintenance Odometer readings (note 2) Period mileage Refer Content NOTES 600mi 2500mi 4400mi 6200mi 8700mi 11000mi to Pages Maintenance Item Brake wear Brake system I 、 A I 、 A I 、 A I 、 A I 、 A I 、 A Headlight beam adjustment Clutch adjustment...
-
Page 25: Oil Level Check And Engine Oil Replacement
Oil level check and engine oil replacement replaced) or 1.3L (when the oil filter is replaced at the same time). Check the engine oil level before starting (1) When draining the oil, place an oil drain pan below the the engine. When checking the oil level, stand oil drain plug (1), remove the oil drain bolt (1), allow the oil to the vehicle upright on flat ground and drain completely into the pan, reinstall the oil drain plug, and... -
Page 26: Spark Plugs
a few minutes, and then turn off the engine. when the handlebars are left or right in the full steering position. (5) Check the oil quantity position in the oil level window, the 2. Measure its free travel at the throttle. The standard free oil level must reach the upper limit mark position, at the same play should be 10 °~ 15 °. -
Page 27: Engine Idle Speed Adjustment
premature wear of the drive chain and sprockets. If used in dusty clutch cable can be adjusted as follows: environments, it must be maintained more frequently. (1) Remove the clutch cable dust cover sleeve. Adjustment of the drive chain: (2) Loosen the locking nut 1. Every 600 miles adjust the drive (3) Spin in or out the chain so that the sag of the chain is... -
Page 28: D R I V E B E L
chain regulator is engraved with a reference mark, check and Use a dry cloth and motorcycle chain cleaning spray to make sure that the reference mark on both sides of the chain is at clean the chain. Clean the dirt on the chain with a soft brush. the same mark. -
Page 29: B R A K E
Brakes Brake fluid The vehicle is equipped with a two-channel ABS disc brake The liquid level is system for the front and rear brakes. Correct braking operation reduced because is very important for safe riding. Remember to check the brake liquid stored system regularly, and this inspection should be carried out by... -
Page 30: Tires
Brake system Front tire wheel tire pressure 32 ± 1.5 psi The brake systems that should be checked on a daily basis Rear tire wheel tire pressure 36 ± 1.5 psi are as follows: (1) check for fluid leakage at the front and rear wheel brake Note: systems. -
Page 31: Air Filter Maintenance
(4) install the new air filter element in the reverse order of Air filter maintenance removal. The air filter is located below the It must be confirmed that the air filter element is installed fuel tank on the right side of the firmly in their original position and is properly sealed. -
Page 32: Coolant
Warning: Coolant Only when the engine is turned off and cooled, can the Recommended coolant type: 50/50 Ethylene Glycol/Water Mix coolant be added. To avoid burns, do not open the coolant When your new vehicle reservoir cap before the engine has cooled. The cooling leaves factory, system is under pressure. -
Page 33: Carbon Canister
the clamps are removed, the old disposable clamps can Note: not be reused, and only new hose clamps can be used. The catalytic converter is located inside the muffler which is a high temperature area, do not touch. Carbon canister This model is equipped with motorcycle fuel evaporation control device: carbon canister. -
Page 34: Battery
1. The battery terminal voltage is detected for the first time. When the voltage is less than 12.6V, the charging voltage is 14.4 ±0.02V, the charging limit current is 10A, and the charging current is reduced to 0.2A (or the relevant parameters are printed on the surface of the battery). - Page 35 voltage less than 12.6V. or replacing the battery. When removing the battery for inspection, please do so in To replace the battery, please pay attention to the following the following order: When replacing the battery, you should confirm the motorcycle model and verify that it is consistent with the A.
-
Page 36: Fuse Replacement
During the process of installation and removal, the Headlight beam adjustment battery should be moved and placed gently, do not drop the The headlight beam can be battery or subject it to heavy pressure. adjusted up and down in the vertical Under no circumstances should the battery cap (cover) direction. -
Page 37: Abs Usage And Maintenance Instructions
Note: ABS wheel speed sensor uses a magnet it may attract some When replacing light bulbs, it is necessary to use a bulb of metal substances, please keep the ABS wheel speed sensor clean the same specification as the one removed. Bulbs exceeding and without foreign substances, adhesion of foreign substances the necessary wattage will increase the load on the electrical will lead to ABS wheel speed sensor damage. - Page 38 Check the battery and install it after charging as needed. conditions. When draining fuel, do not smoke or do so near Check over the motorcycle before using it. Once ready for any sparks. use, test it at low speeds in a safe area away from busy roads. 4.
-
Page 39: Specifications And Technical Parameters
SRV300 Specifications and Technical parameters Engine code QJ2V58MN-A, double cylinder V-Twin,8V Bore× stroke 58.0 × 56.0mm Maximum power 30.30hp/9000rpm Maximum torque 19.17 ft lbs. / 7000rpm Ignition mode ECU electronic control Starting mode Electric start Fuel Tank Capacity 3.56±0.13gal Curb Weight 362 lbs. - Page 40 Emission Related Components Warranty parts and labor. If an emission-related part on your vehicle is defective, Below is the emission control system warranty printed the part will be repaired or replaced by SSR Motorsports. in the owner’s manual, a copy of the owner’s manual is This is your emission control system DEFECTS WARRANTY.
- Page 41 rights and responsibilities, you should contact (For California registered highway vehicles only) the Motorsports, 13220 Molette St Santa Fe Springs CA 90650, California Air Resources Board at 9528 Telstar TEL: (562) 926-2888 or (for California registered highway vehicles only) the Avenue, El Monte, CA 91731-8001.
- Page 42 reasonable time period, not to exceed 30 days also authorized SSR Motorsports dealer at its place of business constitutes an emergency. during customary business hours. This warranty does not II. Limitations This Emission Control System Warranty cover inconvenience or loss of use of the vehicle or shall not cover any of the following: transportation of the vehicle to or from the SSR A.
- Page 43 IV. LEGAL RIGHTS. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. V. THIS EMISSION CONTROL SYSTEM WARRANTY IS IN ADDITION TO THE STANDARD LIMITED WARRANTY FOR ALL VEHICLES. VI.
- Page 44 Reporting Safety Defects If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National High way Traffic Safety Administration (NHTSA) in addition to notifying SSR Motorsports.
- Page 45 California Proposition 65 Warning Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle.
- Page 46 Part Number: 02401P540002...
