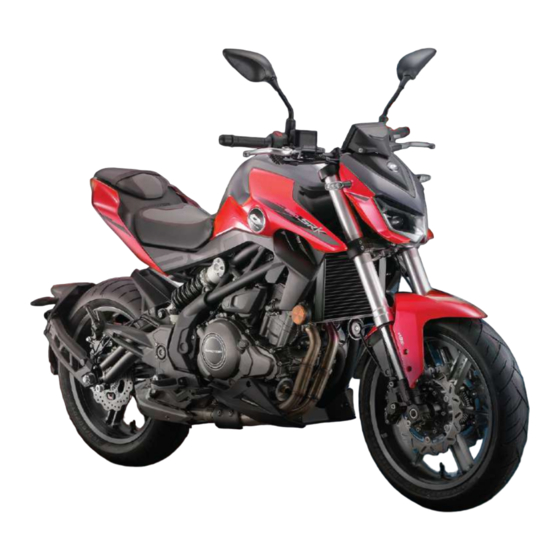

Summary of Contents for QJMOTOR SRK 250 2024
- Page 2 SRK 250 USER MANUAL Details described or illustrated in this booklet may differ from the vehicle's actual specification as purchased, the accessories fitted or the national-market specification. No claims will be asserted as a result of such discrepancies. Dimensions, weights, fuel consumption and performance data are quoted to the customary tolerances. The right to modify designs, equipment and accessories is reserved.
-
Page 4: Table Of Contents
Contents Preface ................1 Rear shock absorber adjustment ......14 Important notes ............. 1 Automatic stopping in case of rollover ....15 Special reminder ............2 Rear view mirror adjustment ......... 15 Safety Instructions for Motorcycle ......... 4 Seat cushion assembly and disassembly ..... 15 Code of safe riding .......... - Page 5 Oil level and oil change ......... 23 Battery..............33 Changing oil and oil filter........23 Fuse replacement ..........35 Spark plug ............. 24 Headlight beam adjustment (optional) ....35 Accelerator cable adjustment........ 24 ABS operation and maintenance instructions ..36 Clutch adjustment ..........
-
Page 6: Preface
Preface manual are for reference only, and the specific style is subject to the real object. Thank you for choosing QJMOTOR brand motorcycle. We assimilate the advanced technology at home and Important notes abroad to produce this model of motorcycle, which will provide you with extremely happy and safe driving. -
Page 7: Special Reminder
If the fuse is still blown after replacing Notice Provide useful information. the spare fuse, immediately send the motorcycle to the maintenance department of QJMOTOR dealers for inspection. After the fault is eliminated, the This operation and maintenance manual shall be motorcycle can continue to run. - Page 8 • Before replacing the fuse, turn the vehicle key to according to the provisions of the Road Traffic the " " position to prevent accidental short circuit; Safety Law of the People's Republic of China, no • When replacing the fuse, do not damage the fuse unit or individual may assemble motor vehicles or alter the registered structure, structure or character- bayonet, otherwise it will cause poor contact,...
-
Page 9: Safety Instructions For Motorcycle
Safety Instructions for Motorcycle 7. Drive carefully while riding through the intersec- tions, entrances and exits of parking lot and Code of safe riding express lanes. 1. The motorcycle must be inspected before driv- 8. It is illegal to modify the motorcycle or disassem- ing, to avoid accidents and damage to parts. -
Page 10: Wear A Safety Helmet
When ordering accessories the engine crankcase. or commissioning special services, the numbers will help the maintenance department of QJMOTOR Frame VIN number: dealer to provide with better services. Engine number:... -
Page 11: Names Of Parts
Names of Parts 18 17 16 15 1 Left and right rear view mirrors 2 Clutch lever 3 Left handle switch 4 Meter 5 Ignition switch 6 Front brake fluid reservoir 7 Right handle switch 8 Front brake handle 9 Accelerator control grip 0 Fuel tank... - Page 12 A Front combination light (headlight, front position M Front wheel ABS wheel speed sensor light) N Front brake (left and right) B Front turn signal light (left and right) O Exhaust muffler C Radiator cooling water tank P Coolant expansion kettle D Front shock absorber assembly Q Front brake pedal lever E Rear shock absorber...
-
Page 13: Instruments
Instruments tion indicates that the water temperature is low, and the “H” position indicates that the water temperature is high. When the water temperature is ≥ 115 degrees, please stop and check or contact the motorcycle distributor to check the vehicle. Water tem- Water tem- Temperature... - Page 14 Indicates how much oil is stored in the tank. When C Odometer filling up the fuel, it shows 6 fuel levels, the number Depending on your needs, you can choose the of oil bits close to E means less fuel; and the num- small mileage (TRIP 1 or TRIP 2) or total mileage ber of oil bits close to F indicates that there is a lot of (TOTAL) feature on the odometer.
-
Page 15: Operations Of Parts
state of relative mileage (trip a, trip b), long press Warning “select” to clear the relative mileage. Never turn the key while the motorcycle is running, Briefly press the “enter” confirmation button to enter otherwise the motorcycle may lose control. For rid- the main menu page of instrument selection, functions ing safety, please check whether there is some- such as “interface switching”, “clock setting”, “backlight... -
Page 16: Left Handle Switch
After pressing the turn signal light switch “ ” or Notice “ ”, the signal light for turning to the left or right will To prevent theft, please lock the steering mecha- flash. At the same time, the green turn indicator on nism and remove the key when parking. -
Page 17: Refueling Fuel Tank
6 Front brake handle opening adjuster Toggle the switch to “ ” posi- According to the needs of oper- tion: the circuit is connected, ating comfort, the position of and the engine can be started. front brake handle can be Toggle the switch to “... -
Page 18: Shift Pedal Lever
sound, and dose the dust cap of fuel tank cover. fuel tank cover to ensure smooth drainage and prevent The fuel tank must not be overfilled (the refueling external moisture from entering the cavity of fuel tank. amount recommended by factory is 90% of the total Shift pedal lever volume of fuel tank). -
Page 19: Rear Brake Pedal
Rear brake pedal Front shock absorber adjustment (Optional) Press down the rear brake Configure A: front shock absorber (adjustable) pedal to engage the rear brake. Rotate the shock absorber When the rear brake is manipu- knob clockwise using a straight lated, the brake light will be on. -
Page 20: Automatic Stopping In Case Of Rollover
ing, support the motorcycle with a side stand. Rear view mirror adjustment According to the road conditions, in order to The angle of rear view mirror increase the comfort of the rider; the size of the can be adjusted by rotating damping force can be adjusted through the adjust- rear view mirror frame 1 and ment nut 1 at the lower end of the shock absorber:... -
Page 21: Instructions For Fuel And Oil
Instructions for fuel and oil Running-in Fuel Maximum speed Use lead-free gasoline. If the engine makes a slight For new motorcycles, do not run the engine beyond knocking sound, the reason may be because the fuel the limit or suddenly accelerate, turn or brake, and at ordinary grade is used, which shall be replaced. -
Page 22: Avoid Continuous Running At A Low Speed
Avoid continuous running at a low speed adjustments must be made properly all fasteners should be tightened, and dirty oil should be When the engine continues to run at a low speed replaced. Timely maintenance after 1000km will (under light load), poor fit may be caused due to help ensure long service life and good performance excessive wear on parts. -
Page 23: Inspection Before Riding
Inspection before Riding Contents Key points Check the followings before riding the motorcycle. Operate all lights-headlights, Do not neglect the importance of these inspections. position lights, brake lights, Complete all inspection items before riding. Light instrument lights, turn signal lights, etc. Contents Key points High beam indicator;... -
Page 24: Riding Motorcycle
Riding Motorcycle Start Put away the side stand, hold the clutch handle Engine Start tightly for a few seconds, and step down the gear Turn the ignition switch key to the “ ” position, and shift lever to the first gear Rotate the accelerator confirm that the transmission is in the neutral position, control grip toward the driven and at the same time and the neutral indicator on the instrument will be on. -
Page 25: Using Brake And Parking
Using brake and parking Motorcycle should be parked on a solid and flat ground. Do not park motorcycles in places where To fully close the throttle, release the throttle control traffic may be obstructed. grip and use the front and rear brakes evenly. Shift Rotate the ignition switch to the “... - Page 26 Mileage Contents between Odometer reading (note 2) Cycle services Maintenance item NOTES. 1000Km 6000Km 12000Km 18000Km 24000Km 30000Km Fuel channel Fuel filter Accelerator opera- tion Air filter Note 1 Spark plug Valve clearance Every 10000km: I Oil filter Oil screen Cooling system Driving chain Note 3...
- Page 27 Mileage Contents between Odometer reading (note 2) Cycle services Maintenance item NOTES. 1000Km 6000Km 12000Km 18000Km 24000Km 30000Km Side stand Suspension system Nuts, bolts, fasten- Note 3 Wheel/Rim Note 3 Steering mechanism *Available from the sales department or maintenance service center: the owner should prepare qualified tools and motorcy- cle inspection data, and the motorcycle should be repaired by the person holding mechanic certificate.
-
Page 28: Oil Level And Oil Change
Oil level and oil change Engine oil capacity is about 3.2L and it is 3.0L when replacing Before starting the engine, 1. When draining the oil, place check the engine oil level. the drain basin below the When checking the oil level, drain position and remove make the motorcycle stand the drain bolt 1. -
Page 29: Spark Plug
6. If the oil splashes, please wipe it off. Notice Spark plug Please do not remove the O-ring of oil filter; as this During the first 1000km of driving and may prevent the seal ring from being installed 0.7-0.8mm every 3000km thereafter; use a small properly, thus causing oil leakage or engine dam- wire brush or spark plug cleaner to age. -
Page 30: Clutch Adjustment
the fully closed position at the full steering posi- Clutch adjustment tion on the left and right sides. The free travel of clutch should 2. Measure its free travel at the be 10-20mm which is deter- throttle control grip flange. The mined based on the end posi- standard free travel should be tion of clutch grip before loos-... -
Page 31: Engine Idle Speed Adjustment
If adjustment is required, please contact • Loosen the rear axle nut 1. the maintenance department of QJMOTOR dealer. • Loosen the lock nut 2. Driving chain • Rotate the adjusting bolt 3 to the right or left to... -
Page 32: Driving Chain Lubrication
• Damaged roller Brake adjustment • Dry and rusty chain links 1. The free stroke of front brake • Knotted or seized links grip end should be 10-20 mm. • Excessive damage 2. Measure the distance that the • Adjust the slack in chain brake pedal moves before and If the above-mentioned fault occurs on the chain, after the brake starts to work. -
Page 33: Braking System
The front brake fluid reservoir Braking system is installed above the right The following braking systems should be checked handle. If the fluid level is every day: lower than the lower limit line • Check the leakage problem for the braking sys- (MIN) in the reservoir;... -
Page 34: Tire
Tire Warning The correct tire pressure will provide maximum sta- Insufficient inflation of tires may cause the tires to bility, driving comfort and tire durability. Check the slip or come off or even damage the rims, thus tire pressure and adjust if necessary. resulting in control failure and danger. -
Page 35: Coolant
QJMOTOR dealer to when ignited. Serious burns may be caused due to replace the coolant in time. -
Page 36: Catalytic Converter
Canister Warning This model motorcycle is equipped with motorcycle If coolant is inhaled, seek medical advice immedi- fuel evaporation control device: canister. ately. If the skin or eyes accidentally come into Canister is located in the middle position above the contact with the coolant, it should be washed engine. -
Page 37: Fuel Injector And Fuel Line
The above lubrication items marked with “” should motorcycle rained or washed, we recommend that you per- be operated by professional service technicians of the maintenance department of QJMOTOR dealer. form a lubrication maintenance... -
Page 38: Battery
Battery • Charging system detection: After the motorcycle is started, the battery voltage between 13.5V and The battery is located under 15V indicates that the charging system is normal. the seat cushion . Ma inte- • Motorcycle leakage current detection: Turn off the nance-free battery (Valve-reg- power supply;... - Page 39 The installation of the battery takes in the reverse Warning order; the positive terminal (+) first and then the Battery may produce flammable gas during use negative terminal (-) and charging, so don't be closed to flames or Notice sparks when charging. The battery contains sulfuric acid (electrolyte), When reinstalling the battery, be sure to connect which is highly corrosive, so it is necessary to pre-...
-
Page 40: Fuse Replacement
Fuse replacement Notice The fuse box is located under While adjusting the beam height, the rider should the rider's seat cushion and sit on the seat cushion and the motorcycle should next to the battery. be kept in a vertical state. As shown in the figure, 1 is the fuse box, 2 is the ABS fuse and Configuration 1: headlight... -
Page 41: Abs Operation And Maintenance Instructions
of failure. If a bulb of different wattage rating is used, ABS wheel speed sensor and ring gear is within the overload of circuit system and premature failure of range from 0.5 to 1.5mm. bulb may be caused. If the ABS wheel speed sensor is damaged, ABS LED light sources are used for the front combination indicator on the dash board will flash and will not lights, rear combination lights and turn signal lights... -
Page 42: Use After Storage
7. Inflate the tire to a suitable tire pressure. Place Warning the motorcycle on top of block, so that the two Gasoline is extremely flammable and may explode tires are off the ground. under certain conditions. Do not smoke or allow 8. -
Page 43: Specifications And Technical Parameters
Specifications and Technical Parameters Size and mass Length..............2080mm Width............... 820mm Height ............1085/1100mm Wheel base............1425mm Engine Model ....two-cylinder, four -stroke, water cooling Bore× stroke ..........61.0×42.7mm Actual displacement..........249.6cm Maximum power ........23.5KW/11000r/min Maximum torque ........21.2N.m/9000r/min Ignition method ............ECU Electrically controlled ignition compression ratio ..12:1 Starting method........
