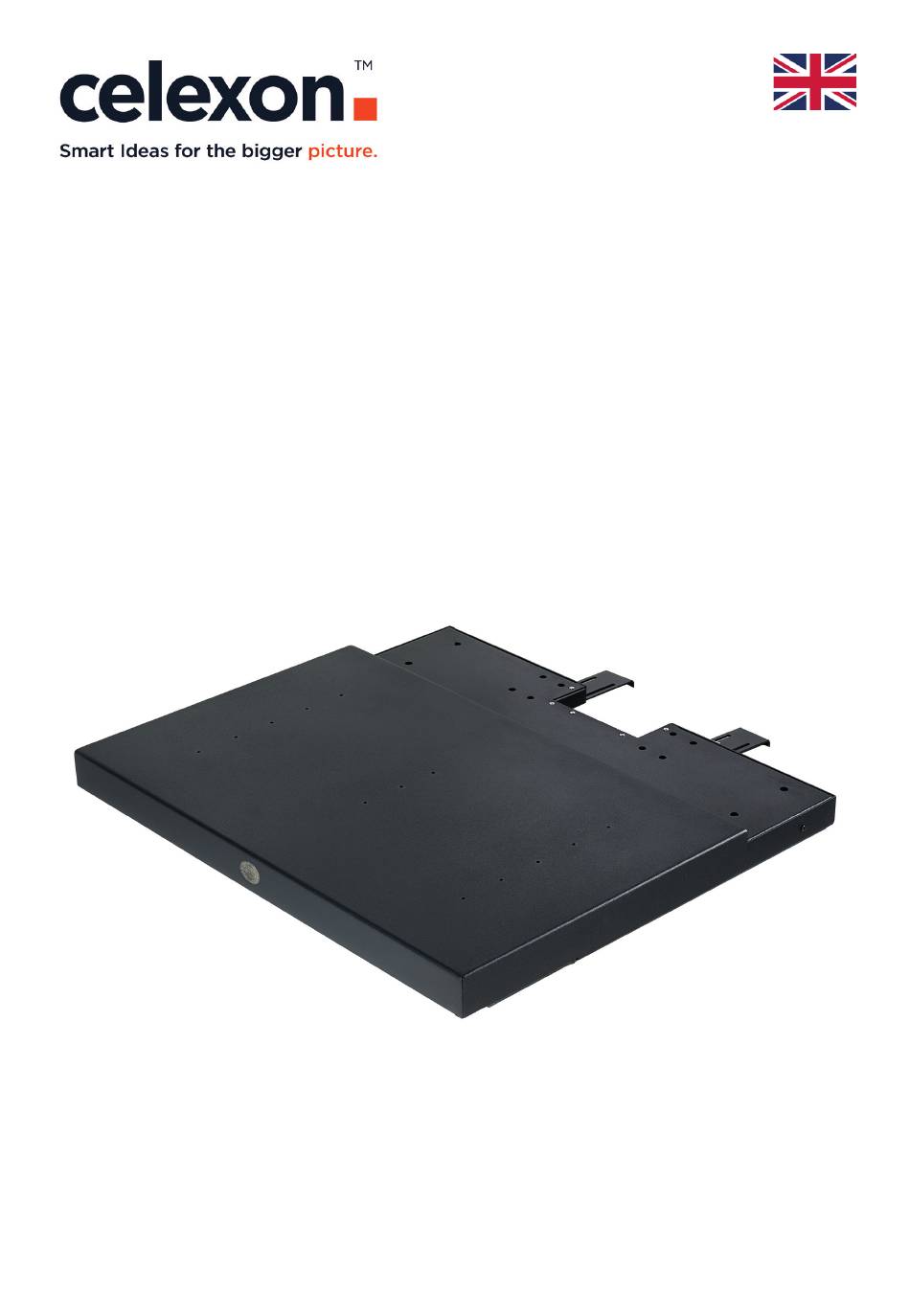

- Page 1 User Manual celexon electric laser TV shelf Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting or operating this product. Please keep these instructions for future reference. Version: 32424_062...
- Page 2 Immediately contact the dealer from whom you purchased the product or celexon directly (Web: www.celexon.co.uk, Mail: info@celexon.co.uk) for further information.
- Page 3 Also, incorrect installation or use may void the warranty. • If you are unsure about the use of the product, please contact your qualified per- sonnel, your dealer or celexon directly (Web: www.celexon.co.uk, Mail: info@celexon. co.uk). • Technical changes and errors expected.
-
Page 4: Technical Data
IN THE BOX 1x Radio remote control 1x Power cable 8x M5x35 wall screws 8x M4x6 combination screws 4x Foam rubber adhesive 1x Trigger cable 1x USB trigger cable 2x Mounting brackets pads (2,5 mm to 3,5 mm) 8x Wall plugs 1x Installation guide TECHNICAL DATA Voltage:... -
Page 5: Product Overview
PRODUCT OVERVIEW Logo cycle button Trigger input DC 5 - 12 V Trigger output DC 5 - 12 V Power connection Platform/ housing Mounting bracket Rear of shelf: Trigger input Rear of projector: IN AC220 V HDMI USB 2.0 50 Hz Trigger connection... - Page 6 DIMENSIONS Front view: Side view: 620 mm 395 mm 57 mm Top view: 620 mm...
-
Page 7: Assembly - Method
ASSEMBLY - METHOD 1 Switch on the appliance and extend the mobile pull-out until the installati- on holes are visible. Ensure that the pull-out is positioned on a surface that offers sufficient space to the front to prevent it from falling. Slide the two mounting brackets into the recesses at the rear of the pull- out unit, with the 4 mounting holes pointing upwards. - Page 8 ASSEMBLY - METHOD 2 Switch on the appliance and extend the mobile pull-out until the installati- on holes are visible. Ensure that the pull-out is positioned on a surface that offers sufficient space to the front to prevent it from falling. Slide the two mounting brackets into the recesses at the rear of the pull- out unit, with the 4 mounting holes pointing downwards.
-
Page 9: Start-Up And Operation
START-UP AND OPERATION Insert the plug into the socket and make sure the voltage is correct (220- 230 V). Programming the remote control: Note: The remote control is already paired at the factory. No pairing is neces- sary. If you need to re-pair the remote control, then follow the instructions below. Within 10 seconds of connecting the device to the power supply, press the ‘In’... - Page 10 SETTING THE STOP POINTS WITH THE REMOTE CONTROL Method for setting the end position in the extended state: Use a paper clip to press the programming button on the back of the re- mote control. The LED lights up. Press the ‘Out’ button on the remote control, the pull-out will extend. Press the ‘Stop’...
- Page 11 OPERATION ON THE PLATFORM Manual control via the cycle button on the front follows this operating scheme: OPEN-STOP-CLOSE-STOP-OPEN etc. Each press of the button triggers the next function in the cycle. SETTING THE STOP POINTS WITH CYCLE BUTTON The method for setting the end position in the extended state: Press and hold the cycle button for 5 seconds, the buzzer will „beep“...
- Page 12 Gutenbergstraße 2, 48282 Emsdetten, DE Product name: celexon electric laser TV shelf Hereby celexon Europe GmbH declares that the celexon electric laser TV shelf complies with the directive 2014/53/EU. The EU declaration of conformity can be downloaded from the following address: www.celexon.com/zertifikate The symbol indicates the separate collection of electrical and elec- tronic devices in EU countries.
