Summary of Contents for Celexon INF200

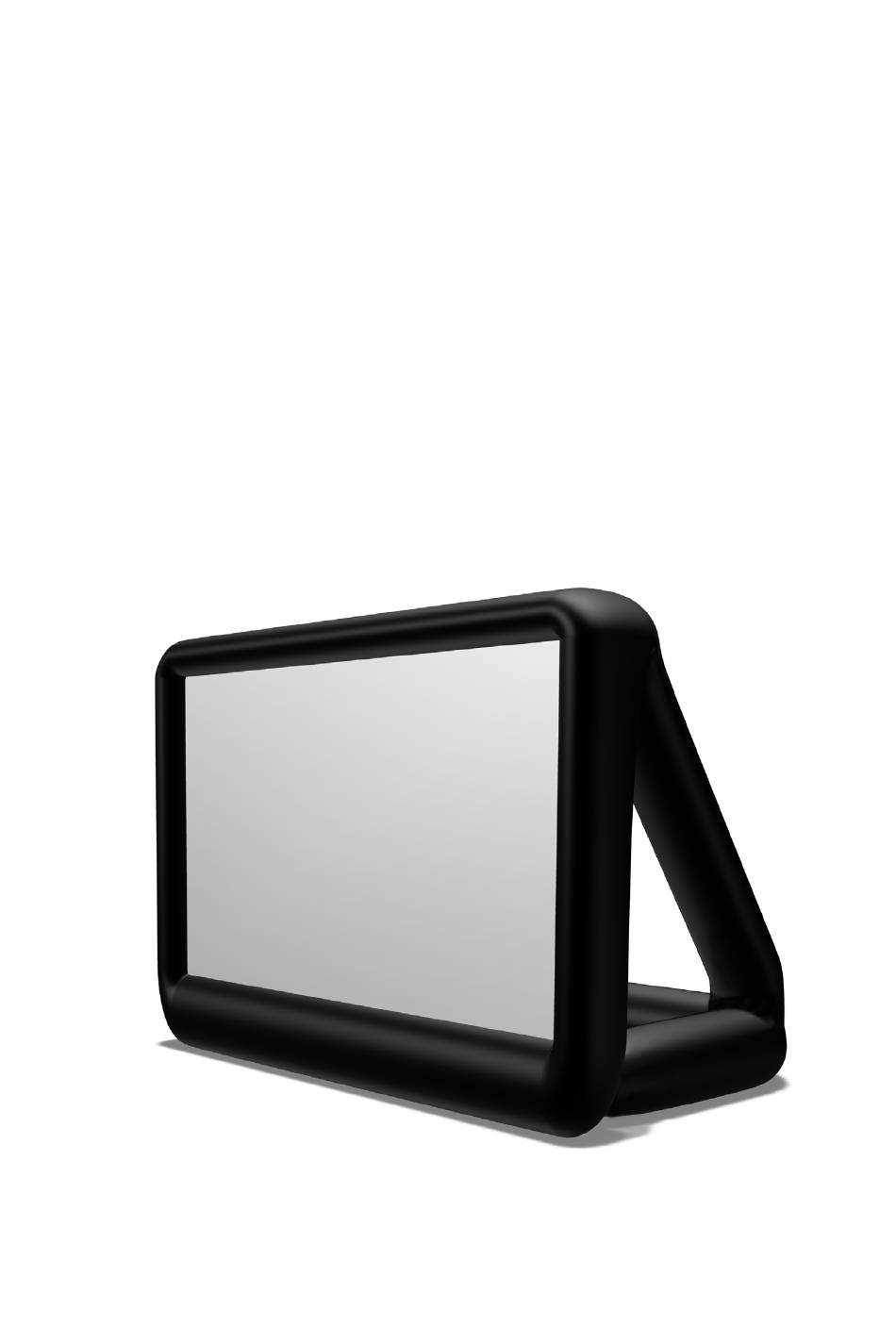

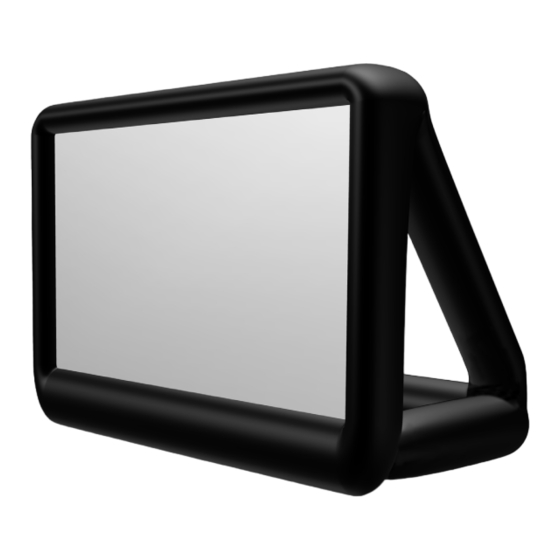

- Page 1 Operation manual celexon inflatable outdoor projector-screen INF200 Thank you for choosing a quality product from celexon. Please read the instructions carefully before using the screen and keep them safe.
- Page 2 Die Konformitätserklärung und die zu diesem Produkt gültigen Zertifizierungen sind auf unserer Webseite http://de.celexon.com einsehbar. At www.celexon.co.uk you can find the latest version of the manual and download it simply by searching the identification number “CX1007” in the search field.
-
Page 3: Safety Instructions
Safety instructions • Do not start with the assembly before you have read and understood the entire operating instructions. • Place the canvas on a level surface. This must be free of pointed objects; these could cause irreparable damage to the screen! •... -
Page 4: Care Instructions
Care instructions • NEVER clean the screen with alcohol or other cleaning agents containing solvents. Use only a soft, clean, non-staining cloth with a mild soapy solution, any dirt can be removed from the surface. • Avoid contact with pointed or sharp objects as these could damage the pro- jection cloth or frame. - Page 5 Construction It is recommended to construct the screen with a second person. Step 1: Place and spread the frame of the screen (a) onto a flat surface. Make sure that the front faces upwards (hook-up points upwards) and the zipper on the lower frame is closed beforehand .
- Page 6 Construction Step 3: In the same way, continue with the two shorter sides and end with the bottom of the screen. As a result, the velcro should be fastened to the inside of the frame right the way around. It is essential that the velcro is spread evenly right the way around the frame to provide equal tension all over the screen thus providing the optimal flatness of the material.
- Page 7 Construction Figure 2: Display screen and electric pump Danger: Make sure that the frame is not twisted and the the pump does not tip over during the inflation process. If necessary, support the frame during the process. Step 5: Use the tensioning accessory (d) to protect the screen against wind and other elements.
- Page 8 Disassembly Step 1: Turn off the electric pump, open the zipper of the frame and pull the screen back- wards with two people. The frame should then tilt backwards and the cloth surface should point upwards. Step 2: Disconnect the pump from the power source, then remove the air hose and the pegs from the ground.
-
Page 9: General Information
General information • If you can not achieve a satisfactory flatness with the projection cloth, you can correct this by loosening the velcro strips and repositioning the fabric accor- dingly. Depending on the temperature, the surface of the frame can be larger than the projection cloth. - Page 10 EU Directive on Electromag- netic Compatibility (EMC) and the EU Low Voltage Directive (LVD). A copy of the declaration of conformity can be found at www.celexon.de -> Service -> Certificates. celexon Germany GmbH & Co. KG The symbol indicates the separate withdrawal of electrical and electrical electronic devices in EU countries.
