8 Mechanical Information
The Arduino Due is a microcontroller board measuring 101.52 mm x 53.3 mm, featuring two USB-B connectors and
a big quantity of GPIO pins headers.
8.1 Board Dimensions
The Arduino Due board outline and mounting holes dimensions are shown in the figure below; all the dimensions
are in mm.

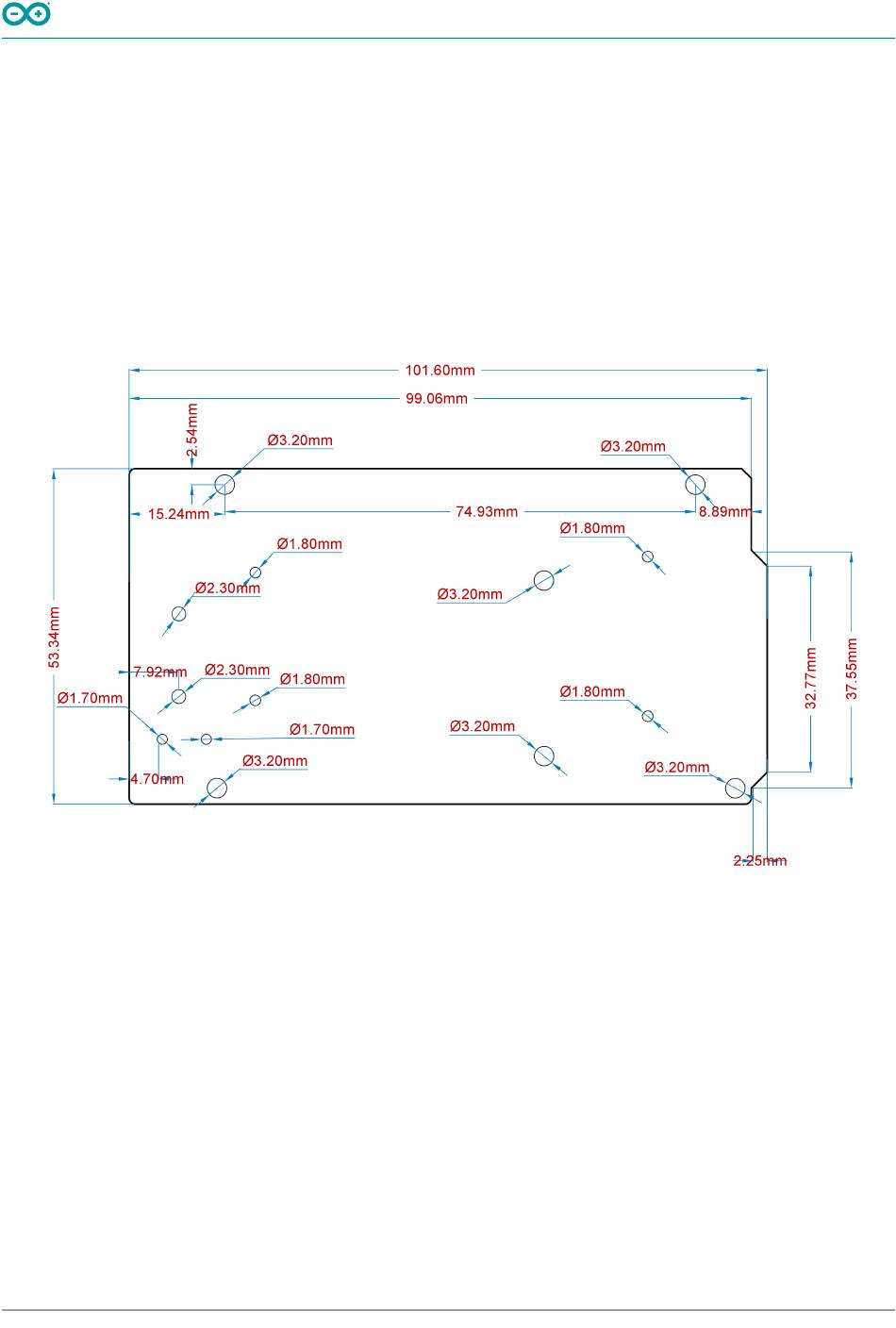

Arduino Due Mounting Holes And Board Outline
