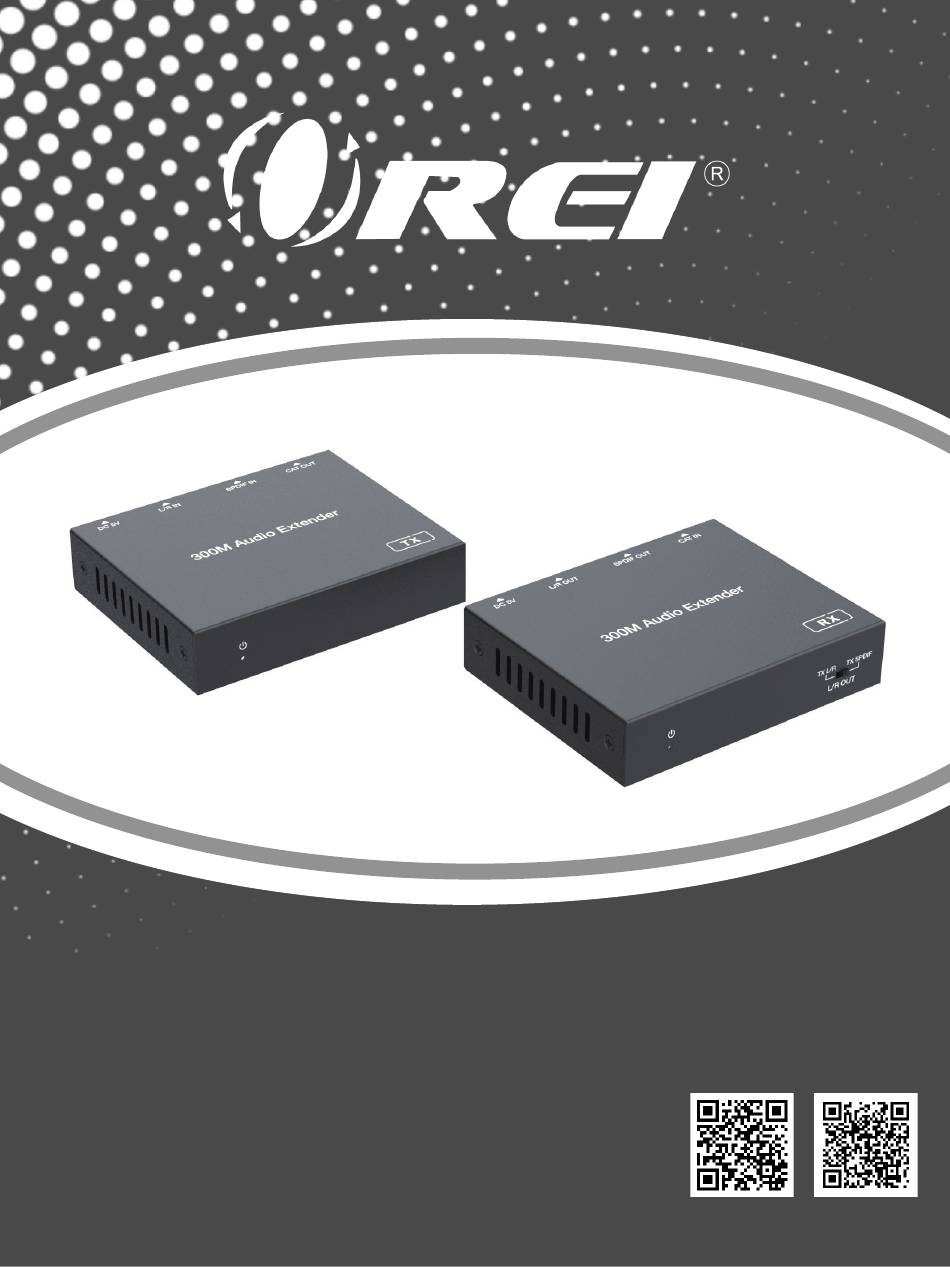

- Page 1 DA-EX1000-K Audio Extender over CAT Follow us on Youtube and Facebook Cable (300m) U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction
Introduction This Audio Extender can transmit digital optical and analog audio signals concurrently up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT5E/6 cable. The digital optical audio is directly passed from transmitter to receiver. The analog audio output on receiver is selectable from the digital optical or the analog audio signal from transmitter. -
Page 5: Features
Features Extend optical fiber and analog audio signals up to a distance of 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT cable Audio formats support: LPCM, DTS, Dolby Digital and Dolby Digital Plus Support audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution Built-in DAC (Digital to Analog Converter), the analog audio output port can output digital audio or analog audio through the audio selection... -
Page 6: Specifications
Specifications Technical Bitrate over Distance 192kHz - 100m, 96kHz - 150m, 48kHz - 300m Supported Audio Optical: All audio formats, including LPCM2.0, LPCM5.1, Formats Dolby Digital2/5.1CH Analog: PCM 2.0 Sample Rates 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) -
Page 7: Operation Controls And Functions
Operation Controls and Functions Transmitter Panel CAT OUT SPDIF IN L/R IN DC 5V Name Function Description POWER LED When the transmitter is powered on, the power LED will be on. CAT OUT Connect to the CAT IN port of the receiver with CAT5E/6 cable. Optical fiber audio input port, connected to an optical digital audio SPDIF IN source device with Optical Toslink cable. - Page 8 Operation Controls and Functions Receiver Panel CAT IN SPDIF OUT L/R OUT DC 5V TX L/R TX SPDI F L/ R OUT Name Function Description POWER LED When the receiver is powered on, the power LED will be on. Use this switch to select audio source for the L/R OUT port. Switch to “TX L/R”: The L/R OUT port outputs the analog audio L/R OUT audio from the L/R IN port of the transmitter.
-
Page 9: Application Example
Application Example L/R IN CAT OUT SPDIF IN DC 5V Transmitter USB Power Cable CAT5E/6 Cable DVD or Blu-ray Player L/R OUT CAT IN SPDIF OUT DC 5V Receiver Amplifier 2.0 Speaker page 9... - Page 10 Audio Extender over CAT Cable (300m) www.orei.com © 2023...
