- Page 1 CUTTING EDGE WELDING USER’S MANUAL Digitally Controlled IGBT Inverter Technology MMA and DC TIG Welding Power Sources HD 170 MULTIARC HD 220 MULTIARC...
- Page 2 Introduction First of all, thank you for choosing an IWELD welding or cutting machine! Our mission is to support your work with the most up-to-date and reliable tools both for DIY and industrial application. We develop and manufacture our tools and machines in this spirit.
-
Page 3: Fire Hazard
WARNING! Welding is a dangerous process! The operator and other persons in the working area must follow the safety instructions and are obliged to wear proper Personal Protection Items. Always follow the local safety regulations! Please read and understand this instruction manual carefully before the installation and operation! •... - Page 4 The main parameters HD 170 MULTIARC HD 220 MULTIARC Art. Nr. 8HD170MTARC 8HD220MTARC IGBT IGBT Inverter Type Display Plastic Case Arc Force Adjustable Arc Force Hot start Anti Stick ...
-
Page 5: Installation
Installation 2-1. Power Connection 1. Each machine has its own primary power cable, it must be connected to the mains through a grounded power outlet on the right! 2. Power cable must be plugged into an appropriate grounded/earthed power outlet! 3. -
Page 6: Operation

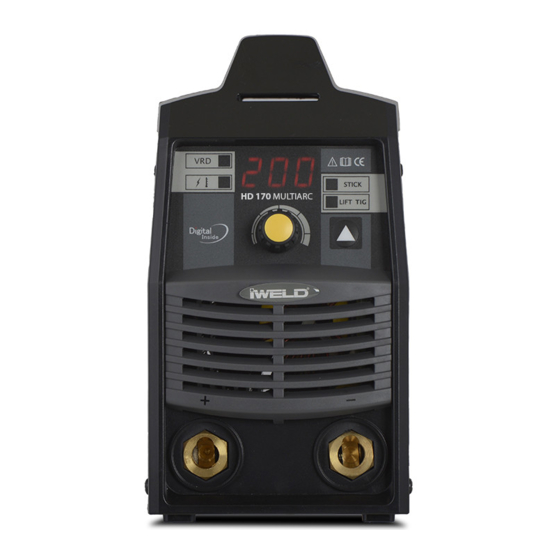

Operation Control Panel Functions 1 VRD indicator 2 Overvoltage/over heating indicator 3 Multifunctional data adjusting knob Under MMA mode, press the knob to choose Current, electrode type, Hot Start current, Hot Start time and Arc Force current parameters. Turn the knob to set the parameter value. 4 STICK/LIFT TIG and VRD switch key Press and hold the switch key for 5s, it can open or close the VRD function. - Page 7 3.2 Operation instruction 3.2.1 The starting up display Switch on the welding power source, the front panel displays as Chart 1. After the [Welding current display] (or press any key or knob on front panel) fl ashes for 5 seconds, the machine enters into the welding mode that saved in the last shutdown.
- Page 8 H St A r F Display Description Value Electrode style E13: rutile electrode E18: basic electrode E10: cellulose electrode Hot start current 0~10 Hot start time 0~10 Arc Force -10~10 3.2.3 Operation instruction under LIFT TIG mode. a) When welding stops, press the [STICK/LIFT TIG] and [VRD] switch key quickly, the LIFT TIG indica- tor lights up, and it turns into LIFT TIG mode, the front panel displays as Chart 3.
- Page 10 Manufacturer: IWELD Ltd. 2314 Halásztelek II. Rákóczi Ferenc street 90/B Tel: +36 24 532-625 info@iweld.hu www.iweld.hu HD 170 MULTIARC Item: HD 220 MULTIARC Digitally Controlled IGBT Inverter Technology MMA and DC TIG Welding Power Source Applied Rules (1): EN 60204-1:2005...
