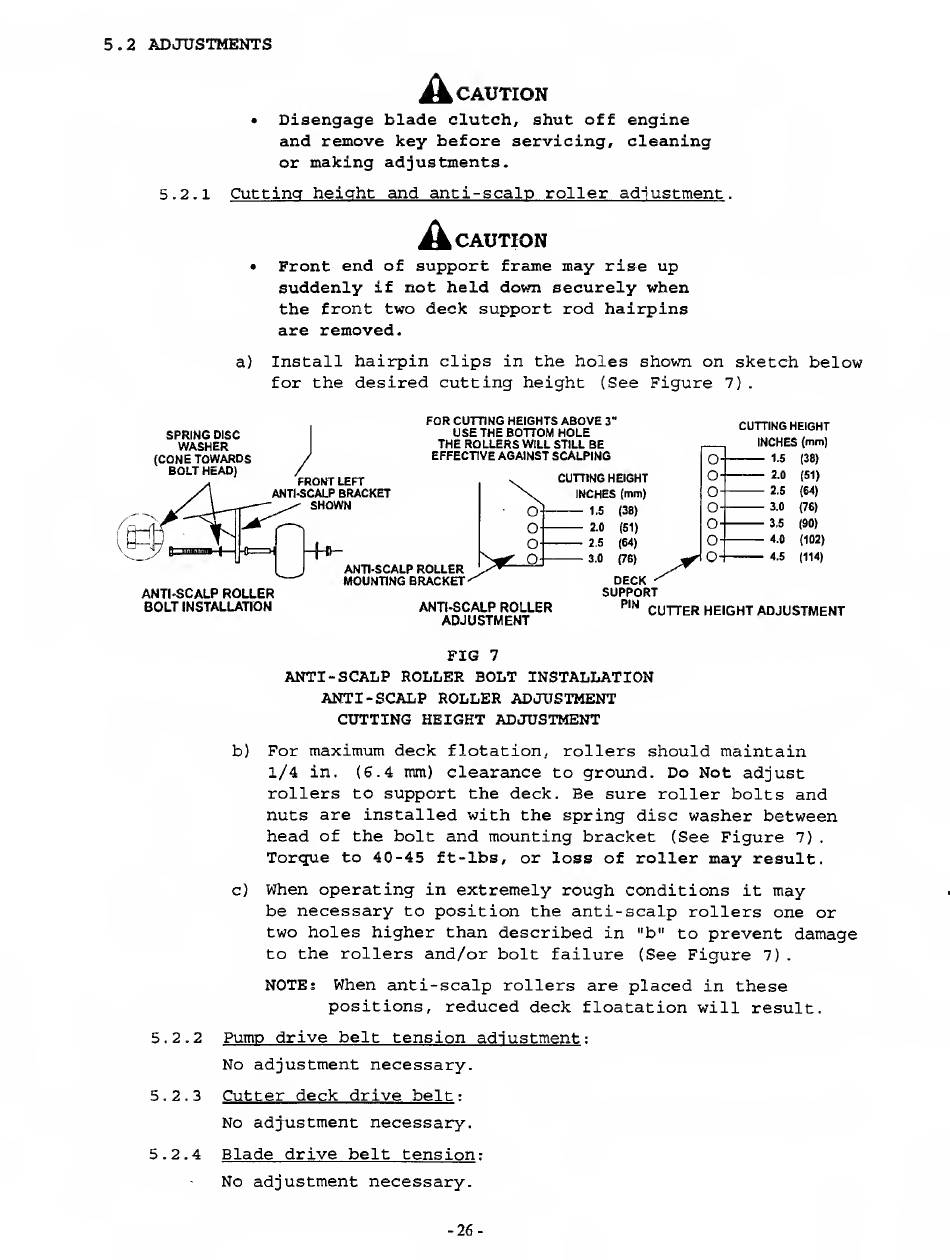

5.2 ADJUSTMENTS
A CAUTION
• Disengage blade clutch, shut off engine
and remove key before servicing, cleaning
or making adjustments.
5.2.1 Cutting height and anti-scalp roller adjustment.
A CAUTION
• Front end of support frame may rise up
suddenly if not held down securely when
the front two deck support rod hairpins
are removed.
a) Install hairpin clips in the holes shown on sketch below
for the desired cutting height (See Figure 7).
SPRING DISC
WASHER
(CONE TOWARDS
/
FOR CUTTING HEIGHTS ABOVE 3*
USE THE BOTTOM HOLE
THE ROLLERS WILL STILL BE
EFFECTIVE AGAINST SCALPING
FRONT LEFT
ANTI-SCALP BRACKET
SHOWN
-H-
ANTI-SCALP ROLLER
o-
o
CUTTING HEIGHT
INCHES (mm)
ANTI-SCALP ROLLER
BOLT INSTALLATION
MOUNTING BRACKET
ANTI-SCALP ROLLER
ADJUSTMENT
1.5
2.0
2.5
3.0
(
38
)
(51)
(
64
)
(
76
)
CUTTING HEIGHT
r\.
_
LJ
O-
Kj
O-
o-
1.5
2.0
2.5
3.0
3.5
4.0
4.5
(
38
)
(
51
)
(
64
)
(
76
)
(
90
)
(
102
)
(
114
)
DECK
SUPPORT
PIN CUTTER HEIGHT ADJUSTMENT
FIG 7
ANTI-SCALP ROLLER BOLT INSTALLATION
ANTI-SCALP ROLLER ADJUSTMENT
CUTTING HEIGHT ADJUSTMENT
b) For maximum deck flotation, rollers should maintain
1/4 in. (6.4 mm) clearance to ground. Do Not adjust
rollers to support the deck. Be sure roller bolts and
nuts are installed with the spring disc washer between
head of the bolt and mounting bracket (See Figure 7).
Torque to 40-45 ft-lbs, or loss of roller may result.
c) When operating in extremely rough conditions it may
be necessary to position the anti-scalp rollers one or
two holes higher than described in "b" to prevent damage
to the rollers and/or bolt failure (See Figure 7).
NOTEs When anti-scalp rollers are placed in these
positions, reduced deck floatation will result.
5.2.2 Pump drive belt tension adjustment:
No adjustment necessary.
5.2.3 Cutter deck drive belt:
No adjustment necessary.
5.2.4 Blade drive belt tension:
No adjustment necessary.
-
