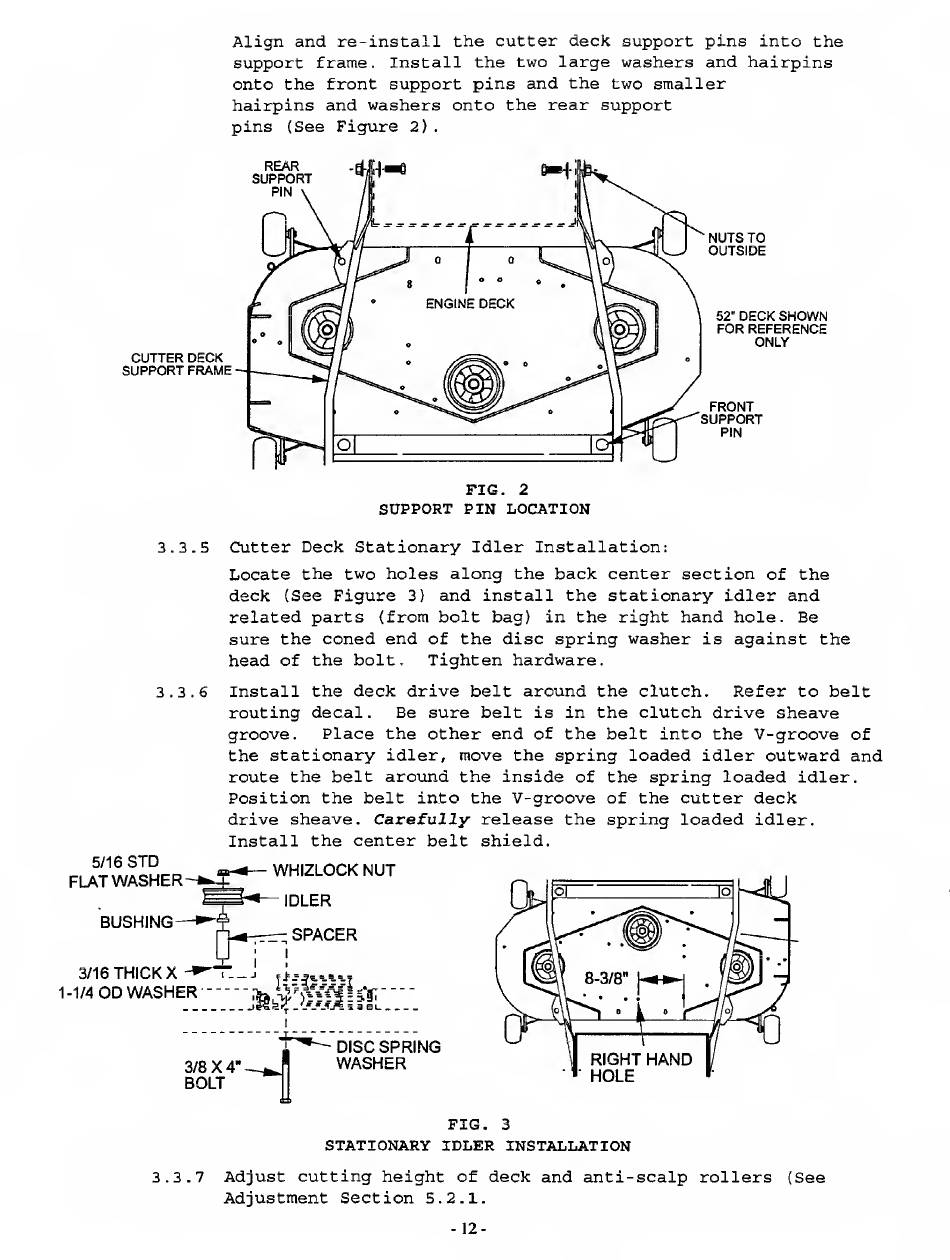

Align and re-install the cutter deck support pins into the
support frame. Install the two large washers and hairpins
onto the front support pins and the two smaller
hairpins and washers onto the rear support
pins (See Figure 2).
CUTTER DECK
SUPPORT FRAME
FIG. 2
SUPPORT PIN LOCATION
3.3.5 Cutter Deck Stationary Idler Installation:
Locate the two holes along the back center section of the
deck (See Figure 3) and install the stationary idler and
related parts (from bolt bag) in the right hand hole. Be
sure the coned end of the disc spring washer is against the
head of the bolt. Tighten hardware.
3.3.6 Install the deck drive belt around the clutch. Refer to belt
routing decal. Be sure belt is in the clutch drive sheave
groove. Place the other end of the belt into the V-groove of
the stationary idler, move the spring loaded idler outward and
route the belt around the inside of the spring loaded idler.
Position the belt into the V-groove of the cutter deck
drive sheave.
Carefully
release the spring loaded idler.
Install the center belt shield.
STATIONARY IDLER INSTALLATION
3.3.7 Adjust cutting height of deck and anti-scalp rollers (See
Adjustment Section 5.2.1.
