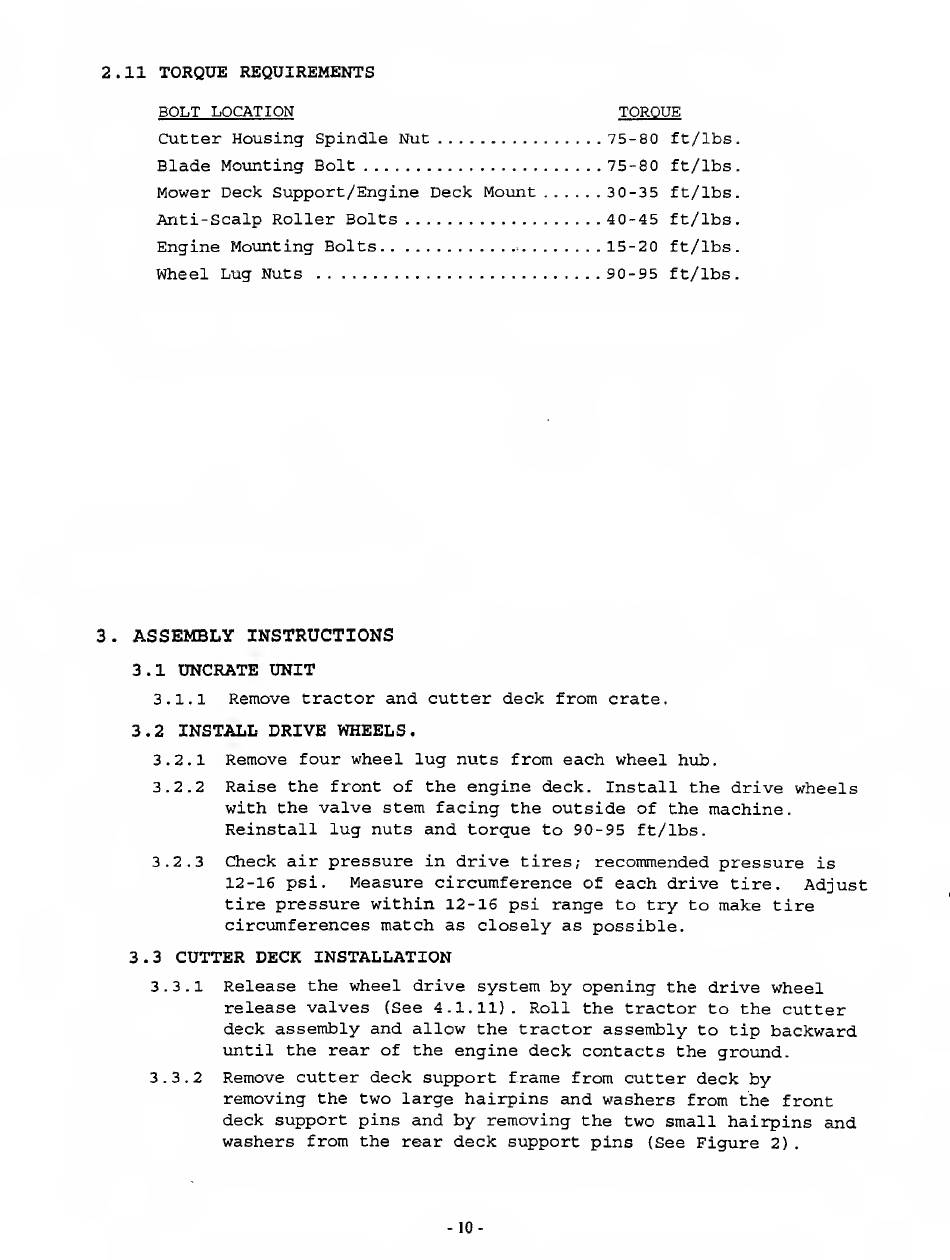

2.11 TORQUE REQUIREMENTS
BOLT LOCATION TORQUE
Cutter Housing Spindle Nut. 75-80 ft/lbs.
Blade Mounting Bolt. 75-80 ft/lbs.
Mower Deck Support/Engine Deck Mount. 30-35 ft/lbs.
Anti-Scalp Roller Bolts. 40-45 ft/lbs.
Engine Mounting Bolts.-.15-20 ft/lbs.
Wheel Lug Nuts . 90-95 ft/lbs.
3. ASSEMBLY INSTRUCTIONS
3.1 UNCRATE UNIT
3.1.1 Remove tractor and cutter deck from crate.
3.2 INSTALL DRIVE WHEELS.
3.2.1 Remove four wheel lug nuts from each wheel hub.
3.2.2 Raise the front of the engine deck. Install the drive wheels
with the valve stem facing the outside of the machine.
Reinstall lug nuts and torque to 90-95 ft/lbs.
3.2.3 Check air pressure in drive tires; recommended pressure is
12-16 psi. Measure circumference of each drive tire. Adjust
tire pressure within 12-16 psi range to try to make tire
circumferences match as closely as possible.
3.3 CUTTER DECK INSTALLATION
3.3.1 Release the wheel drive system by opening the drive wheel
release valves (See 4.1.11). Roll the tractor to the cutter
deck assembly and allow the tractor assembly to tip backward
until the rear of the engine deck contacts the ground.
3.3.2 Remove cutter deck support frame from cutter deck by
removing the two large hairpins and washers from the front
deck support pins and by removing the two small hairpins and
washers from the rear deck support pins (See Figure 2).
-10-
