3.2 Built-in hobs
Only use the built-in hobs after you assemble
the hob into correct built-in units and work
surfaces that align to the standards.

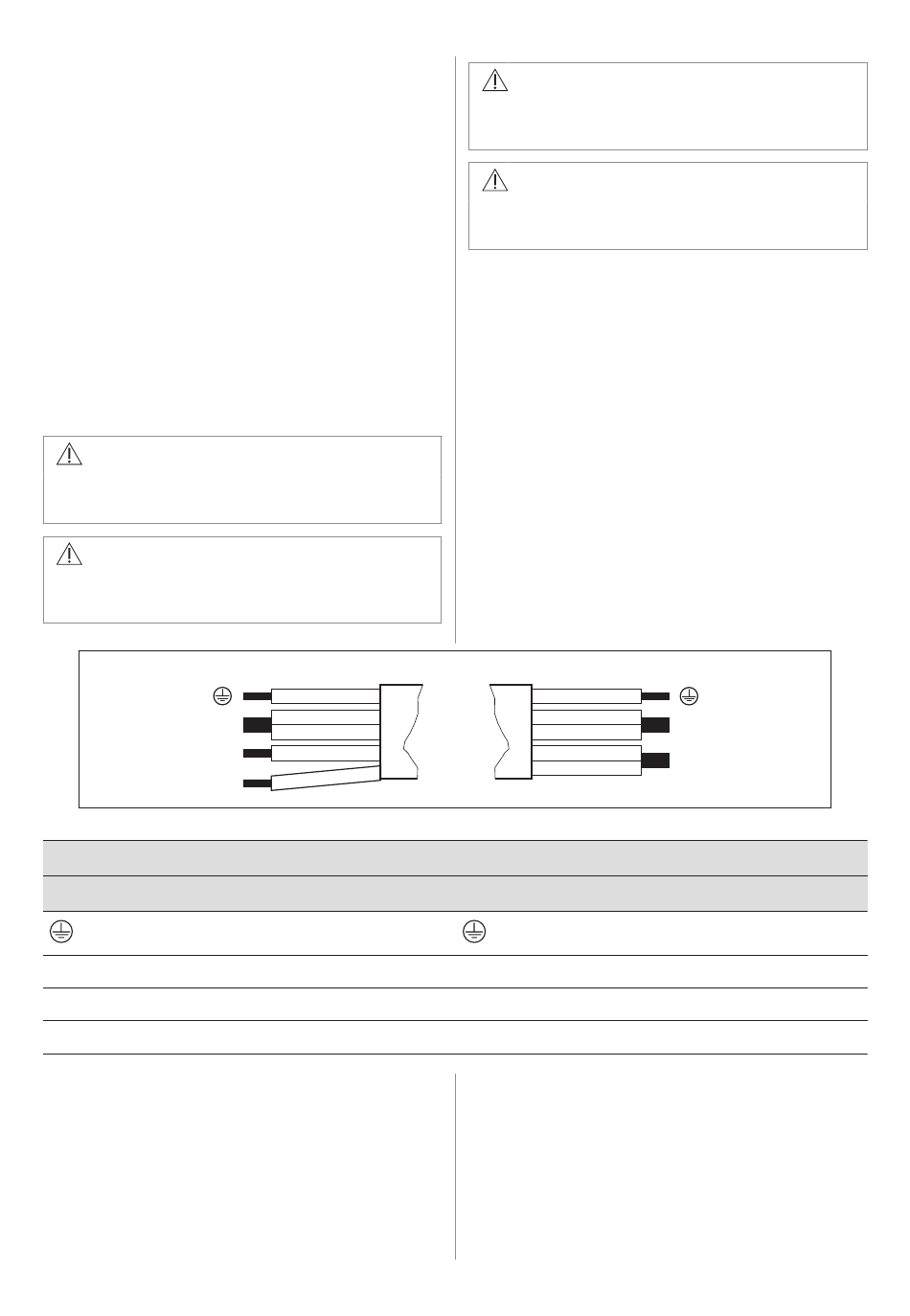

3.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable, use
the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. A single wire must have a minimal
cross section in accordance with the table
below. Speak to your local Service Centre.
The connection cable may only be
replaced by a qualified electrician.
WARNING!
All electrical connections must be made
by a qualified electrician.
CAUTION!
Connections via contact plugs are
forbidden.
N
L1
L2
Two-phase connection: 400 V2N~
5x1,5 mm² or 4x2,5 mm²
N
L1
L2
3.4 Attaching the seal - Integrated
installation
1. Clean the rabbets in the worktop.
2. Cut the supplied 3x10 mm seal stripe into
four stripes. The stripes must have the
same length as the rabbets.
400V2N~
Green - yellow
Blue and blue
Black
Brown
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.
CAUTION!
Do not connect the cable without cable
end sleeve.
One-phase connection
1. Remove the cable end sleeve from black
and brown wires.
2. Remove a part of the insulation of the
brown and black cable ends.
3. Connect the ends of black and brown
cables.
4. Apply a new wire end sleeve on the
shared wire's end (special tool required).
220-240 V~
One-phase connection: 220 - 240 V~
5x1,5 mm² or 3x4 mm²
N
L
3. Cut the ends of the stripes at an angle of
45°. They should fit in the corners of the
rabbets accurately.
4. Attach the stripes to the rabbets. Do not
stretch the stripes. Do not bond the ends
of the stripes one over the other.
N
L
Green - yellow
Blue and blue
Black and brown
