After you assemble the hob, seal the
remaining gap between the glass ceramic
and the worktop with silicone. Make sure the
silicone does not get under the glass ceramic.
3.5 Attaching the seal - On-top
installation
1. Clean the worktop around the cut out
area.
2. Attach the supplied 2x6 mm seal stripe to
the lower edge of the hob, along the outer
edge of the glass ceramic. Do not stretch
it. Make sure that the ends of the seal
stripe are located in the middle of one
side of the hob.
3. Add some millimetres to the length when
you cut the seal stripe.
4. Join the two ends of the seal stripe
together.

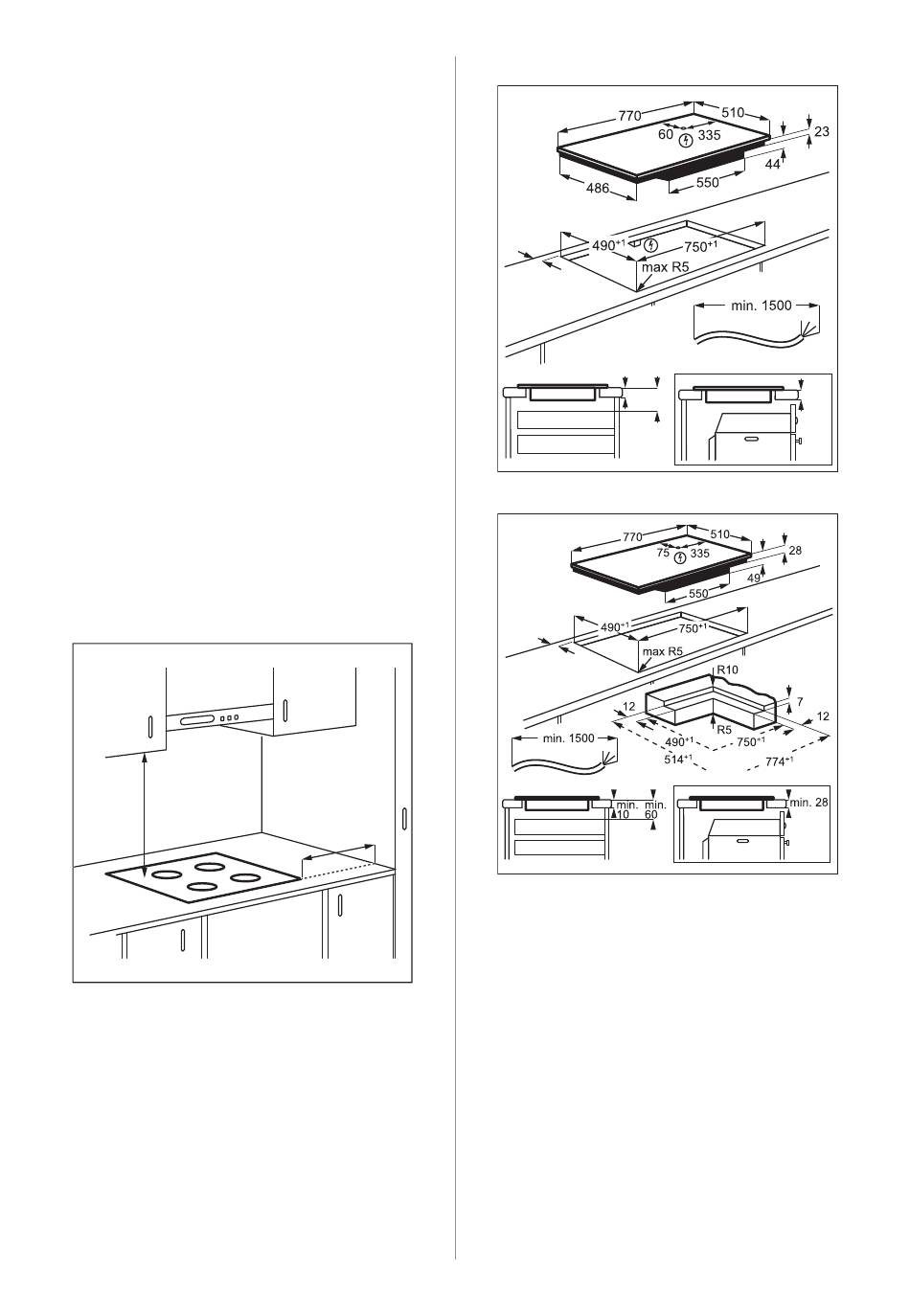

3.6 Assembly
If you install the hob under a hood, please
see the installation instructions of the hood
for the minimum distance between the
appliances.
min.
500mm
If the appliance is installed above a drawer,
the hob ventilation can warm up the items
stored in the drawer during the cooking
process.
8
ENGLISH
ON-TOP INSTALLATION
INTEGRATED INSTALLATION
min.
50mm
min. 50
min.
min.
10
60
min. 50
min.
28
