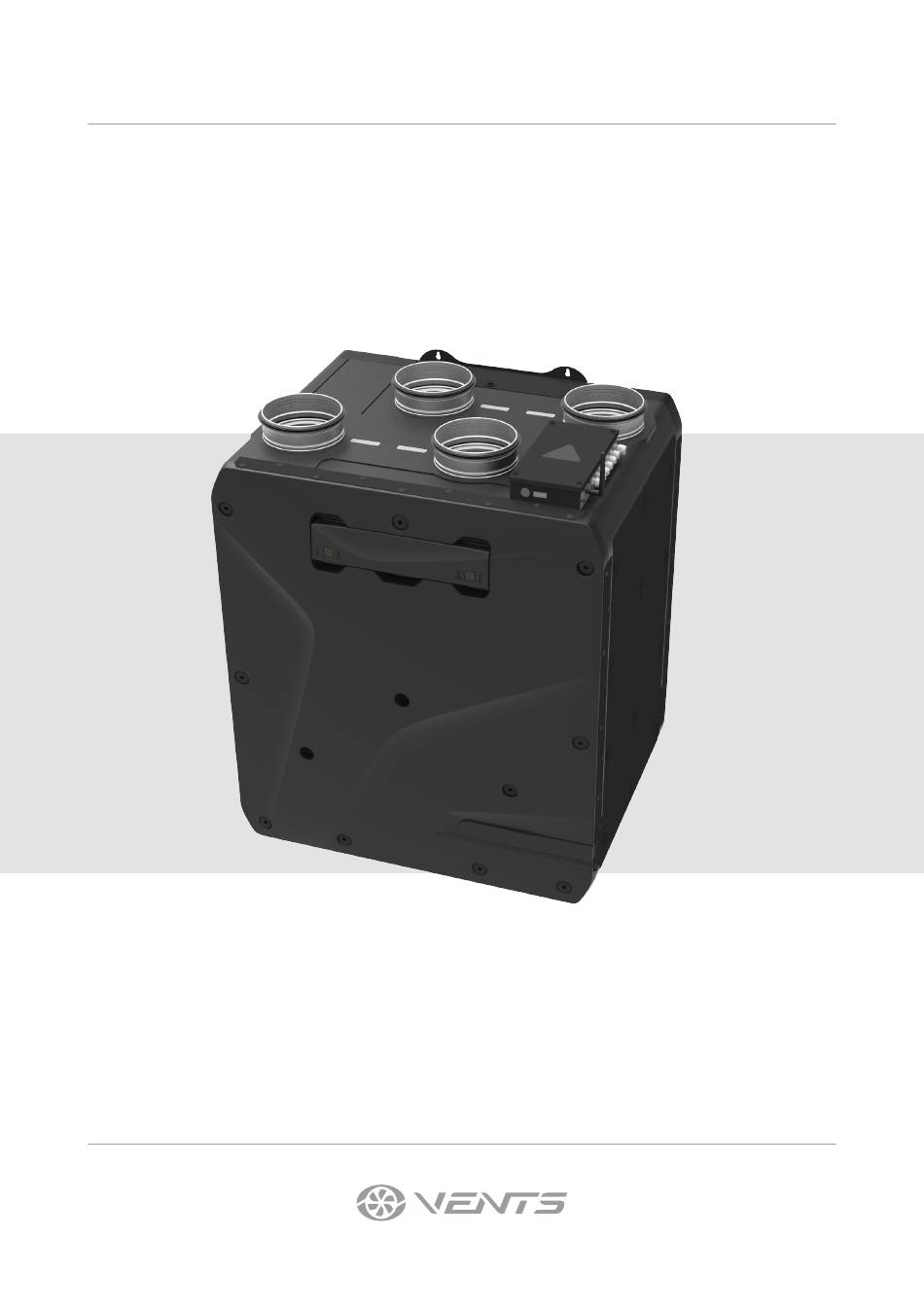

- Page 1 USER’S MANUAL Enave 350/351 V Enave-T 350/351 V Enave 350/351 VE Enave-T 350/351 VE Air handling unit...
-
Page 2: Table Of Contents
Enave(-T) V CONTENTS Contents ......................................2 Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Mounting and set-up .................................. 10 Connection to power mains ..............................14 Technical maintenance ................................16 Troubleshooting ..................................... -
Page 3: Safety Requirements
SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit. - Page 4 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 5: Purpose
PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
Enave(-T) V TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air. - Page 7 DIMENSIONS [mm] Enave(-T) 350 V Ø 160x4 Enave(-T) 351 V Ø 160x4 www.ventilation-system.com...
- Page 8 Enave(-T) V DESIGN AND OPERATING PRINCIPLE The unit operation is as follows: warm extract air from the room flows into the unit and is cleaned with the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows into the unit, where it is cleaned with the supply filter.
- Page 9 Unit operation modes Heat recovery Warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows through the air duct into the unit, where it is cleaned by the supply filter.
-
Page 10: Mounting And Set-Up
Enave(-T) V MOUNTING AND SET-UP Installing and connecting the humidity sensor and CO sensor The humidity s C02 sensors a e not included in the delivery set, they are ordered separately. Install the sensors onto the appropriate fixation located on the walls of the unit’s casing. Connect the sensors to the appropriate connectors Humidity sensor Carbon dioxide sensor (CO2) - Page 11 Unit design To ensure comfortable installation and provide space for accessing the unit, left and right design types of the unit are designed. Enave(-T) V L Enave(-T) V R A – exhaust air, B – intake air, C – supply air, D – extract air Minimum distances to surfaces 800 mm The surface for unit mounting must be smooth.
- Page 12 Enave(-T) V Unit wall surface mounting Use dowels and screws (not included in the delivery set) to secure the unit on the wall. Insert the dowels into the wall. Tighten the screws. Hang the unit and use the holes in the mounting brackets in the bottom to secure it. Unit floor mounting Place the unit on the pre-mounted floor supports (minimum 150 mm high) to ensure sufficient access for the drain pipe connection, access to the U-trap and for condensate drainage system installation.
- Page 13 Condensate drainage Enave V heat recovery units require condensate drainage, which occurs by means of the supplied drain pipe. To install the drain pipe, remove the screws and the front panel on the service side of the unit. Remove the heat exchanger lid and take the heat exchanger out.
-
Page 14: Connection To Power Mains
Enave(-T) V CONNECTION TO POWER MAINS ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. • The unit is designed for connection to power mains with the parameters specified in the“Technical data” section. • The unit must be connected to power mains using durable, insulated and heat-resistant conductors (cables, wires). The actual wire cross section selection must be based on the maximum load current, maximum conductor temperature depending on the wire type, insulation, length and installation method. - Page 15 EXTERNAL WIRING DIAGRAM FOR UNITS WITH A14 CONTROL PANEL 12 13 14 15 16 17 +U Rx Tx GND C NO PK SM-L SM-N Р1 PK1* SM1* SM2* CO2* Designation Name Type of contact Cable Note External control panel 4х0.25mm CO2* 2х0.25 Carbon dioxide sensor (CO2)
-
Page 16: Technical Maintenance
Enave(-T) V TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance. Clogged filters increase air resistance in the system and reduce supply air volume. The filters require cleaning not less than 3-4 times per year. -
Page 17: Troubleshooting
3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft cloth, brush, or using compressed air. Do not use water, aggressive solvents, or sharp objects as they may damage the impeller. -
Page 18: Manufacturer's Warranty
Enave(-T) V MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 19: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 V279EN-01...
