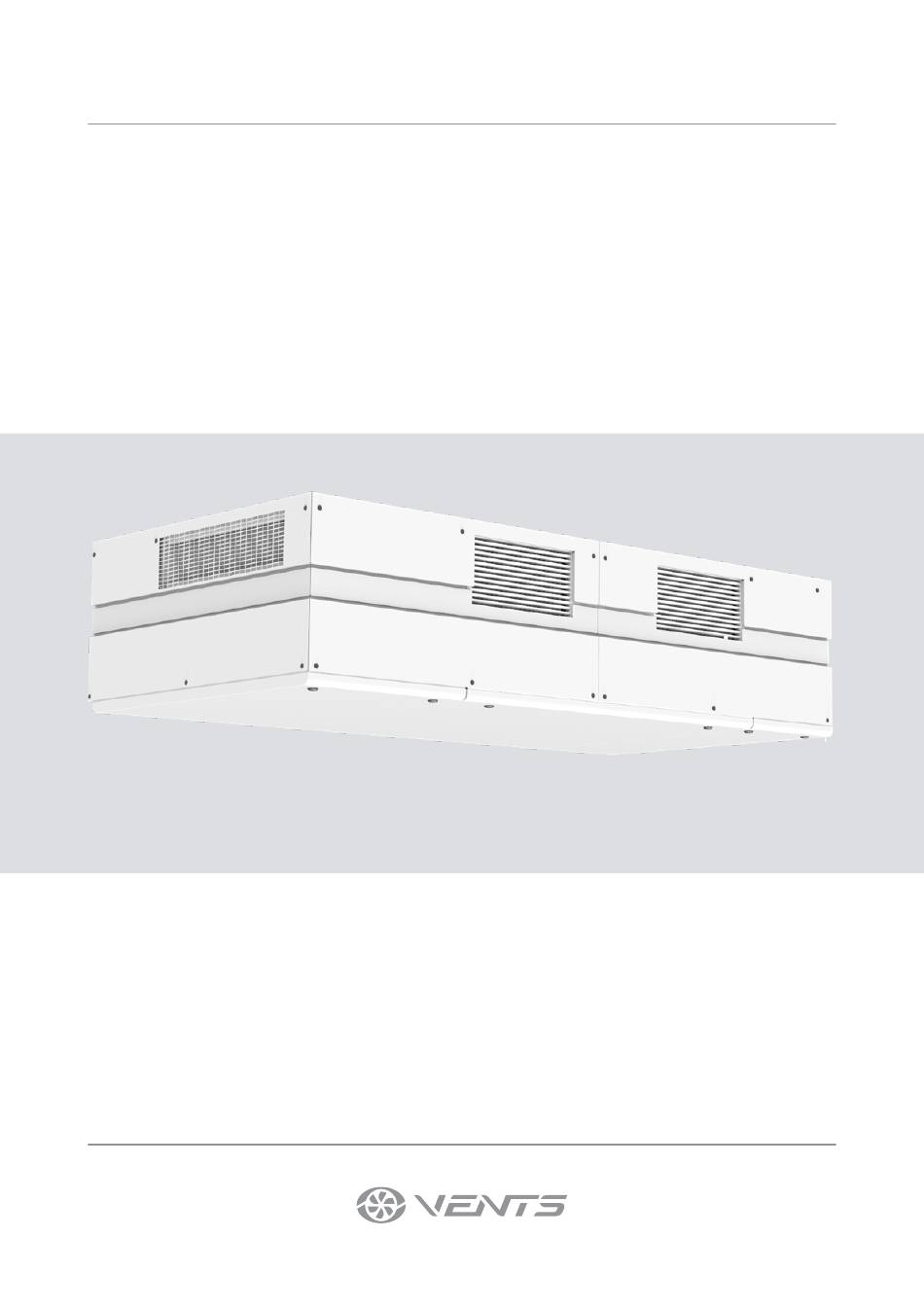

- Page 1 USER'S MANUAL DVUT 1000 PB EC V.2 DVUT 1000 PBE EC V.2 DVUT 1000 PBE2 EC V.2 Single-room air handling unit...
-
Page 2: Table Of Contents
DVUT 1000 PB EC V.2 CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 10 Connection to power mains ..............................18 Control ......................................... - Page 3 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 4: Purpose
DVUT 1000 PB EC V.2 PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 5: Technical Data
TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air. - Page 6 DVUT 1000 PB EC V.2 OVERALL AND CONNECTING DIMENSIONS [mm] 2327 1295 1180 2xØ11 1159 2xØ11 1163 1763 www.ventilation-system.com...
-
Page 7: Design And Operating Principle
DESIGN AND OPERATING PRINCIPLE Warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the exhaust fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter. Then the air flows through the heat exchanger and is directed to the room with the supply fan. - Page 8 DVUT 1000 PB EC V.2 Service side view DVUT 1000 PB EC DVUT 1000 PBE EC DVUT 1000 PBE2 EC Extract filter Supply filter Exhaust fan Supply fan Heat exchanger ...
- Page 9 Air movement inside the unit www.ventilation-system.com...
-
Page 10: Mounting And Set-Up
DVUT 1000 PB EC V.2 MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WARNING! Before installation operations route necessary cables and wires to the unit mounting place. WARNING! If the overall dimensions of the assembled unit do not allow moving it to the installation site, it is permissible to temporarily disconnect the unit blocks, and then assemble them in the reverse order. - Page 11 After moving the blocks to the installation site, connect the blocks 1, 2, 3. Fasteners for unit mounting are not included in the delivery set and must be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical data section.
- Page 12 DVUT 1000 PB EC V.2 UNIT INSTALLATION Mark the holes using the mounting bracket or template, drill holes for fasteners and through-holes in the wall Ø~350 mm for Ø 315 mm air ducts. Cut the air ducts to the required length, equal to the wall width, +15 mm to fix the unit to the spigots on the room side. From the outside of the room, the air duct must be cut flush with the wall of the building for the installation of ventilation grilles (purchased separately).
- Page 13 Hang and fasten the unit to the ceiling and wall. Install three blocks fixed to each other on the mounting bracket and connect the air ducts to the unit spigots. Fix the unit to the ceiling using L-brackets with anchor bolts. Mount and connect the front block.
- Page 14 DVUT 1000 PB EC V.2 Install the decorative panels. Install the panels in the centre first, then the top and bottom panels. Install the hinged doors. Remove the retaining screws. Hang the doors. Install the retaining screws to prevent the doors from sliding off.
- Page 15 Install the Wi-Fi antenna. CONDENSATE DRAINAGE ARRANGEMENT The unit is equipped with a drain pump for timely removal of condensate from the unit. Connect the flexible hose going from the pump outlet to the sewage system. min 3° min 50 mm Sewage system U-trap (hydraulic lock) WARNING!
- Page 16 DVUT 1000 PB EC V.2 Sensor mounting (not included in the delivery set) The CO , humidity and VOC sensors are installed in the middle block of the unit. For installation, the heat exchangers must be removed. Sensor positioning The CO2 sensor and VOC sensor are fixed on brackets. The humidity sensor is fastened with a threaded rivet. 1 –...
- Page 17 1 – CO2 sensor; 2 – humidity sensor; 3 – VOC sensor. Disassemble the CO2 and VOC sensors according to the manual supplied with them. Connect the sensor to the cable according to the diagram. To do this, the cable must be removed from the terminal block located near the corresponding bracket. Reassemble the sensor in reverse order and fix it to the bracket.
-
Page 18: Connection To Power Mains
DVUT 1000 PB EC V.2 CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. -
Page 19: Control
CONTROL The unit can be controlled using a wired wall control panel (A22, A25), a wireless wall control panel (A22 Wi-Fi) and a mobile app (A21). The panels and the app can be used together or separately. The control panel functions and operation of the mobile application are described in the respective user manuals. TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. - Page 20 DVUT 1000 PB EC V.2 2. Heat exchanger maintenance (once per year). Some dust may accumulate on the heat exchanger even in case of regular maintenance of the filters. To maintain the high heat recovery efficiency, regular cleaning is required. To clean the heat exchanger, remove it from the unit and clean the heat exchanger by using compressed air or a vacuum cleaner.
-
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot a connection error. Turn the unit off. The fan(s) does (do) not start Troubleshoot the motor jam and the impeller when the unit is on. The motor is jammed, the impeller blades are clogging. -
Page 22: Manufacturer's Warranty
DVUT 1000 PB EC V.2 MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 23: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Single-room air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 V177-1EN-03...
