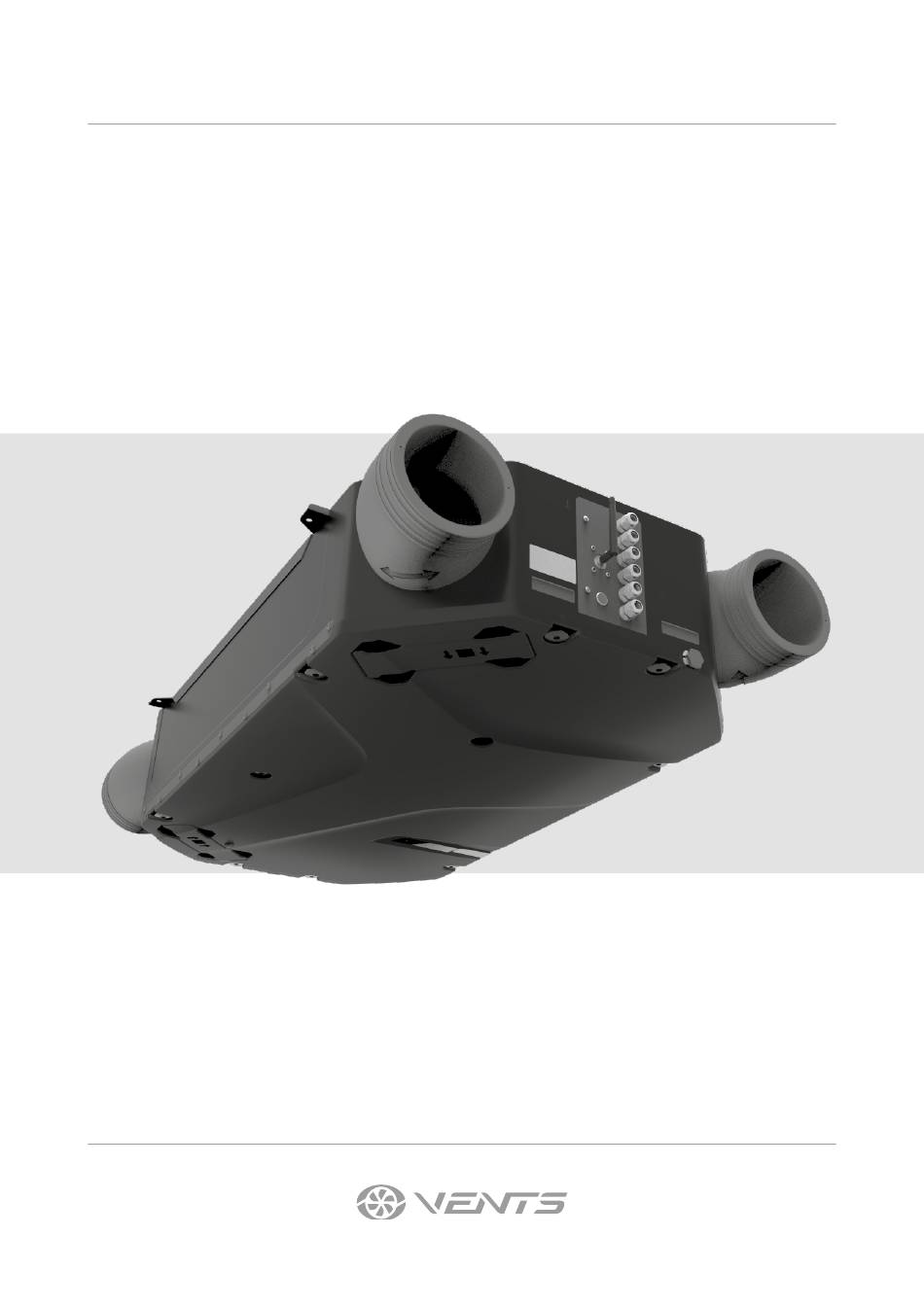

- Page 1 USER’S MANUAL Enave-C 150 P Enave-C 151 P Enave-C 200 P Enave-C 201 P Enave-CT 150 P Enave-CT 151 P Enave-CT 200 P Enave-CT 201 P Air handling unit...
-
Page 2: Table Of Contents
Enave-C(T) 150/151/200/201 P CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................8 Mounting and set-up .................................. 10 Connection to power mains ..............................14 Technical maintenance ................................ -
Page 3: Safety Requirements
SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit. - Page 4 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 5: Purpose
PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
Enave-C(T) 150/151/200/201 P TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air. - Page 7 Enave-C(T) 150/200 P 1246 1160 Enave-C(T) 151/201 P 1246 1160 www.ventilation-system.com...
-
Page 8: Design And Operating Principle
Enave-C(T) 150/151/200/201 P DESIGN AND OPERATING PRINCIPLE Service side view when the service panel is removed 1 — extract fan, 2 — supply filter, 3 — heat exchanger, 4 — control unit, 5 — supply fan, 6 — bypass damper, 7 — extract filter, 8 — CO2 sensor (option), 9 —... - Page 9 Unit operation modes Heat recovery Warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows through the air duct into the unit, where it is cleaned by the supply filter.
-
Page 10: Mounting And Set-Up
Enave-C(T) 150/151/200/201 P MOUNTING AND SET-UP Installing and connecting the HV2 humidity sensor and CO2 sensor The humidity and CO2 sensors are not included in the delivery set, they are ordered separately. Remove the heat exchanger. Install the sensors onto the appropriate fixation located on the internal walls of the unit's casing. Connect the sensors to the appropriate connectors Unit installation The unit is equipped with Ø... - Page 11 1 – drainage hole, 2 – expansion anchor, 3 — screw. Unit mounting examples Enave-C 150/151 Enave-C 200/201 Diagram 1. Suspended mounting Diagram 2. Vertical wall mounting 1 — drainage hole www.ventilation-system.com...
- Page 12 Enave-C(T) 150/151/200/201 P Mounting options according to diagrams 3-5 are possible for the Enave-CT 150/151 and Enave-CT 200/201 modifications. Enave-CT 150/151 Enave-CT 200/201 Diagram 3. Suspended mounting Diagram 4. Vertical wall mounting www.ventilation-system.com...
- Page 13 Diagram 5. Horizontal wall mounting Condensate drainage The Enave-C 150/151 and Enave-C 200/201 units require condensate drainage. Remove the plug from the unit cover from outside. Connect the drain pipe to the tightening seal. Drain pipe (1) and seal (2) Installation of the drain pipe Caution! While operating in a warm and humid climate, condensate may form in the unit from inside.
-
Page 14: Connection To Power Mains
Enave-C(T) 150/151/200/201 P CONNECTION TO POWER MAINS WARNING! All product maintenance work must be performed service specialists. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. The unit is designed for connection to power mains with the parameters specified in the technical data table. The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). - Page 15 EXTERNAL WIRING DIAGRAM FOR UNITS WITH A14 AUTOMATION 2.5A 12 13 14 15 16 17 SM-L SM-N PK1* SM1* SM2* CO2* – ELECTRIC SHOCK HAZARD! Designation Name Wire type Wire Note External control panel 4 x 0.25 mm² CO2* CO2 sensor 2 x 0.25 mm²...
- Page 16 Enave-C(T) 150/151/200/201 P EXTERNAL WIRING DIAGRAM FOR UNITS WITH A21 AUTOMATION L N PE Com Out1 Com Out1 12 13 9 10 14 15 16 17 In 90 60 In 90 60 PK1* Boost* EVH* ENH* TE_H NO C NO C RS485 4 5 6 Gnd A B...
-
Page 17: Technical Maintenance
TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance. Clogged filters increase air resistance in the system and reduce supply air volume. The filters require cleaning not less than 3-4 times per year. -
Page 18: Troubleshooting
Enave-C(T) 150/151/200/201 P 6. Control unit maintenance (as required). The control unit is located inside of the unit casing. For accessing the control unit remove the fixing screws on the panel and remove the control unit lid. TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected correctly, No power supply. -
Page 19: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 20 Enave-C(T) 150/151/200/201 P www.ventilation-system.com...
- Page 21 www.ventilation-system.com...
- Page 22 Enave-C(T) 150/151/200/201 P www.ventilation-system.com...
-
Page 23: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 V281EN-01...
