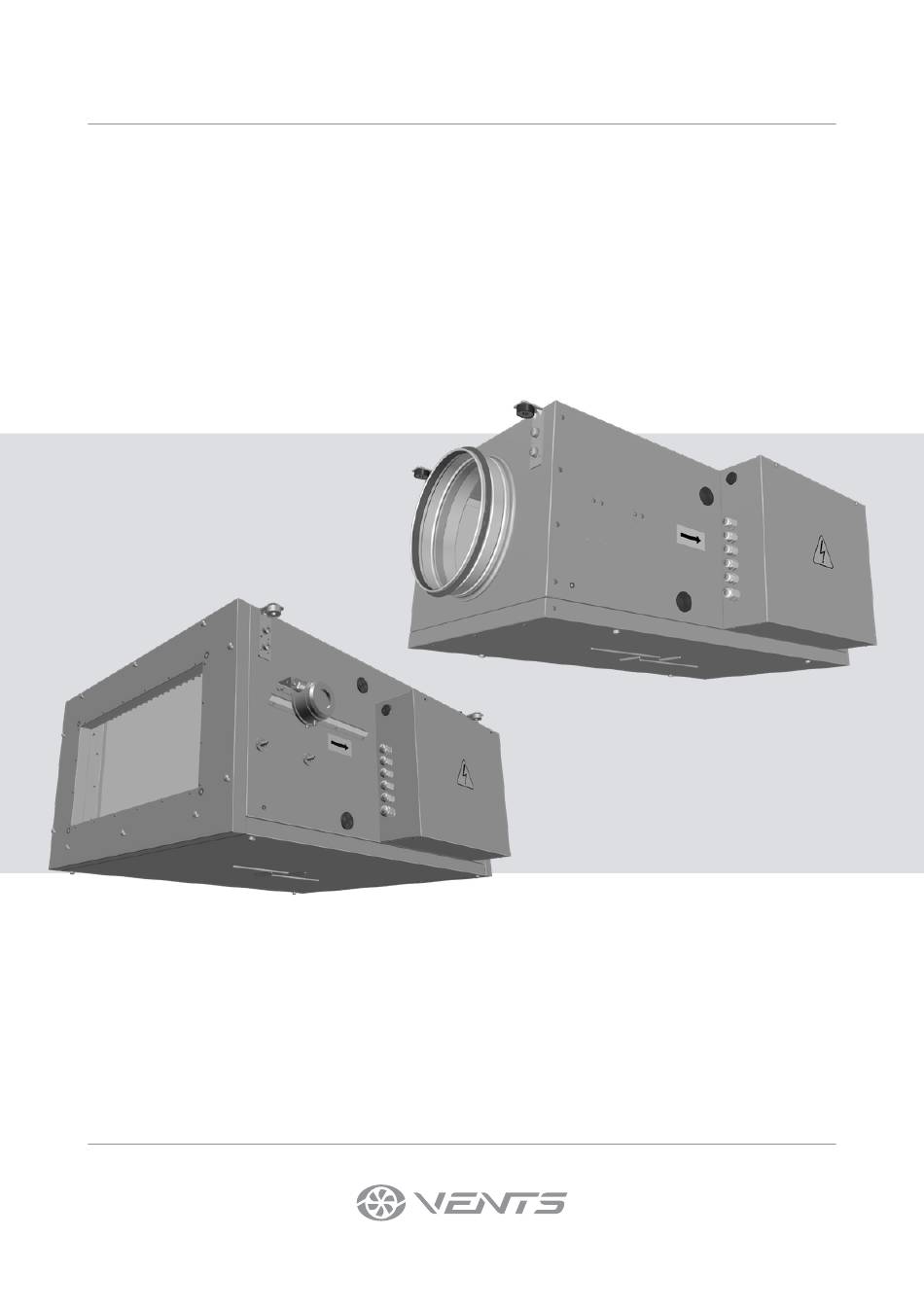

- Page 1 USER'S MANUAL MPA 700 W EC A30/31/32 MPA 1000 W EC A30/31/32 MPA 1500 W EC A30/31/32 MPA 2000 W EC A30/31/32 MPA 3000 W EC A30/31/32 MPA 4000 W EC A30/31/32 Single-block air supply unit...
-
Page 2: Table Of Contents
MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................9 Mounting and set-up .................................. 13 Connection to power mains ..............................17 Technical maintenance ................................ -
Page 3: Safety Requirements
SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit. - Page 4 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
-
Page 5: Purpose
PURPOSE The product is designed for filtering, supplying and heating the supply purified air in private residences, offices, hotels, cafes, conference rooms and other domestic and public spaces. The unit is a component part and is not designed for stand-alone operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs). -
Page 6: Technical Data
• IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. Overall and connection dimensions of MPA 700 W EC A30/31/32 D, ‘‘ Model D, ‘‘... - Page 7 Overall and connection dimensions of the models MPA 1000 W EC A30/31/32, MPA 1500 W EC A30/31/32, MPA 2000 W EC A30/31/32, MPA 3000 W EC A30/31/32, MPA 4000 W EC A30/31/32 (without side panels) D, ‘‘ Model MPA 1000 W EC A30/31/32 1 ‘‘...
- Page 8 MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 Overall and connection dimensions of the models MPA 1000 W EC A30/31/32, MPA 1500 W EC A30/31/32, MPA 2000 W EC A30/31/32, MPA 3000 W EC A30/31/32, MPA 4000 W EC A30/31/32 (with optional side panels) Model MPA 1000 W EC A30/31/32 MPA 1500 W EC A30/31/32...
-
Page 9: Design And Operating Principle
Technical specifications of the particular model are indicated on the unit casing. DESIGN AND OPERATING PRINCIPLE The unit is housed in a sound-insulated galvanized steel casing (item 1). The unit casing has 4 mounting brackets with anti-vibration connectors for ceiling or wall mounting (item 5). The air flow direction is indicated by the arrow on the fan casing. - Page 10 MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 TOP VIEW MPA ... L MPA ... R The figure below shows the internals of the left and right version of the units with the removable cover removed. The air flow direction is indicated by the arrows. •...
- Page 11 VIEW FROM THE MAINTENANCE SIDE MPA ... L MPA ... R www.ventilation-system.com...
- Page 12 MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 The unit supplies heated and filtered outdoor air into the room. The unit uses a frameless radial fan directly driven by an external rotor motor. The fan impeller blades are curved backwards. The motor has built-in thermal protection and requires no maintenance. The air after filtration passes through a water heater.
-
Page 13: Mounting And Set-Up
MAINTENANCE AND REPAIR. MPA 700 W EC A30/31/32 units are equipped with branch pipes for connection to circular air ducts. MPA 1000 W EC A30/31/32, MPA 1500 W EC A30/31/32, MPA 2000 W EC A30/31/32, MPA 3000 W EC A30/31/32, MPA 4000 W EC A30/31/32 units are installed in a system of rectangular air ducts that are connected either directly to the unit casing or through the side panels. - Page 14 MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 The units are assembled in such a way that the water heater connections are placed on the opposite side of the control unit. The unit design allows moving the control unit and water heater to the opposite side of the casing. This allows for more efficient placement of equipment and communications during the installation of the ventilation system.
- Page 15 unit and chassis on the other side of the casing in reverse order using the same screws. 7. Connect all cables inside the unit in the new location at the same points as before disassembly. Reinstall the control unit cover. 8.
- Page 16 MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 5. Remove the rubber plugs from the holes in the unit casing opposite the heater connections. Using a narrow utility knife cut a hole in the soundproofing material layer corresponding to the size of the opening in the outer casing of the unit. 6.
-
Page 17: Connection To Power Mains
The sensor is included in the delivery set. Wiring diagrams for power supply and external devices are shown in the figures below. MPA 700 W EC A30/31/32, MPA 1000 W EC A30/31/32, MPA 1500 W EC A30/31/32, MPA 2000 W EC A30/31/32 SM_L SM_L1 SM_N 2,5А... - Page 18 MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 MPA 3000 W EC A30/31/32 3,15А SM_L SM_L1 SM_N 0,5А 5А 2,5А N PE K2:A2 K2:A1 L1 F2 F3 F4 Electric shock hazard! Power input М 2* М 3* SM 1*/SM 2* SM 1*/SM 2* ~220V, 50Hz +24V GND Rx- Rx+ GND +24V...
- Page 19 The interpretation of the designations and the characteristics of the connection cables are given in the table. Designation Name Wire type Note A3** Remote controller ThTune 5x0.25 ThTune CO2 sensor or RH1 humidity sensor 3x0.25 CCU* Cooler control 2x0.75 DD1* Dry-run protection relay 2x0.5 Remove the jumper 21...
-
Page 20: Technical Maintenance
MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION PRIOR TO COMMENCING ANY TECHNICAL MAINTENANCE PUT UP A PROHIBITORY SIGN ON THE FAN STARTING PANEL: “DO NOT SWITCH ON! MEN AT WORK!”... -
Page 21: Troubleshooting
TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot a connection error. Disconnect the fan from power supply. Troubleshoot The unit does not start. Jammed motor. the motor jamming. Restart the unit. Disconnect the fan from power supply. -
Page 22: Manufacturer's Warranty
MPA 700/1000/1500/2000/3000/4000 W EC A30/31/32 MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 23: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Single-block air supply unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 V264EN-01...
