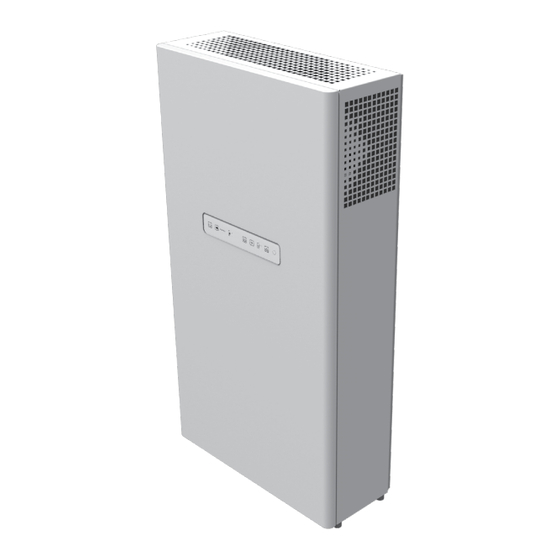

Vents Freshbox 200 ERV WiFi User Manual

Air handling unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Air hAndling unit
Freshbox 200 ERV WiFi
Freshbox E-200 ERV WiFi
Freshbox E1-200 ERV WiFi
Freshbox E2-200 ERV WiFi
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freshbox 200 ERV WiFi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vents Freshbox 200 ERV WiFi

Summary of Contents for Vents Freshbox 200 ERV WiFi

  • Page 1 Air hAndling unit Freshbox 200 ERV WiFi Freshbox E-200 ERV WiFi Freshbox E1-200 ERV WiFi Freshbox E2-200 ERV WiFi USER’S MANUAL...

  • Page 2: Table Of Contents

    Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
  • Page 3 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands.

  • Page 4: Delivery Set

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.

  • Page 5: Technical Data

    IP44 for the unit motors The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. PARAMETER FRESHBOx 200 ERV WIFI FRESHBOx E-200 ERV WIFI FRESHBOx E1-200 ERV WIFI FRESHBOx E2-200 ERV WIFI...
  • Page 6 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Dimensions [mm] Model Ø D Freshbox (E)/(E1)/(E2)-200 ERV WiFi 1020...

  • Page 7: Design And Operating Principle

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE H13 filter (option) F7 filter Supply grille sensor (purchased separately) Supply air reheater Additional exhaust air duct G4 extract filter Extract grille Control unit Counter-flow Control panel heat exchanger Lock Extract fan Supply air preheater Supply fan Exhaust spigot...
  • Page 8 The reheater is switched on and off by means of a button on a sensor control panel, a remote control or via a mobile application. The heat exchanger overheating protection in the Freshbox 200 ERV WiFi and Freshbox E1-200 ERV WiFi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings.

  • Page 9: Mounting And Set-Up

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). THE UNIT MUST BE MOUNTED ON A PLANE SURFACE.
  • Page 10 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an extract spigot, prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct.
  • Page 11 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remove the F7 and H13 filters for accessing the mounting holes. If an extract spigot is installed, remove the top protective panel and install the magnetic plug on the exhaust grille. When removing the panel, disconnect the grounding cable. Lift the unit, insert the spigots into the corresponding air ducts installed in the wall.
  • Page 12 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.

  • Page 13: Control

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONTROL The unit is controlled by means of a control panel on the unit casing, a remote control or via a mobile application. Control panel 1. The unit is switched on/off using 2. Ventilation modes can be controlled by the buttons.
  • Page 14 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de — • — • • Short circuit of the sensor downstream of the heat exchanger in the supply air duct — • • — — Low battery. The weekly schedule function will not work correctly —...
  • Page 15 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Following message is displayed if launching an application without connection to the unit: By default, the unit operates as a Wi-Fi access point. After installing the application, connect the mobile device to the unit as to a Wi-Fi (FAN: + 16 characters of the ID number) indicated on the control board and on the unit casing.
  • Page 16 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Menu Connection - At home. • Go to • Choose the connection and press • Enter and confirm the password. Characters allowed: 0…9, a…z, A…Z. Password” button. • Press the “Change Wi-Fi parameter setup Menu )–...
  • Page 17 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Client: the unit operates on the home router network. Enter the home router details and the IP address type for the Client mode: Enter the name of the Wi-Fi home router access point. Enter the password for the Wi-Fi home router access point. Select an IP address type: DHCP: the IP address is set up automatically upon connection to the home router (recommended).
  • Page 18 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de • Confirm the updated details by pressing • To exit the account, press Menu structure Home page Indicators: Current type of connection to the unit. Home connection or connection via a cloud server through Internet respectively. Reheater activity.
  • Page 19 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Timer activation. Timer settings are made in the Basic Settings - Timers menu. Week-scheduled operation mode activation. The settings of this mode are made in the Basic settings - Schedule menu. Recirculation – activation of the recirculation mode. If there is no recirculation mode, the button is inactive. Heater –...
  • Page 20 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Date and time Current time and date are displayed and adjusted in this menu. Time display format: hh:mm:ss. Date format: dd.mm.yyyy. — To enter the time and date manually. — The same time as in the mobile device will be automatically set.
  • Page 21 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Engineering menu Air flow Air flow rate, preset speed 1-5 and Boost mode are set in this section. Sensors This section displays the current status of all sensors: — outdoor air temperature. — supply air temperature. —...
  • Page 22 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Factory settings In this section you can reset your settings to the factory settings. Communication with the unit may be lost after restoration. If necessary, reset your Wi-Fi connection. Alarms This section displays alarms and warnings. Alarms are highlighted in red, warnings are highlighted in black.

  • Page 23: Technical Maintenance

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning or replacement of filters (if necessary) and dry cleaning of fans. Maintenance includes general cleaning of the unit and the following operations: 1.

  • Page 24: Troubleshooting

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING The fan(s) do(es) not get Make sure that the unit is properly connected to the power No power supply. started. mains and make any corrections, if necessary. Extract filter clogging. Clean or replace the extract filter.

  • Page 25: Manufacturer's Warranty

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 26 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de...

  • Page 27: Certificate Of Acceptance

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 28 www.blaubergventilatoren.de B73-7EN-06...
