General Information
iSBX 350
In addition, the user must supply a host iSBC
microcomputer; line driver/terminator devices for
Multimodule sockets XU3, XU4, XU5, and XU6, if
required by the application; and an interconnecting
cable and connector.
Intel iSBC microcomputer that includes a compatible
mating connector.
1-5. SPECIFICATIONS
1-4. COMPATIBLE EQUIPMENT
The Multimodule board must be used with a host
The specifications for the iSBX 350 Parallel Multi-
module Board are listed in table 1-1.
I/O ADDRESSING
INTERFACE COMPATIBILITY

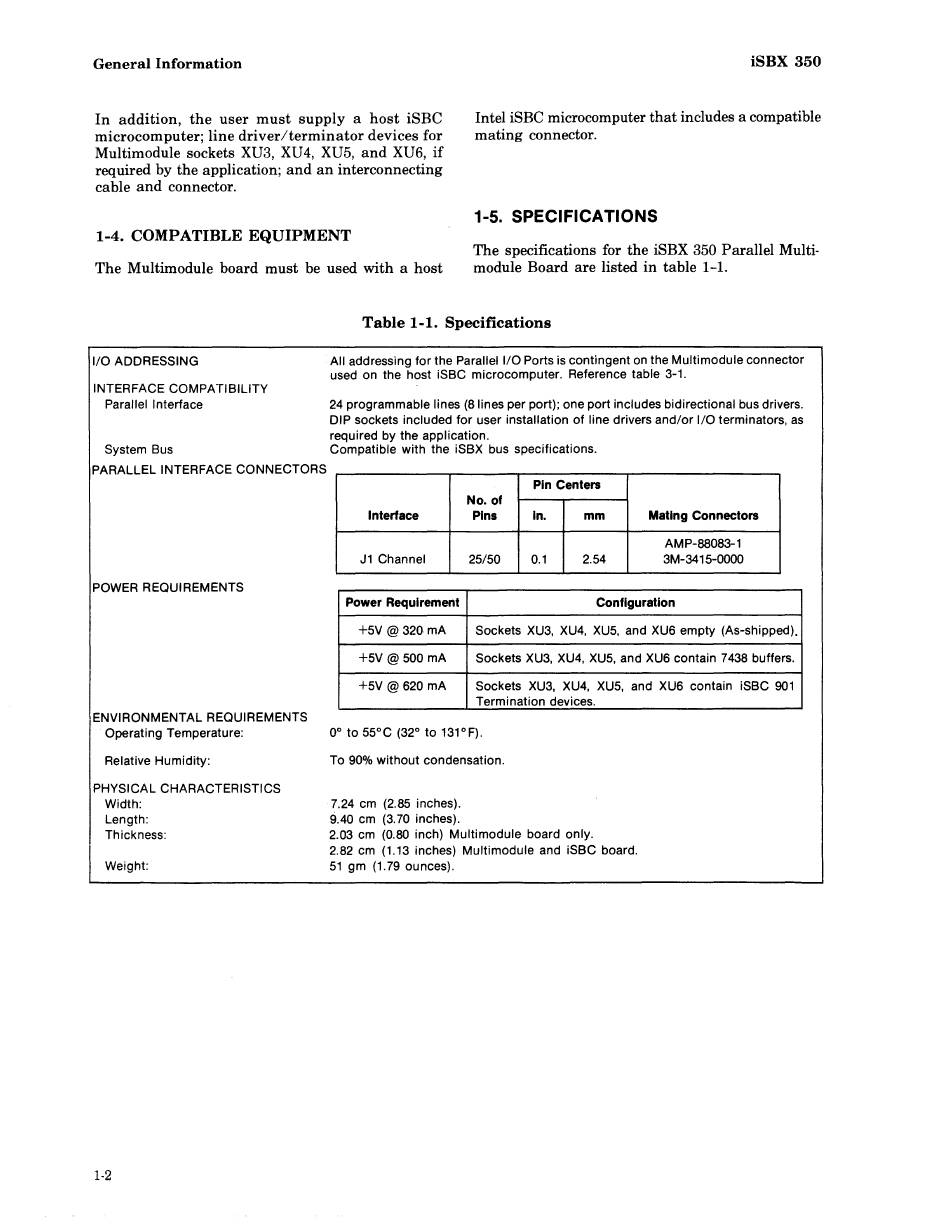

Table 1-1. Specifications
All addressing for the Parallel I/O Ports is contingent on the Multimodule connector
used on the host iSBC microcomputer. Reference table 3-1.
Parallel Interface 24 programmable lines (8 lines per port); one port includes bidirectional bus drivers.
DIP sockets included for user installation of line drivers and/or I/O terminators, as
required by the application.
System Bus Compatible with the iSBX bus specifications.
PARALLEL INTERFACE CONNECTORS
POWER REQUIREMENTS
ENVIRONMENTAL REQUIREMENTS
Operating Temperature:
Relative Humidity:
PHYSICAL CHARACTERISTICS
Width:
Length:
Thickness:
Weight:
1-2
Pin Centers
No. of
Interface
Pins
In. mm Mating Connectors
AMP-88083-1
J1 Channel 25/50 0.1 2.54 3M-3415-0000
Power Requirement
Configuration
+5V @320mA Sockets XU3, XU4, XU5, and XU6 empty (As-shipped).
+5V @500 mA Sockets XU3, XU4, XU5, and XU6 contain 7438 buffers.
+5V @ 620 rnA Sockets XU3, XU4, XU5, and XU6 contain iSBC 901
Termination devices.
To 90% without condensation.
7.24 cm (2.85 inches).
9.40 cm (3.70 inches).
2.03 cm (0.80 inch) Multimodule board only.
2.82 cm (1.13 inches) Multimodule and iSBC board.
51 gm (1.79 ounces).
