iSBX 350
e.
Secure the Multimodule board to the top of the
spacer with the other
1,4.
inch x 6/32 screw.
NOTE
The placement of an installed Multimodule
board and the host board connector number
may vary according to the type of host iSBC
microcomputer that is used.
l
Preparation for Use
MULTIMODULE'· BOARD
'/2' THREADED NYLON SPACER
E~~3
MICROCOMPUTER BOARD
t __
-4
~."
6-32 NYLON SCREW

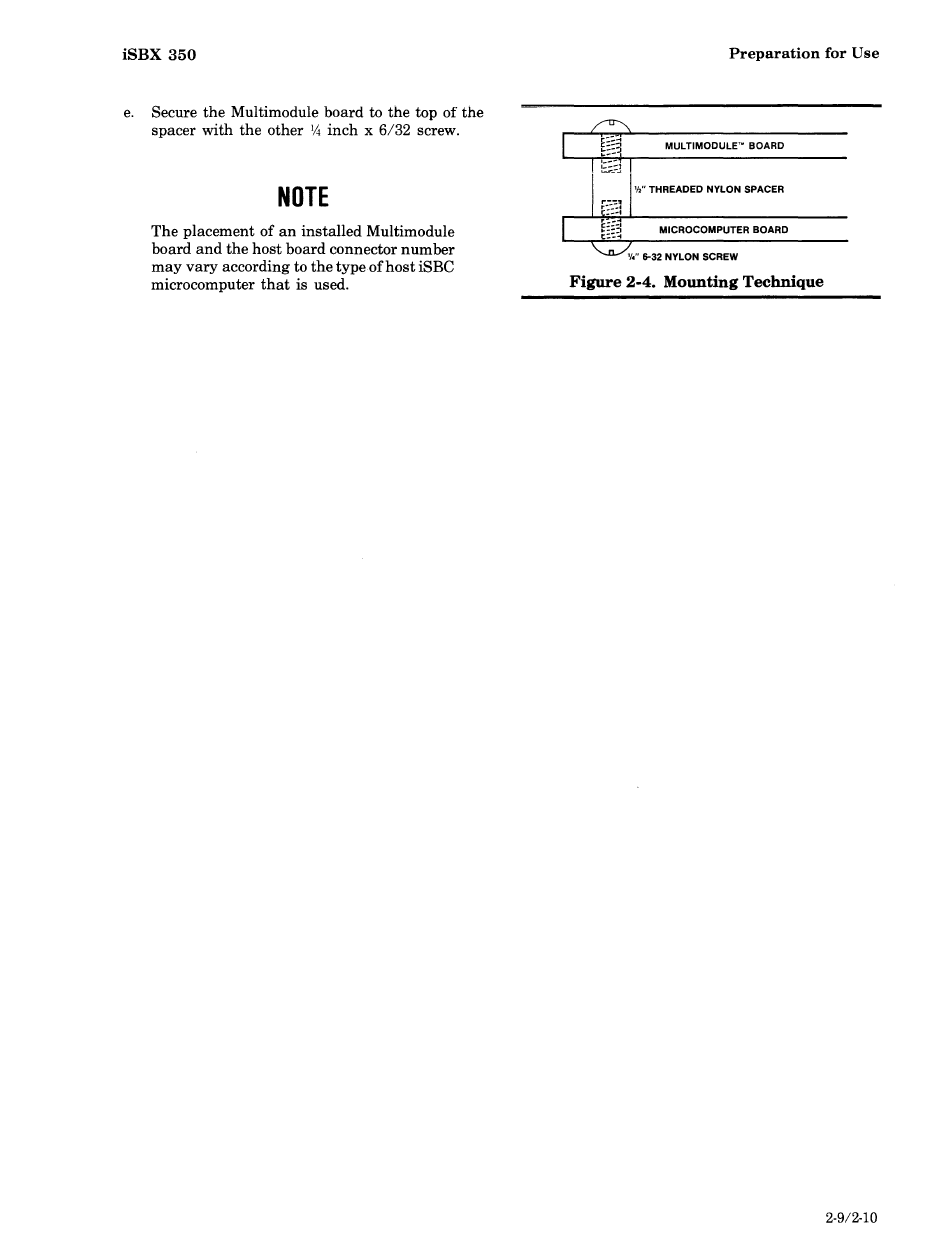

Figure 2-4. Mounting Technique
2-9/2-10
