Racelogic DSP07-L Quick Start Manual

Lap Timing Menu
This page contains information about the settings in the Lap Timing Menu on the OLED Display (DSP07-L).

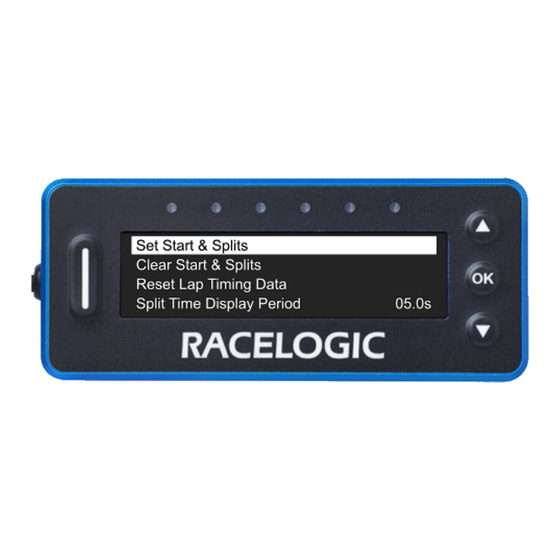

Set Start & Splits
When you press the OK button a new start/finish point is
set. After this, the LapTimer unit will display Set split 1.
Press the OK button to confirm the set split and▼to skip
to additional split points and the finish line. If a new start/
finish or split line is set then the lap count, best lap, and
all the best split time values will be reset automatically.
Note: The vehicle must be moving faster than 10 km/h
for the LapTimer to set the lines.
Press the OK button with this option highlighted to
navigate back to the Lap Timing Menu.
Clear Start & Splits
Press the OK button to delete all saved start/finish lines
and gates.
