Operators and Service Manual

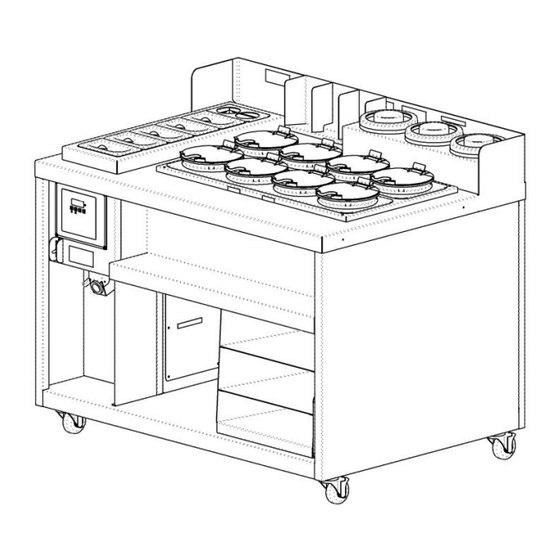

Drive-Thru Soup Station Holding Unit
U.S. and Foreign Patents Pending
Units Starting with Serial #07141100
For information or technical assistance, call:
(800) 735-DUKE (3853) or (314) 231-1130
Revised 6-9-15
229084

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCSS-48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duke HCSS-48

Summary of Contents for Duke HCSS-48

  • Page 1 Operators and Service Manual Drive-Thru Soup Station Holding Unit U.S. and Foreign Patents Pending Units Starting with Serial #07141100 For information or technical assistance, call: (800) 735-DUKE (3853) or (314) 231-1130 Revised 6-9-15 229084...

  • Page 2: Table Of Contents

    TROUBLESHOOTING ......................8 ELECTRONIC CONTROL FAULT INDICATIONS ..............8 SERVICE PARTS LIST AND ILLUSTRATIONS ..............9 CONTROL WIRING SCHEMATIC ..................12 FOR CUSTOMER ASSISTANCE ..................13 2 of 13 U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 314-231-1130...

  • Page 3: Manufacturer's Introduction

    RESTAURANT EQUIPMENT DRIVE THRU SOUP STATION HOLDING UNIT MANUAL Manufacturer’s Introduction The Duke Dry Channel Holding Technology was Supplier Name: Duke Manufacturing Co. developed to provide the market with a more Address: 2305 N. Broadway efficient method of keeping food warm. This St.

  • Page 4: Hcss Specification Sheet

    DRIVE THRU SOUP STATION HOLDING UNIT MANUAL HCSS Specification Sheet Shipping Weight: 320 lbs/145 Kg Electrical: HCSS-48 208 V, 11 A, 2300 W 50/60 Hz, 1 Phase U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 4 of 13 314-231-1130...

  • Page 5: Installation Instructions

    6. At end of day, remove all food pans and lids and turn off main power switch. 7. Clean per cleaning instructions. U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 5 of 13 314-231-1130...

  • Page 6: Operation Checklist And Cleaning Guide

    Do not use caustic cleaners, acids, ammonia products or abrasive cleaners or abrasive cloths. These can damage the stainless steel, Aluminum, and plastic surfaces. U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 6 of 13 314-231-1130...

  • Page 7: Control Operation

    3 seconds to turn the channel off. Control Panel The controls for the Duke drywell maintain the temperature of the channels. Each channel has one heat zones. Zone 1 is in the channel closest to the operator. Zones 2 is in the channel furthest from the operator.

  • Page 8: Troubleshooting

    MANUAL Troubleshooting There are no user serviceable parts on the Duke Dry Channel Holding Unit. If a malfunction occurs, then check all switches and circuit breakers. Check rating label and confirm that unit is operating at the proper voltage. If the malfunction still exists, contact your Duke Manufacturing Company authorized service agent or call 1-800-735-3853.

  • Page 9: Service Parts List And Illustrations

    Harness, HD15 for RTD’s 218918 228822 Harness, DSUB9/Relays 6-Channel 218902 Terminal Block, Ideal 228510 Element 550W 208V Channel 228807 RTD Heating Element 119” 228808 Hi-Limit PEPI 190C U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 9 of 13 314-231-1130...
  • Page 10 RESTAURANT EQUIPMENT DRIVE THRU SOUP STATION HOLDING UNIT MANUAL Control Relay Box U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 10 of 13 314-231-1130...
  • Page 11 RESTAURANT EQUIPMENT DRIVE THRU SOUP STATION HOLDING UNIT MANUAL Wiring Layout for Box Connection Relay U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 11 of 13 314-231-1130...

  • Page 12: Control Wiring Schematic

    RESTAURANT EQUIPMENT DRIVE THRU SOUP STATION HOLDING UNIT MANUAL Control Wiring Schematic U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 12 of 13 314-231-1130...

  • Page 13: For Customer Assistance

    Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), and description of the problem U.S. and Foreign Patents Pending DUKE MANUFACTURING CO. TOLL FREE 800-735-DUKE (3853) 13 of 13 314-231-1130...
