TS400 Series

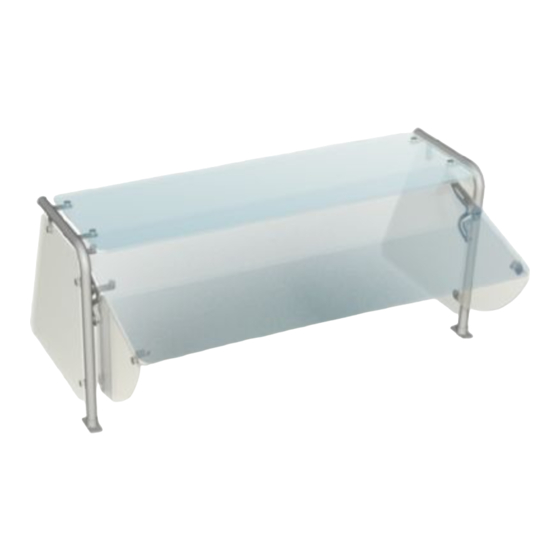

Food Guards
TS412
TS422
TS472
CAUTION:
TS462
TS482
TS482DS
Please read this manual completely before attempting
to install, operate or service this equipment
WARNING For CA residents: go to
www.dukemfg.com/prop65 for prop 65 warning
This manual is Copyright © 2020 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Installation and
Operation Manual
TS462DD
TS482DD
TS482DSDD
P/N 229328
REV B 10/20/2020
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Duke TS400 Series
Summary of Contents for Duke TS400 Series
- Page 1 WARNING For CA residents: go to www.dukemfg.com/prop65 for prop 65 warning This manual is Copyright © 2020 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.
-
Page 2: Table Of Contents
Installation and Operation of: TS400 Series Food Guard TABLE OF CONTENTS Important Safety Instructions ........................2-4 Pre Installation ................................. 5 TS412 Specifications ............................. 6 TS422 Specifications ............................. 7 TS462 Specifications ............................8-9 TS472 Specifications ............................10 TS482 Specifications ............................ 11-13 Wire Diagram .................................14 Flush Mounting Instructions ..........................15... - Page 3 Installation and Operation of: TS400 Series Food Guard In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of the unit. • Read all instructions before using equipment. • For your safety, the equipment is furnished with a properly grounded cord connector. Do not attempt to remove or disconnect the grounded connector.
- Page 4 Installation and Operation of: TS400 Series Food Guard ELECTRICAL SHOCK HAZARD UNIT MUST BE SAFETY GROUNDED, EARTHED. DO NOT MODIFY, DEFEAT ELECTRICAL CONNECTIONS OR ALTER PLUG. ELECTRICAL CONNECTIONS BEFORE CONNECTING THE UNIT TO THE POWER SOURCE, VERIFY THAT THE VOLTAGE AND PHASE OF THE POWER SOURCE ARE IDENTICAL TO THE VOLTAGE AND PHASE INFORMATION ON THE DATA LABEL.
-
Page 5: Pre Installation
Installation and Operation of: TS400 Series Food Guard PRE-INSTALLATION Receiving and Inspection UNPACKING UNIT Inspect the shipping carton and/or container, carefully noting any exterior damage on the delivery receipt; also note any damage not evident on the outside of the shipping container (concealed damage). Contact the carrier immediately and file a damage claim with them. -
Page 6: Ts412 Specifications
Installation and Operation of: TS400 Series Food Guard TS412 SERIES SPECIFICATIONS End View Top View 21.20 Flush Mount 24.14 Length End View Through Mount 38.06 Front View Customer Through Mount Side Section 2 Section 1 18.13 CL TO CL CL TO CL... - Page 7 Installation and Operation of: TS400 Series Food Guard TS422 SERIES SPECIFICATIONS 19.58 Top View End View 20.18 Self Service Flush Mount Length 29.214 End View Full Service Through Mount 34.10 34.10 Front View Customer Through Mount Side Section 2 Section 1...
- Page 8 Installation and Operation of: TS400 Series Food Guard TS462 SERIES SPECIFICATIONS Top View End View Self Serve 20.07 20.105 Flush Mount 27.274 Length End View Full Serve Through Mount 34.11 Front View Customer Through Mount Side 17.000 Section 2 Sectin 1...
- Page 9 Installation and Operation of: TS400 Series Food Guard TS462 SERIES SPECIFICATIONS Top View End View 23.07 Self Serve 26.11 Flush Mount Length 20.00 CL TO CL 25.30 End View Full Serve Through 40.11 40.11 Mount Front View Customer Through Mount...
- Page 10 Installation and Operation of: TS400 Series Food Guard TS472 SERIES SPECIFICATIONS Top View 19.00 End View 23.03 Flush Mount Length End View Through Front View Mount 37.03 37.03 Through Mount Customer Side Section 2 Section 1 CL TO CL CL TO CL...
- Page 11 Installation and Operation of: TS400 Series Food Guard TS482 SERIES SPECIFICATIONS Top View 18.500 20.11 End View Flush Mount Length 9.75 CL TO CL 18.50 End View Through Mount 34.11 34.105 Front View Customer Through Mount Side Section 2 Section 1...
- Page 12 Installation and Operation of: TS400 Series Food Guard TS482 SERIES SPECIFICATIONS 39.97 Top View 20.105 End View Flush Mount Length 39.968 End View Through Mount 34.105 34.11 Front View Through Mount Section 2 Section 1 26.125 CL TO CL CL TO CL...
-
Page 13: Led And /Or Heater Installation Instructions
Installation and Operation of: TS400 Series Food Guard TS482 SERIES SPECIFICATIONS Electrical Specifications: 120 Volt 120/208 120/240 208 Volt Volt 240 Volt Volt LED Only Heater Only LED and Heater Only LED and LED and NEMA Heater Only Heater Heater... - Page 14 Installation and Operation of: TS400 Series Food Guard WIRE DIAGRAM TS400 Wire Diagram Heat Element LED Light Heat Element LED Light WHT/Blk Bottom Shelf Top Shelf Infinite Switch Shelf Light Infinite Switch WHT/Blk Switch WHT/Blk Bottom Shelf Light WHT/Blk Switch...
- Page 15 Installation and Operation of: TS400 Series Food Guard FLUSH MOUNTING CHECK YOUR MODEL’S SPEC SHEETS FOR CL/CL SUPPORTS DIMENSIONS FLANGED FOOT .375 1.063 1.015 .850 1.250 .200 2.125 .200 3.000 2.125 2.125 Customer Side Post Mount Glass Support Operators Side Post Mount 1"...
- Page 16 Installation and Operation of: TS400 Series Food Guard THROUGH MOUNT CHECK YOUR MODEL’S SPEC SHEETS FOR CL/CL SUPPORTS DIMENSIONS 1" Brushed SS Post Decorative Flange Cover Screws (4x) Set Screw Mounting Flange Mounting Surface Drill and Tap Holes (4X) for 10-24 Bolt 2.125...
- Page 17 Installation and Operation of: TS400 Series Food Guard LED AND/OR HEATER INSTALLATION Wiring should be done by a qualified electrician. Pull any wiring through end posts to connect lights or heaters if required. NOTE: Wire Diagram is located on Page 14 Secure Led light and/or Heaters to the uprights.
-
Page 18: Glass Installation Instructions
Although the glass on the different models are different sizes they all mount the same. The Duke Logo should be readable from the customer side when installing the Glass. All glass to be mounted to the outside toward the customer. -
Page 19: Heat And Light Operations
Installation and Operation of: TS400 Series Food Guard HEAT AND LIGHT OPERATIONS Your control panel may look different but operates the same. LIGHTING HEATING Turn ON - Flip Up Turn ON - Heater Switch Light Switch Turn dial to desired temp... -
Page 20: Maintenance
Installation and Operation of: TS400 Series Food Guard MAINTENANCE The device is not suited for direct washing with a water jet. Therefore, do not use a pressure water jet to clean the device! Before cleaning turn the device off and allow the unit to cool, if applicable.
