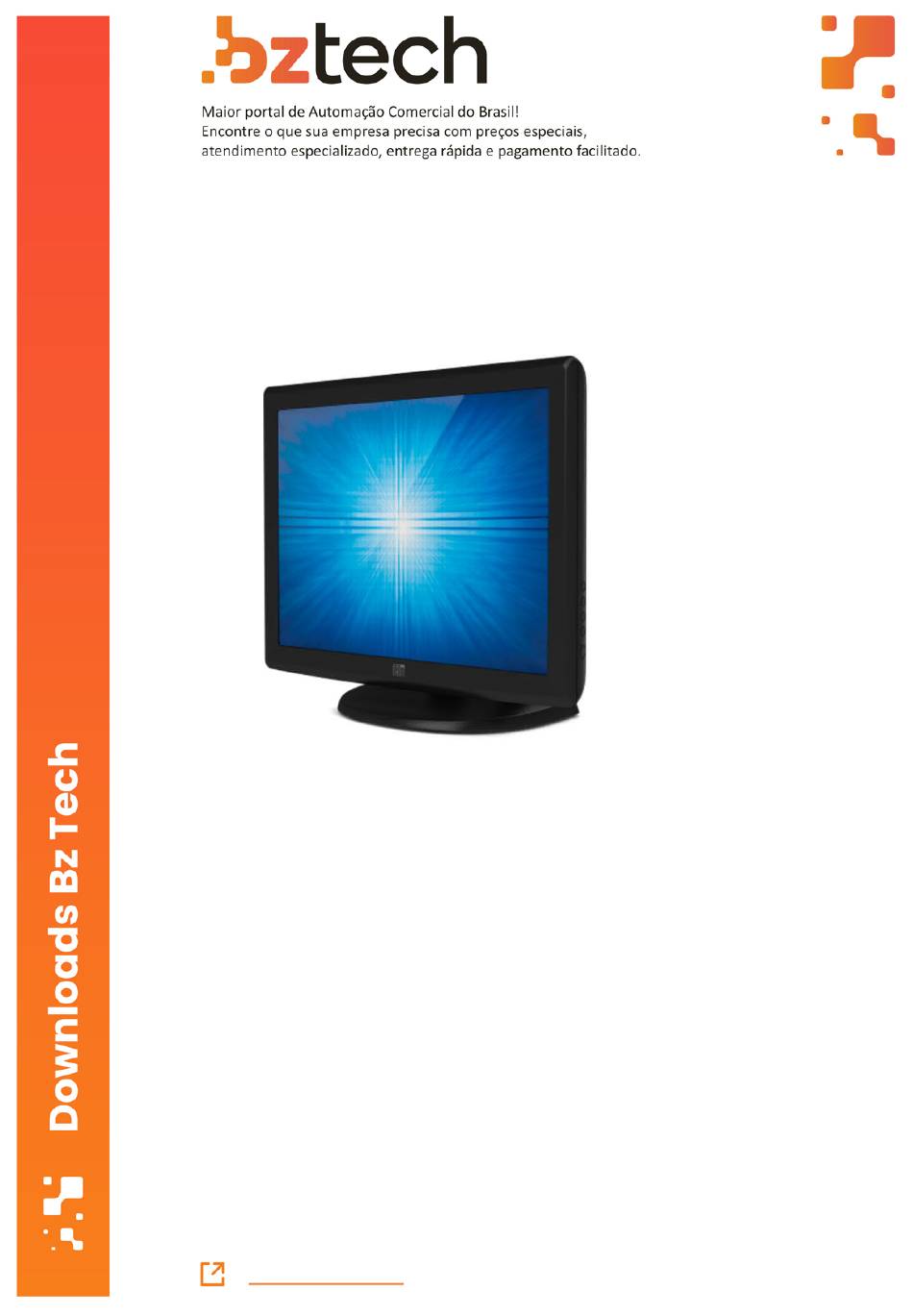

- Page 1 Monitor Elo 1515L O ET1515L é o monitor touchscreen da Elo Touch Solutions extremamente robusto e resistente. Trabalha com as duas melhores tecnologias de toque disponíveis hoje no mercado. bztech.com.br...
- Page 2 (shown with optional Magnetic Stripe Reader) Touchmonitor User Guide 1515L 15¨ LCD Desktop Touchmonitor,1000 Series (Optional Magnetic Stripe Reader Available)
- Page 3 User Guide 15" LCD Desktop 1515L Series Revision D P/N 008612E...
- Page 4 Copyright © 2007 Tyco Electronics Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written per- mission of Elo TouchSystems.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 Appendix B Introduction Touchmonitor Safety ..........27 Product Description ........... 7 Care and Handling of Your Touchmonitor ....28 Precautions ..............7 About the product ............8 Appendix C Touchmonitor Specifications ........30 Chapter 2 IntelliTouch Touchmonitor Specifications ..... -
Page 6: Introduction
CHAPTER NTRODUCTION Product Description Your new touchmonitor combines the reliable performance of touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between a user and your touchmonitor. This LCD monitor incorporates 15” color active matrix thin-film-transistor (TFT) liquid crystal display to provide superior display performance. -
Page 7: About The Product
About the Product The 1515L LCD Desktop Touchmonitor is a 15” XGA TFT color display with the following features: • The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies between 31.5 KHz and 60.2 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency. -
Page 8: Installation And Setup
CHAPTER NSTALLATION AND ETUP This chapter discusses how to install the 1515L LCD touchmonitor and the driver software. Unpacking Your Touchmonitor Check that the following 8 items are present and in good condition: LCD monitor VGA cable USB cable Serial Cable European power cable Power cable US/Canada Elo QuickStar t... -
Page 9: Touch Interface Connection
Touch Interface Connection Before connecting the cables to your touchmonitor and PC, be sure that the computer and Note: touchmonitor are turned off. DC JACK Power Cord USB Cable Serial Cable Video Cable DC JACK For APR model only Power Cord USB Cable Video Cable 1. -
Page 10: Product Overview
Product Overview Main Unit Rear View Kensington Lock The Kensington lock is a security device that prevents theft. To find out more about this security device, go to http://www.kensington.com. 2-11... -
Page 11: Installing The Driver Software
Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows Vista • Windows XP • Windows 2000 • Windows Me •... -
Page 12: Installing The Serial Touch Driver
Installing the Serial Touch Driver Installing the Serial Touch Driver for Windows Vista, Windows XP, Windows 2000, Me, 95/98 and NT4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install NOTE: the driver. 1 Insert the Elo CD-ROM in your computer's CD-ROM drive. 2 If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program. -
Page 13: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1
Installing the Serial Touch Driver for MS-DOS and Windows 3.1 You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive. -
Page 14: Installing The Usb Touch Driver
Installing the USB Touch Driver Installing the USB Touch Driver for Windows Vista, Windows XP, Windows 2000, Me, 95/98 and NT4.0 1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. If Windows 98, Windows Me or Windows 2000 starts the Add New Hardware Wizard: 2 Choose Next. -
Page 15: Installing Apr Usb Touch Driver For Windows Xp
Installing APR USB Touch Driver for Windows XP Insert the Elo APR CD-ROM in your computer’s CD-ROM driver. Follow the directions on the screen to complete the APR 2.0 driver setup for your version of Windows. 1 Click Start > Run. 2 Click the Browse button to locate the SW600117.exe program on the CD-ROM. -
Page 16: Operation
CHAPTER PERATION About Touchmonitor Adjustments It is unlikely the touchmonitor will require adjustment. Variations in video output and application may require adjustments to the touchmonitor to optimize the quality of the display. For best performance, the touchmonitor should be operating in native resolution, 1024 x 768 at 60k-75 Hz. -
Page 17: Side Panel Controls
Side Panel Controls Control Function 1 Menu/Exit Display/Exits the OSD menus. 1. Enter contrast of the OSD. 2. Increase value of the adjustment item. 3. Move OSD selection clockwise. 1. Enter brightness adjustment. 2. Decrease value of the adjustment item. 3. -
Page 18: Controls And Adjustment
Controls and Adjustment OSD Menu Functions To Display and Select the OSD Functions: 1. Press the Menu key to activate the OSD menu. 2. Use to move clockwise, or counterclockwise through the menu. Press the “Select” key, the parameter will be highlighted when selected. 3. -
Page 19: Osd Control Options
OSD Control Options Control Description Brightness Increases or decreases brightness Contrast Increases or decreases contrast H-Position Moves the screen left or right V-Position Moves the screen up or down Phase Increases or decreases the snow noise of the image after auto adjustment is made. -
Page 20: Preset Modes
Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When none of the mode is matched, the user can store their preferred modes in the user modes. -
Page 21: Power Management System
Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use. Power Mode Consumption <30W Sleep <4W <2W It is recommend to switch the monitor off when it is not in use for a long time. The monitor automatically goes through the Power Management System (PMS) steps NOTE: when it is idle. -
Page 22: Troubleshooting
CHAPTER ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or the Elo service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond 1. - Page 23 4-24 User Guide...
- Page 24 APPENDIX ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1024 x 768 for the 15 inch size. In almost all cases, screen images look best when viewed at their native resolution.
-
Page 25: Native Resolution
As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels. -
Page 26: Appendix B Touchmonitor Safety
APPENDIX OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of the touchmonitor. Before setting up and powering on the new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case. -
Page 27: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick power supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. - Page 28 APPENDIX ECHNICAL PECIFICATIONS C-29...
-
Page 29: Touchmonitor Specifications
Touchmonitor Specifications Model 1515L LCD Display 15” TFT Active Matrix Panel Display Size 304.(H) x 228.(V) mm Pixel Pitch 0.297(H) x 0.297(V) mm Display Mode VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz) SVGA 800 x 600 (56 / 60 / 72/ 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz) Max. -
Page 30: Intellitouch Touchmonitor Specifications
IntelliTouch Touchscreen Specifications MECHANICAL Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%. Touchpoint Density More than 100,000 touchpoints/in2 (15,500 touchpoints/cm2). Touch Activation Force Typically less than 3 ounces (85 grams). Surface Durability Surface durability is that of glass, Mohs’... -
Page 31: Accutouch Touchmonitor Specifications
AccuTouch Touchscreen Specifications MECHANICAL Construction Top: Polyester with outside hard-surface coating with clear or antiglare finish. Inside: Transparent conductive coating. Bottom: Glass substrate with uniform resistive coating. Top and bottom layers separated by patented separator dots. Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). This equates to less than ±1%. -
Page 32: Acoustic Pulse Recognition Specifications
Acoustic Pulse Recognition Specification MECHANICAL Input method Finger, finger nail, gloved hand, or stylus activation ELECTRICAL Position accuracy 1% max. error Resolution accuracy Touchpoint density is based on controller resolution of 4096 x 4096 Touch activation force Typically 2 to 3 ounces (55 to 85 grams) Controller Board: USB 1.1 OPTICAL... -
Page 33: 15" Lcd Touchmonitor (Et1515L-Xxxc-1-G) Dimensions
15” LCD Touchmonitor (1515L-XXXC-1-G) Dimensions C-34 User Guide... -
Page 34: Regulatory Information
EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 35 This Information Technology Equipment (ITE) is required to have a CE Mark on the manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 89/336/EEC indicated in European Standard EN 55022 Class B and the Low Voltage Directive 73/23/EEC as indicated in European Standard EN 60950.
- Page 37 38 User Guide...
- Page 38 ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 (three) years. Seller makes no warranty regarding the model life of components.
-
Page 39: Warranty
THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARD- ING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE. -
Page 40: Index
NDEX Image, scrolling, 23 Numerics Input Signal, 30 15" LCD Touchmonitor (1515L-XXXC-1-G) Installing APR USB Touch Driver for Windows XP, 16 Dimensions, 32 Installation and Setup, 9 Installing the Driver Software, 12 Installing the Serial Touch Driver, 13 About the Product, 8 Installing the Serial Touch Driver for MS-DOS and About Touchmonitor Adjustments, 17 Windows 3.1, 14... - Page 41 Signal Connector, 30 VGA, 25 Solutions to Common Problems, 23 Viewing Angle, 30 Storage Conditions, 30 Visual Resolution, AccuTouch, 31 Surface Durability, AccuTouch, 31 SVGA, 25 SXGA, 25 Warranty, 37 Weight (Net), 30 Technical Specifications, 29 Touch Activation Force, AccuTouch, 31 Touch Interface Connection, 11 XGA, 25 Touch not working, 23...
- Page 42 Check out Elo TouchSystems Web site! www.elotouch.com Get the latest... • Product information • Specifications • News on upcoming events • Press release • Software drivers Getting in Touch with Elo To find out more about Elo’s extensive range of touch solutions, visit our Web site at www.elotouch.com or simply call the office nearest you: North American Europe...
