Summary of Contents for Tyco Electronics Elo ET1537L Series

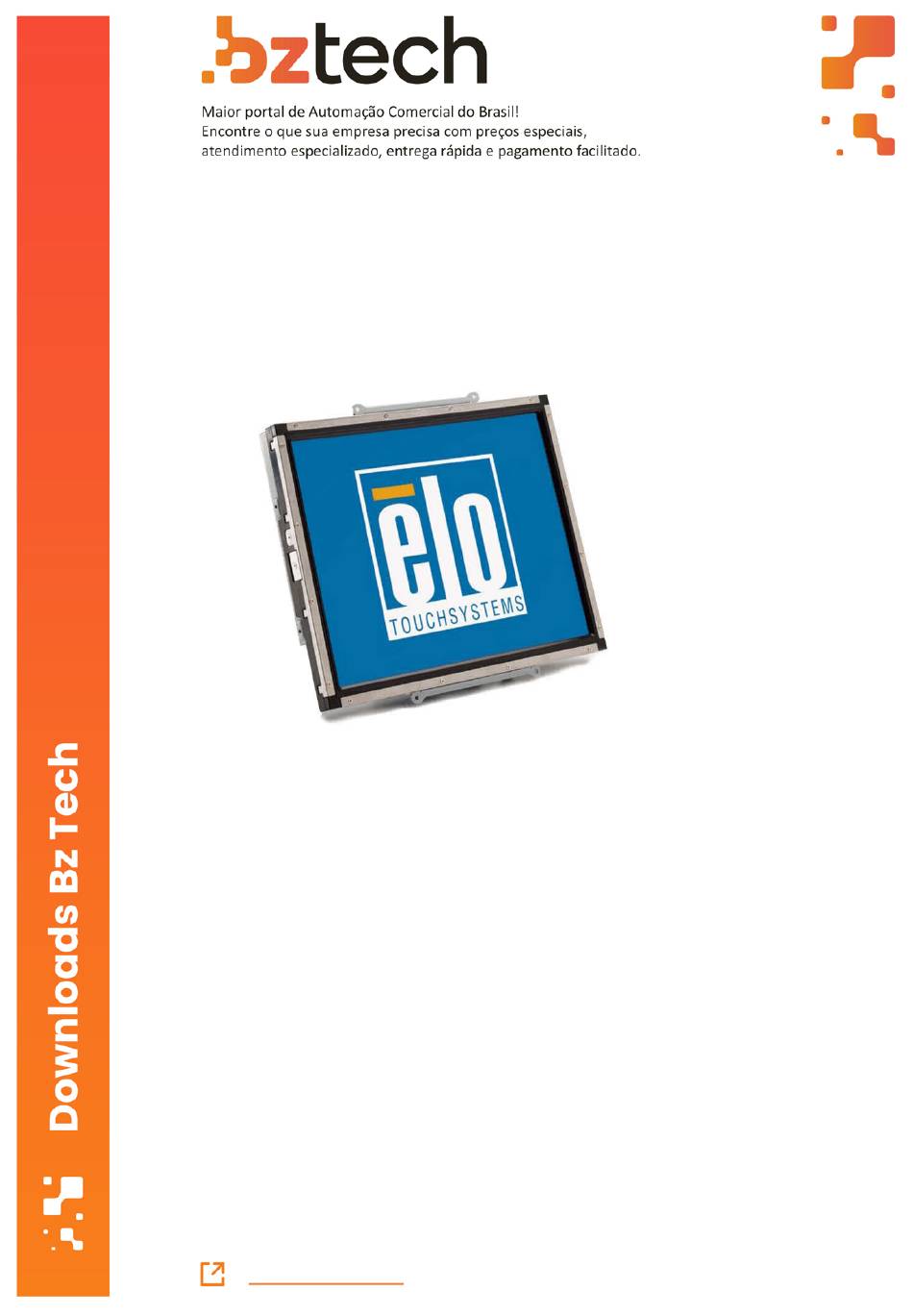

  • Page 1 Monitor Elo 1537L O monitor Elo Touch ET1537L é fabricado com materiais extremamente resistentes, possui vedação para suportar derramamentos de água, gordura e poeira, tudo isso para gerar um longo ciclo de vida, diminuindo tempo de inatividade e custos com manutenção. bztech.com.br...
  • Page 2 Touchmonitor User Guide 1537L 15¨ LCD Kiosk Touchmonitor 1000 Series Revision A...
  • Page 3 User Guide 15" LCD KIOSK TOUCHMONITOR ET1537L Series Revision A P/N E250918...
  • Page 4 Copyright © 2005 Elo TouchSystems Inc. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written per- mission of Elo TouchSystems.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Regulatory Information Introduction Warranty Product Description ........... 7 Index Precautions ..............7 Chapter 2 Installation and Setup ........9 Unpacking Your Touchmonitor ........9 Product Overview ............10 Main Unit .............. 10 Rear View ............10 Touch Interface Connection ........

  • Page 6: Product Description

    C H A P T E R NTRODUCTION Product Description Your new touchmonitor combines the reliable performance of touch technology with the latest advances in (LCD) display design. This combination of features creates a natural flow of informa- tion between a user and your touchmonitor. This LCD monitor incorporates a 15”...
  • Page 7 About the Product Your LCD desktop touchmonitor is a 15” XGA TFT color display with the following features: • The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies between 31.5 KHz and 60.2 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency.

  • Page 8: Installation And Setup

    C H A P T E R NSTALLATION AND ETUP This chapter discusses how to install your LCD touchmonitor and how to install the driver software. Unpacking Your Touchmonitor Check that the following 8 items are present and in good condition: LCD monitor Video cable USB cable...

  • Page 9: Product Overview

    Touch Interface Connection Before connecting the cables to your touchmonitor and PC, be sure that the computer and Note: touchmonitor are turned off. Adapter Video Cable Serial Cable USB Cable 1. Connect one end of the power adapter to the monitor and the other end to the connector of the power cord.
  • Page 10 Product Overview Main Unit Rear View 2-11...

  • Page 11: Installing The Driver Software

    Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows XP • Windows 2000 • Windows Me • Windows 98 •...

  • Page 12: Installing The Serial Touch Driver

    Installing the Serial Touch Driver Installing the Serial Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT 4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install NOTE: the driver. 1 Insert the Elo CD-ROM in your computer's CD-ROM drive. 2 If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program.

  • Page 13: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1

    Installing the Serial Touch Driver for MS-DOS and Windows 3.1 You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive.

  • Page 14: Installing The Usb Touch Driver

    Installing the USB Touch Driver Installing the USB Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT 4.0 1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. If Windows 98, Windows Me or Windows 2000 starts the Add New Hardware Wizard. 2 Choose Next.
  • Page 15 2-16 User Guide...

  • Page 16: Operation

    C H A P T E R PERATION About Touchmonitor Adjustments Your touchmonitor will not likely require adjustment. Variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your touchmonitor should be operating in native resolution, that is 1024 x 768 at 60k-75 Hz.

  • Page 17: Front Panel Controls

    Front Panel Controls MENU Control Function 1 Menu/Exit Display/exits the OSD menus. 1. Enter contrast of the OSD. 2. Increase value of the adjustment item. 3. Select item counter-clockwise. 1. Enter brightness adjustment. 2. Decrease value of the adjustment item. 3.

  • Page 18: Controls And Adjustment

    Controls and Adjustment OSD Menu Functions To Display and Select the OSD Functions: 1 Press the Menu key to activate the OSD menu. 2 Use to move counter-clockwise through the menu. Press the Enter key, the parameter will be highlighted when selected. 3 To quit the OSD screen at any time during the operation, press the Menu key.

  • Page 19: Osd Control Options

    OSD Control Options Control Description Contrast Increases or decreases contrast. Brightness Increases or decreases brightness. V-Position Moves the screen up or down. H-Position Moves the screen left or right. Recall Defaults Returns the monitor to its default settings. Press to select 9300, 6500, 5500, 7500 and USER. Only when selecting USER can you make adjustments to the R/G/B content.

  • Page 20: Preset Modes

    Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When none of the mode is matched, the user can store their preferred modes in the user modes.

  • Page 21: Power Management System

    Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use. Power Mode Consumption <30W Sleep <4W <2W We recommend switching the monitor off when it is not in use for a long time. The monitor automatically goes through the Power Management System (PMS) steps NOTE: when it is idle.

  • Page 22: Troubleshooting

    C H A P T E R ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond Check that the monitor’s Power Switch is on.
  • Page 23 4-24 User Guide...
  • Page 24 A P P E N D I X ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1024 x 768 for the 15 inch size. In almost all cases, screen images look best when viewed at their native resolution.
  • Page 25 As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
  • Page 26 A P P E N D I X OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case.

  • Page 27: Care And Handling Of Your Touchmonitor

    Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning.
  • Page 28 A P P E N D I X ECHNICAL PECIFICATIONS C-29...

  • Page 29: Touchmonitor Specifications

    Touchmonitor Specifications Model ET1537L LCD Display 15” TFT Active Matrix Panel Display Size 304.(H) x 228.(V) mm Pixel Pitch 0.297(H) x 0.297(V) mm Display Mode VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz) SVGA 800 x 600 (56 / 60 / 72/ 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz) Max.

  • Page 30: Accutouch Touchscreen Specifications

    AccuTouch Touchscreen Specifications Mechanical Construction Top: Polyester with outside hard-surface coating with clear or antiglare finish. Inside: Transparent conductive coating. Bottom: Glass substrate with uniform resistive coating. Top and bottom layers separated by patented separator dots. Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). This equates to less than ±1%.

  • Page 31: 15" Lcd Touchmonitor (Et1537L-Xxwa-1) Dimensions

    15” LCD Touchmonitor (ET1537L-XXXA-1) Dimensions C-32 User Guide...

  • Page 32: Chapter 1 Regulatory Information

    EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 33 This Information Technology Equipment (ITE) is required to have a CE Mark on the manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 89/336/EEC indicated in European Standard EN 55022 Class B and the Low Voltage Directive 73/23/EEC as indicated in European Standard EN 60950.
  • Page 34 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE E141667 EN60950 MPR II ENERGY STAR N10051...
  • Page 35 36 User Guide...

  • Page 36: Introduction 7 Warranty

    ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 (three) years. Seller makes no warranty regarding the model life of components.
  • Page 37 THESE REMEDIES SHALL BE THE BUYER¡¦S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARD- ING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.

  • Page 38: Index

    NDEX Image, scrolling, 23 Numerics Input Signal, 30 15" LCD Touchmonitor (ET1515L-XXWA-1) Installation and Setup, 9 Dimensions, 32 Installing the Driver Software, 12 Installing the Serial Touch Driver, 13 Installing the Serial Touch Driver for MS-DOS and About the Product, 8 Windows 3.1, 14 About Touchmonitor Adjustments, 17 Installing the Serial Touch Driver for Windows XP,...
  • Page 39 Signal Connector, 30 VGA, 25 Solutions to Common Problems, 23 Viewing Angle, 30 Storage Conditions, 30 Visual Resolution, AccuTouch, 31 Surface Durability, AccuTouch, 31 SVGA, 25 SXGA, 25 Warranty, 37 Weight (Net), 30 Technical Specifications, 29 Touch Activation Force, AccuTouch, 31 Touch Interface Connection, 11 XGA, 25 Touch not working, 23...
  • Page 41 Check out Elo’s Web site! www.elotouch.com Get the latest... • Product information • Specifications • News on upcoming events • Press releases • Software drivers Getting in Touch with Elo To find out more about Elo’s extensive range of touch solutions, visit our Web site at www.elotouch.com or simply call the office nearest you: USA &...
