Tyco Electronics elo 1000 Series User Manual

17¨ lcd desktop touchmonitor
Hide thumbs Also See for elo 1000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

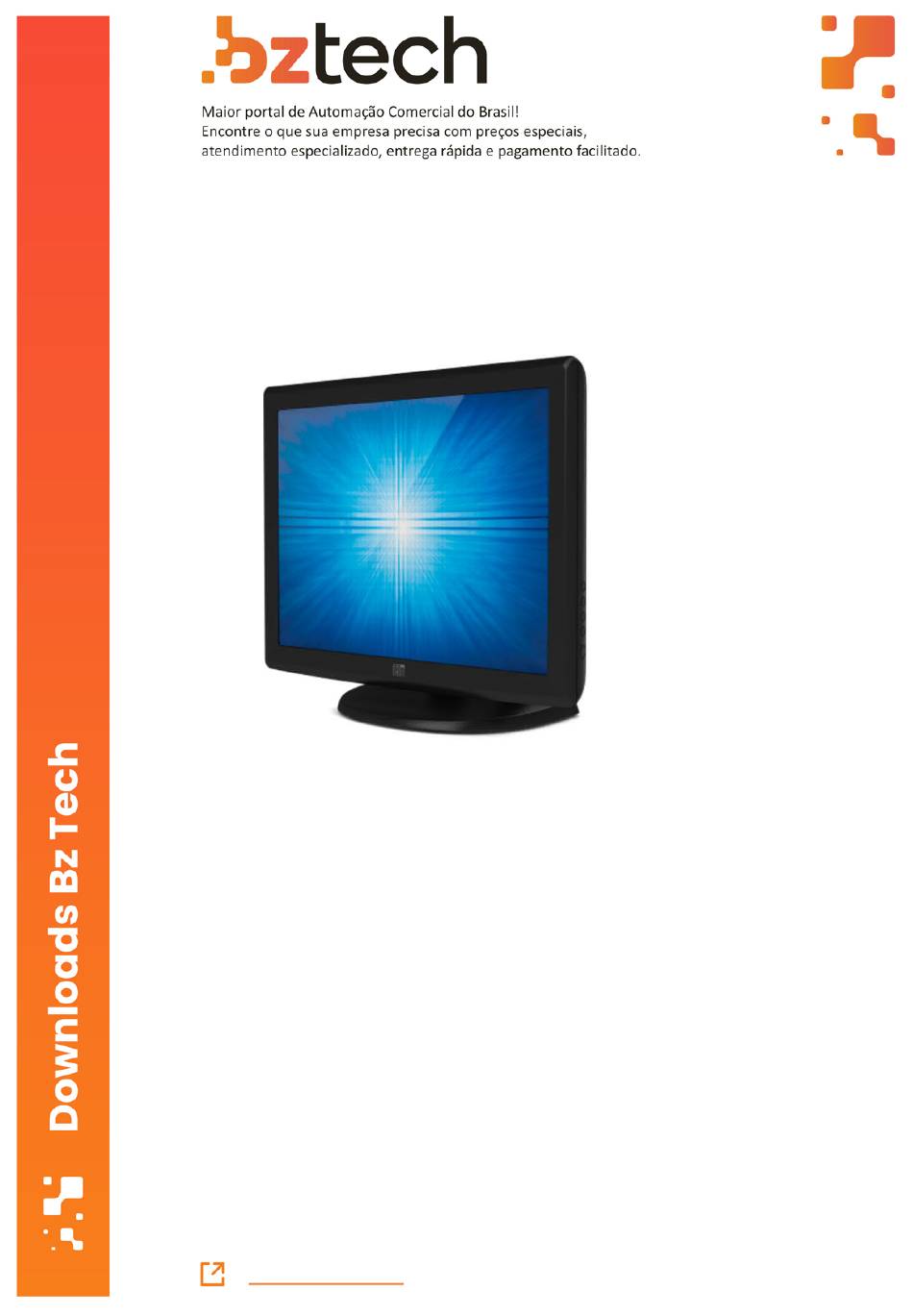

Monitor Elo 1715L
O monitor touchscreen 1715L da Elo foi projetado e fabricado para
fornecer a melhor relação de custo x benefício para integradores de
sistemas e aplicações de automação.
bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the elo 1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tyco Electronics elo 1000 Series

Summary of Contents for Tyco Electronics elo 1000 Series

  • Page 1 Monitor Elo 1715L O monitor touchscreen 1715L da Elo foi projetado e fabricado para fornecer a melhor relação de custo x benefício para integradores de sistemas e aplicações de automação. bztech.com.br...
  • Page 2 Touchmonitor User Guide 1715L 17¨ LCD Desktop Touchmonitor 1000 Series...
  • Page 3 User Guide 17" LCD Desktop ET1715L Series Revision C P/N E183495...
  • Page 4 Copyright © 2008 Tyco Electronics. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise with- out prior written permission of Elo TouchSystems.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1 Introduction Product Description ........... 7 Appendix C Precautions ..............7 Touchmonitor Specifications ........30 IntelliTouch Touchmonitor Specifications ..... 31 Chapter 2 AccuTouch Touchmonitor Specifications ..... 32 Installation and Setup ........9 Surface Capacity Touchscreen Unpacking Your Touchmonitor ........9 Specifications ............

  • Page 6: Introduction

    C H A P T E R NTRODUCTION Product Description Your new touchmonitor combines the reliable performance of touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between a user and your touchmonitor. This LCD monitor incorporates 17”...
  • Page 7 About the Product Your LCD Desktop Touchmonitor is a 17” SXGA TFT color display with the following features: • The internal microprocessor digitally controls auto-scanning, for horizontal scan frequencies between 31.5 KHz and 80 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency.

  • Page 8: Installation And Setup

    C H A P T E R NSTALLATION AND ETUP This chapter discusses how to install your LCD touchmonitor and how to install the driver software. Unpacking Your Touchmonitor Check that the following 8 items are present and in good condition: LCD monitor VGA cable USB cable...

  • Page 9: Product Overview

    Touch Interface Connection Before connecting the cables to your touchmonitor and PC, be sure that the computer and Note: touchmonitor are turned off. DC JACK Power Cord USB Cable Serial Cable Video Cable For APR model only DC JACK Power Cord USB Cable Video Cable 1.
  • Page 10 Product Overview Main Unit Rear View 2-11...

  • Page 11: Installing The Driver Software

    Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows XP • Windows 2000 • Windows Me • Windows 98 •...

  • Page 12: Installing The Serial Touch Driver

    Installing the Serial Touch Driver Installing the Serial Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT4.0 For Windows 2000 and NT 4.0 you must have administrator access rights to install NOTE: the driver. 1 Insert the Elo CD-ROM in your computer's CD-ROM drive. 2 If the AutoStart feature for your CD-ROM drive is active, the system automatically detects the CD and starts the setup program.

  • Page 13: Installing The Serial Touch Driver For Ms-Dos And Windows 3.1

    Installing the Serial Touch Driver for MS-DOS and Windows 3.1 You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive.

  • Page 14: Installing The Usb Touch Driver

    Installing the USB Touch Driver Installing the USB Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT4.0 1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. If Windows 98, Windows Me or Windows 2000 starts the Add New Hardware Wizard: 2 Choose Next.

  • Page 15: Installing Apr Usb Touch Driver For Windows Xp

    Installing APR USB Touch Driver for Windows XP Insert the ELO APR CD-ROM in your computer’s CD-ROM driver. Follow the directions on the screen to complete the APR 2.0 driver setup for your version of Windows. 1 Click Start > Run. 2 Click the Browse button to locate the SW600117.exe program on the CD-ROM.

  • Page 16: Operation

    C H A P T E R PERATION About Touchmonitor Adjustments Your touchmonitor will unlikely require adjustment. Variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your touchmonitor should be operating in native resolution, that is 1280 x 1024 at 80k-75 Hz.

  • Page 17: Front Panel Controls

    Front Panel Controls Control Function 1 Menu/Exit Display/Exits the OSD menus. 1. Enter contrast of the OSD. 2. Increase value of the adjustment item. 3. Select item. 1. Enter brightness adjustment. 2. Decrease value of the adjustment item. 3. Select item counter-clockwise. 4 Select Selects the adjustment items from the OSD menus.

  • Page 18: Controls And Adjustment

    Controls and Adjustment OSD Menu Functions To Display and Select the OSD Functions: 1 Press the Menu key to activate the OSD menu. 2 Use to move clockwise or counterclockwise through the menu. Press the Enter key, the parameter will be highlighted when selected. 3 To quit the OSD screen at any time during the operation, press the Menu key.

  • Page 19: Osd Control Options

    OSD Control Options Control Description Brightness Increases or decreases brightness. Contrast Increases or decreases contrast. H-Position Moves the screen left or right. V-Position Moves the screen up or down. Phase Increases or decreases the snow noise of the image after auto adjustment is made.

  • Page 20: Preset Modes

    Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When none of the mode is matched, the user can store their preferred modes in the user modes.

  • Page 21: Power Management System

    Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use. Power Mode Consumption <50W Sleep <4W <2W We recommend switching the monitor off when it is not in use for a long time. The monitor automatically goes through the Power Management System (PMS) steps NOTE: when it is idle.

  • Page 22: Troubleshooting

    C H A P T E R ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond Check that the monitor’s Power Switch is on.
  • Page 23 4-24 Elo Touchmonitor User Guide...

  • Page 24: Appendix A Native Resolution

    A P P E N D I X ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1280 x 1024 for the 17 inch size. In almost all cases, screen images look best when viewed at their native resolution.
  • Page 25 As an example, a XGA resolution LCD panel has 1024 pixels horizontally by 768 pixels vertically. Input video is also represented by the same terms. SXGA input video has a format of 1280 pixels horizontally by 1024 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
  • Page 26 A P P E N D I X OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case.

  • Page 27: Care And Handling Of Your Touchmonitor

    Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning.
  • Page 28 A P P E N D I X ECHNICAL PECIFICATIONS C-29...

  • Page 29: Touchmonitor Specifications

    Touchmonitor Specifications Model ET1715L LCD Display 17” TFT Active Matrix Panel Display Size 337.9(H) x 270.33(V) mm Pixel Pitch 0.264(H) x 0.264(V) mm Display Mode VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz) SVGA 800 x 600 (56 / 60 / 72/ 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz) Max.

  • Page 30: Intellitouch Touchmonitor Specifications

    IntelliTouch Touchscreen Specifications Mechanical Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%. Touchpoint Density More than 100,000 touchpoints/in2 (15,500 touchpoints/cm2). Touch Activation Force Typically less than 3 ounces (85 grams). Surface Durability Surface durability is that of glass, Mohs’...

  • Page 31: Accutouch Touchmonitor Specifications

    AccuTouch Touchmonitor Specifications Mechanical Construction Top: Polyester with outside hard-surface coating with clear or antiglare finish. Inside: Transparent conductive coating. Bottom: Glass substrate with uniform resistive coating. Top and bottom layers separated by Elo-patented separator dots. Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). This equates to less than ±1%.

  • Page 32: Surface Capacity Touchscreen Specifications

    Surface Capacitive Touchscreen Specifications Mechanical Input method Finger Glass Thickness 0.118" / 3.0 mm nominal. (Glass only, not including tape, wires and/or solder if used) Electrical Positional Accuracy Reported touch coordinates are within 1.5% of true position (based on viewing area dimensions) Resolution Touchpoint density is based on controller resolution of 4096 x 4096...

  • Page 33: Acoustic Pulse Recognition Specifications

    Acoustic Pulse Recognition Specification MECHANICAL Input method Finger, finger nail, gloved hand, or stylus activation ELECTRICAL Position accuracy 1% max. error Resolution accuracy Touchpoint density is based on controller resolution of 4096 x 4096 Touch activation force Typically 2 to 3 ounces (55 to 85 grams) Controller Board: USB 1.1 OPTICAL...

  • Page 34: 17" Lcd Touchmonitor (Et1715L-Xxwa-1-G) Dimensions

    17” LCD Touchmonitor (ET1715L-XXXA-1-G) Dimensions C-35...
  • Page 35 C-36 Elo Touchmonitor User Guide...

  • Page 36: Regulatory Information

    EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 37 interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors. 1) In order to meet emission and immunity requirements, the user must observe the following: a) Use only the provided I/O cables to connect this digital device with any computer. b) To ensure compliance, use only the provided manufacturer’s approved line cord.

  • Page 38: Warranty

    ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 (three) years. Seller makes no warranty regarding the model life of components.
  • Page 39 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
  • Page 40 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This class B digital apparatus meets all requirements of the Canadian Interference-Causing Equip- ment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

  • Page 41: Index

    NDEX Numerics Gloss, IntelliTouch, 31 17" LCD Touchmonitor (ET1715L-XXWA-1-G) Dimensions, 3 Image problem, 23 Image, scrolling, 23 Input Signal, 30 About the Product, 8 Installing APR USB Touch Driver for Windows XP, 16 About Touchmonitor Adjustments, 17 Installation and Setup, 9 AccuTouch Touchmonitor Specifications, 32 Installing the Driver Software, 12 Acoustic Pulse Recognition Specifications, 34...
  • Page 42 Rear View, 10 Regulatory Information, 37 Response Time, 30 Sealing Optical, 31 Signal Connector, 30 Solutions to Common Problems, 23 Storage Conditions, 30 Surface Capacity Touchscreen specification, 33 Surface Durability, 31 SVGA, 25 SXGA, 25 Technical Specifications, 29 Touch Activation Force, 31 Touch Interface Connection, 11 Touch not working, 23 Touch Panel (optional), 30...
  • Page 43 To find out more about Elo’s extensive range of touch solutions, visit our Web site at www.elotouch.com or simply call the office nearest you: North America Germany Belgium Asian-Pacific Elo TouchSystems Tyco Electronics Raychem GmbH Tyco Electronics Raychem GmbH Sun Homada Bldg. 2F 301 Constitution Drive, (Elo TouchSystems Division) (Elo TouchSystems Division) 1-19-20 Shin-Yokohama...
  • Page 44 LCD Touchmonitor / ET1715L ⇓ Seat Assembly→Enclosure Assembly→PCB Board/Protection CoverAssembly → Front Frame Assembly→ LCD Assembly→ BacklightModule→Lamp/Rear CoverAssembly ⇓ Power Cord A ⇓ Power Cord B ⇓ VGA Cord ⇓ Serial Cord ⇓ USB Cord...
