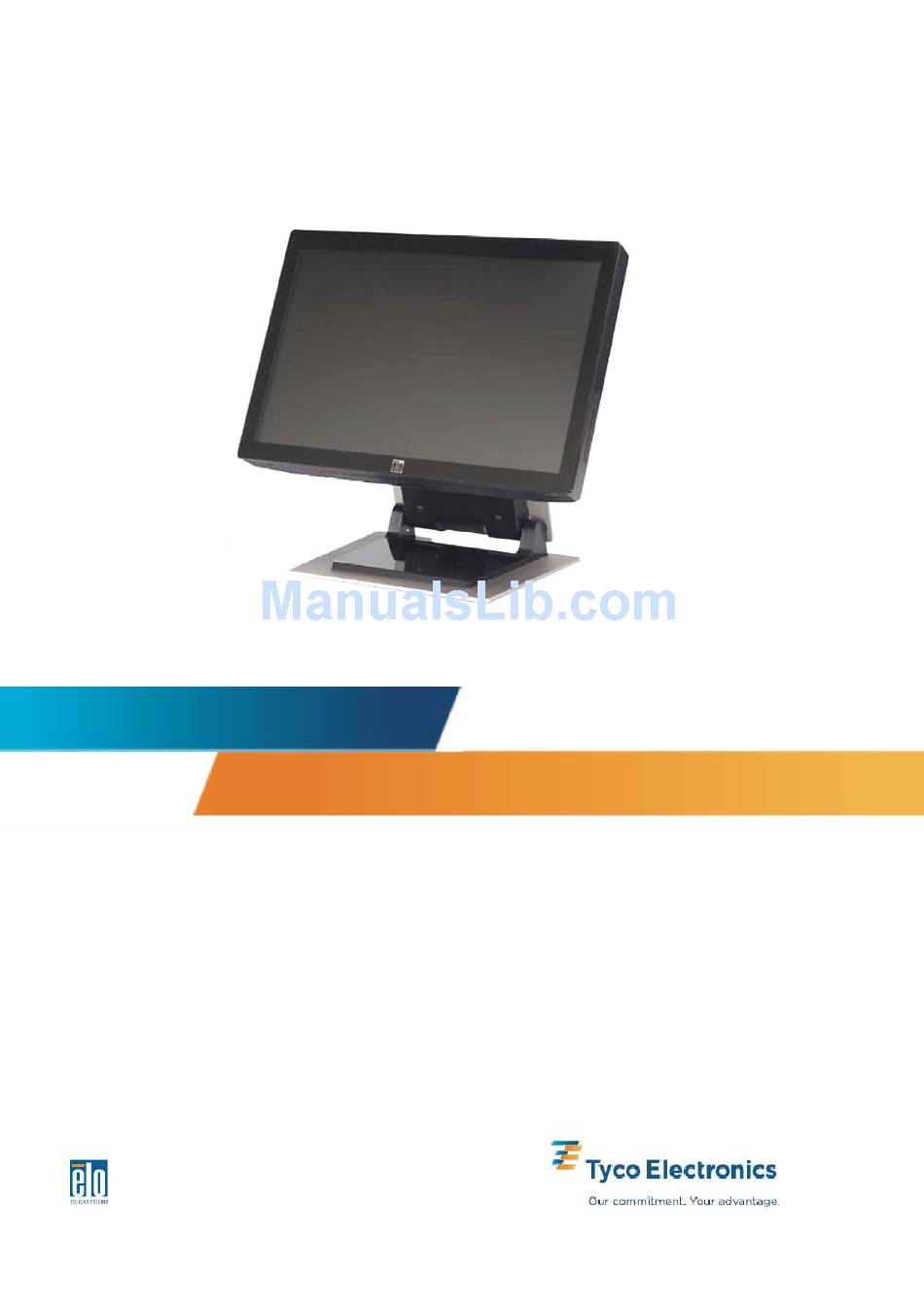

- Page 1 2200L 22-inch LCD Touchmonitor User Guide [Model ET2200L]...
-
Page 2: User Guide
Elo TouchSystems 2200L 22-inch LCD Touchmonitor User Guide Revision A P/N E945960 Elo TouchSystems 1-800-ELOTOUCH www.elotouch.com... - Page 3 Elo TouchSystems to notify any person of such revisions or changes. Trademark Acknowledgments IntelliTouch, APR (Acoustic Pulse Recognition), Elo TouchSystems, TE Logo, and Tyco Electronics are trademarks. Other product names mentioned herein may be trademarks or registered trademarks of their respective companies. Elo TouchSystems claims no interest in trade- marks other than its own.
-
Page 4: Table Of Contents
Table of Contents Chapter 1: Introduction ... 5 About the Product ... 5 Precautions ... 6 Chapter 2: Installation and Setup ... 7 Unpacking Your Touchmonitor ... 8 Connecting the Cables to the Touchmonitor and Computer ... 9 Installing the Touch Driver ... 10 Monitor Overview and Dimensions ... -
Page 5: Chapter 1: Introduction
About the Product The Elo TouchSystems 2200L touchmonitor senses touch on the display in a completely new way, by recognizing the unique pattern of sounds. Consisting only of a glass overlay mounted in front of the LCD panel, Elo’s 2200L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face. -
Page 6: Precautions
• VGA and DVI-D video input (DVI-D not available in Europe) • Space-saving built-in speakers • Sealed screen is resistant to water, dust, grease • One-time factory calibration for easy deployment and integration • Pure glass construction provides superior optical performance and the true-flat surface is easy to clean •... -
Page 7: Chapter 2: Installation And Setup
C H A P T E R INSTALLATION AND SETUP This chapter discusses how to install and set up your LCD touchmonitor and how to install Elo TouchSystems driver software. -
Page 8: Unpacking Your Touchmonitor
Unpacking Your Touchmonitor Check that the following items are present: Touchmonitor Input Audio Power Cable Cable AND/ USB Cable Serial Cable (not included with APR models) AND/ VGA Video Cable DVI-D Cable TouchTools or APR CD and (not included with Quick Install Guide European models) Elo TouchSystems 2200L User Guide 8... -
Page 9: Connecting The Cables To The Touchmonitor And Computer
Connecting the Cables to the Touchmonitor and Computer Connector Panel Underneath the Monitor Power To connect the touchmonitor to the computer: Tilt the monitor to reveal the connector panel in the recessed area underneath the bottom edge of the monitor. Connect the AC power cable to the connector panel and connect the other end to the power outlet. -
Page 10: Installing The Touch Driver
Installing the Touch Driver Your Elo touchmonitor is Plug-and-Play compliant. Information on the video capabilities of the touchmonitor is sent to the video display adapter when the computer’s operating system starts. If the computer’s operating system detects the touchmonitor, follow the instructions on the screen to install a generic Plug-and-Play monitor. -
Page 11: Monitor Overview And Dimensions
Monitor Overview and Dimensions Note: Dimensions are in millimeters. Detailed mechanical illustrations can be found at: www.elotouch.com Elo TouchSystems 2200L User Guide 11... -
Page 12: Monitor Mounting And Orientation
Monitor Mounting and Orientation Option 1— Mount on Flat Surface with Stand Landscape Orientation shown above Portrait Orientation shown above Elo TouchSystems 2200L User Guide 12... - Page 13 Monitor Mounting and Orientation (continued) Option 2 — Mount using VESA Rear view of monitor in landscape orientation shown above Rear view of monitor in portrait orientation shown above Elo TouchSystems 2200L User Guide 13...
- Page 14 Monitor Mounting and Orientation (continued) Attaching the Stand to a Mounting Surface Option 1 — Mounting from the top. Slide out stand base cover. Use 4 screws to attach stand to surface. Option 2 — Mounting from the bottom. Attach to the surface using the holes shown above. Elo TouchSystems 2200L User Guide 14...
-
Page 15: Chapter 3: Operation
C H A P T E R OPERATION About Touchmonitor Adjustments Your touchmonitor probably does not require adjustment. However, variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your video source should be at 1680 X 1050 resolution, at 50–75 Hz refresh rate. -
Page 16: On-Screen Display (Osd) Control Panel
On-Screen Display (OSD) Control Panel The On-Screen Display (OSD) control panel is located on the side of the monitor, as shown above. OSD Control Buttons The OSD control buttons allow you to change settings on the moni- tor screen. The five buttons shown above are: OSD Menu Functions The control buttons have the following functions: MENU... - Page 17 DOWN 1) Adjusts audio volume or selects Mute option (if no OSD is currently displayed on screen) 2) Decreases value of OSD adjustment choice SELECT 1) Selects Analog or Digital 2) Selects adjustment choices from the OSD menus. POWER Turns the monitor on or off. After adjusting the values, the monitor automatically saves the changes.
-
Page 18: Osd Control Options
OSD Control Options Auto Adjust • Automatically adjusts video timing parameters (VGA only). Luminance Brightness • Adjusts the brightness. Contrast • Adjusts the contrast. Image Setting (VGA only) H. position • Moves the image left or right on the screen. V. - Page 19 Recall Color Recall • Restores default color temperature settings. Recall Defaults • Restores original factory settings for H-position, V-position, Clock, and Phase for the current video mode (VGA only). • Restores original factory settings for all other parameters and video inputs, except language. Miscellaneous Aspect Ratio •...
-
Page 20: Preset Display Modes
Preset Display Modes The touchmonitor comes with preset settings for commonly used video modes. It automatically adjusts the picture size and centering for any of the video modes listed in Appendix B, 2200L Specifications, under “Preset Display Modes.” Elo TouchSystems 2200L User Guide 20... -
Page 21: Speakers And Audio Features
Speakers and Audio Features The touchmonitor includes two built-in speakers. To use the speakers, plug in the audio cable to the Audio Input port shown in the illustration below, and connect the other end to your computer. To use headphones, plug in the headphones to the Audio Output port shown in the illustration below. -
Page 22: Chapter 4: Troubleshooting
If you are experiencing trouble with your touchmonitor, refer to the table below. If the problem persists, please contact your local dealer or our service center. Elo Technical Support numbers are listed on the follow- ing page. Solutions to Common Problems Problem The monitor does not respond after you turn on the system... -
Page 23: Technical Support
Technical Support To contact technical support online, please go to: www.elotouch.com/go/contactsupport To contact technical support by telephone, please call: 1-800-557-1458 Elo TouchSystems 2200L User Guide 23... -
Page 24: Appendix A: Touchmonitor Safety
TOUCHMONITOR SAFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your touchmonitor, read through this manual, especially Chapter 2 (Installation and Setup), and Chapter 3 (Operation). To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case. -
Page 25: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your Elo touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the touchmonitor. There are no user-serviceable parts inside the touchmonitor. Remember to unplug the touchmonitor from the power outlet before cleaning. -
Page 26: Appendix B: Technical Specifications
APPENDIX TECHNICAL SPECIFICATIONS... -
Page 27: 2200L Specifications
Pixel Pitch Preset Display Modes Native Resolution Contrast Ratio Brightness Response Time ET2200L 22” TFT active matrix panel 473.76(H) x 296.1(V) mm .282(H) x .282(V) mm 640 x 480 @ 60Hz 640 x 480 @ 66Hz 640 x 480 @ 72Hz... - Page 28 Display Color Viewing Angle Input Video Signal Input Video Range Video Signal Connector VESA EDID file VESA MCCS protocol Two Internal Speakers Touch Technology Power Input Operating Conditions Storage Conditions Weight 16.7 Million Vertical - 80° to 80° Horizontal - 80° to 80° •...
-
Page 29: Regulatory Information
REGULATORY INFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connec- tion to a different power source than those specified herein may result in improper operation, damage to the equipment, invalidation of war- ranty, or a fire hazard if the requirements are not followed. - Page 30 B) Notice to Users in Canada: This equipment complies with the Class A limits for radio noise emissions from digital apparatus as established by the Radio Interference Regulations of Industry Canada. C) Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided with the equipment.
- Page 31 interference, try to correct the interference by using one or more of the following measures: III. Agency Certifications The following Certifications have been issued for the monitor: • Argentina • Australia • China • China RoHS • EU RoHS • Europe CE •...
-
Page 32: Warranty
WARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. With the exception of the negotiated warranty periods; the warranty for the touchmonitor and components of the product is 3 years. - Page 33 to Buyer or credit to Buyer’s account the purchase price of the Product less depreciation calculated on a straight-line basis over Seller’s stated Warranty Period. THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REM- EDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EX- PRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS...
-
Page 34: Product Information
To find out more about Elo’s extensive range of touch solutions, visit our Website at www.elotouch.com or simply call the office nearest you: North America Germany Elo TouchSystems Tyco Electronics Raychem GmbH 301 Constitution Drive (Elo TouchSystems Division) Menlo Park, CA 94025 Finsinger Feld 1...
