Tyco Electronics Elo 2639L User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

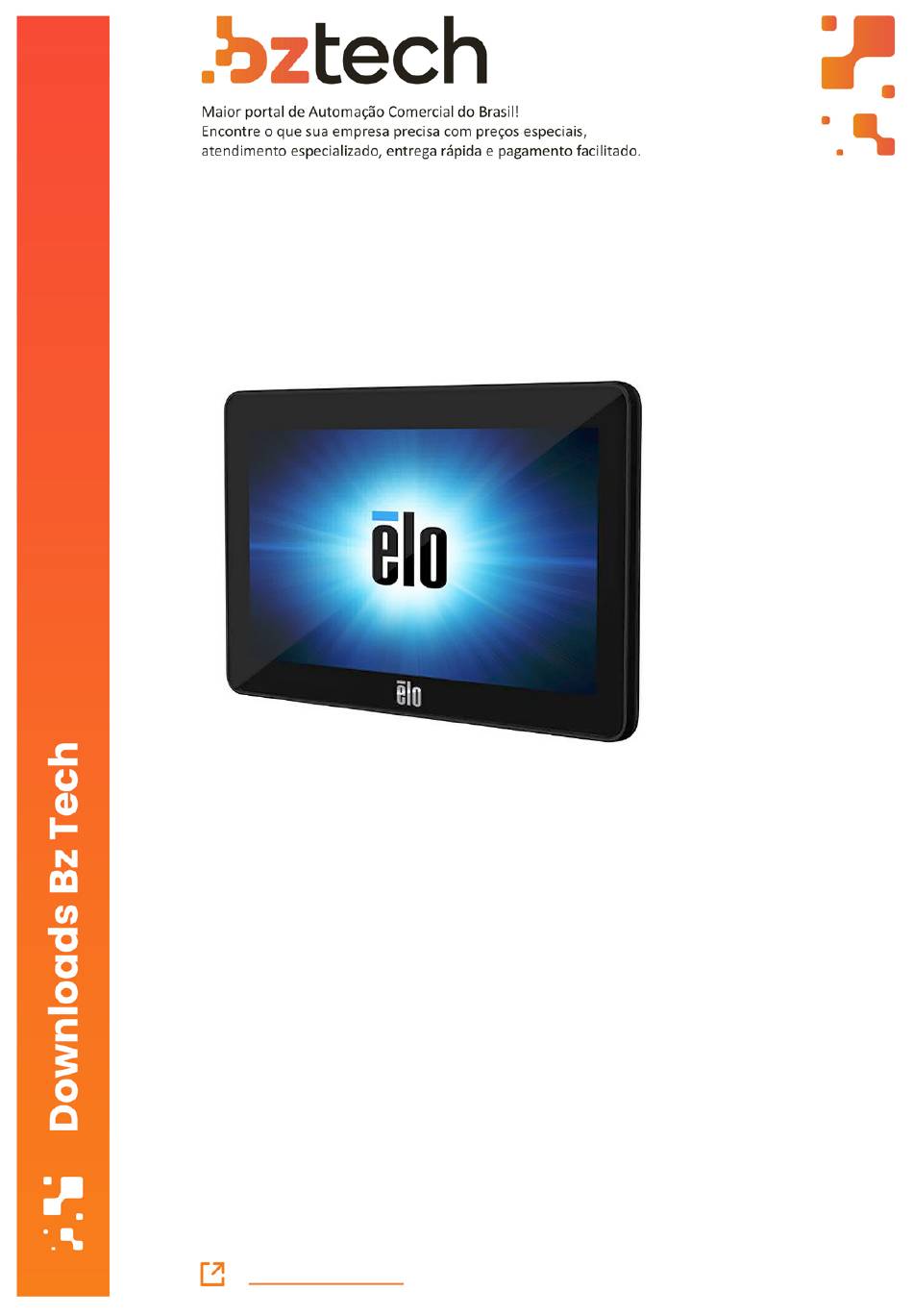

Monitor Elo 2639L
O Monitor Touch Screen Elo Touch ET2639L pode ser utilizado como uma
segunda tela no seu computador para ampliar sua área de trabalho, no
varejo como monitor voltado para o cliente ou mesmo como principal para
aplicações que necessitam de uma tela menor.
bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elo 2639L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tyco Electronics Elo 2639L

Summary of Contents for Tyco Electronics Elo 2639L

  • Page 1 Monitor Elo 2639L O Monitor Touch Screen Elo Touch ET2639L pode ser utilizado como uma segunda tela no seu computador para ampliar sua área de trabalho, no varejo como monitor voltado para o cliente ou mesmo como principal para aplicações que necessitam de uma tela menor.
  • Page 2 ET2639L 26” LCD Touchmonitor User Guide...
  • Page 3 Elo TouchSystems ET2639L 26” LCD Touchmonitor User Guide Revision D P/N E983412 Elo TouchSystems 1-800-ELOTOUCH www.elotouch.com...
  • Page 4 Trademark Acknowledgments IntelliTouch, SC (Surface Capacitive), APR (Acoustic Pulse Recogni- tion), Elo TouchSystems, TE Logo, and Tyco Electronics are trade- marks. Other product names mentioned herein may be trademarks or registered trademarks of their respective companies. Elo TouchSys- tems claims no interest in trademarks other than its own.

  • Page 5: Table Of Contents

    Table of Contents Chapter 1: Introduction ..................5 About the Product ......................5 Chapter 2: Installation And Setup ..............6 Unpacking Your Touchmonitor ..................7 Interface Connection ......................8 Installing the Touch Driver ....................9 Monitor Mounting Orientation ..................11 Chapter 3: Operation ..................

  • Page 6: Chapter 1: Introduction

    C H A P T E R INTRODUCTION About the Product Your new ET2639L Elo TouchSystems Touchmonitor combines the reliable performance of touch technology with the latest advances in Liquid Crystal Display (LCD) design. The monitor comes with the fol- lowing features: •...

  • Page 7: Chapter 2: Installation And Setup

    C H A P T E R INSTALLATION AND SETUP This chapter discusses how to install and set up your LCD touchmonitor and how to install Elo TouchSystems driver software. Elo TouchSystems ET2639L User Guide...

  • Page 8: Unpacking Your Touchmonitor

    Unpacking Your Touchmonitor Check that the following items are present and in good condition: Power cable Touchmonitor DVI-D cable USB Cable Analog Video (not included with ET2639L-xxxx-x-A-x models) CD and Quick Install Guide OSD Control Box Serial Cable (not included with ET2639L-Axxx models) Elo TouchSystems ET2639L User Guide...

  • Page 9: Interface Connection

    Interface Connection Connector Panel on Rear side of Monitor Power Serial Cable (not DVI-D cable Power Cable Analog Video OSD box USB cable included with Button (not included with Cable connector ET2639L-Axxx ET2639L-xxxx-x- models) A-x models) To connect your touchmonitor to your computer: Connect the power cable to the rear panel of the monitor and the other end to the power outlet.

  • Page 10: Installing The Touch Driver

    Installing the Touch Driver Your Elo touchmonitor is Plug-and-Play compliant. Information on the video capabilities of the touchmonitor is sent to the video display adapter when Windows starts. If Windows detects the touchmonitor, follow the instructions on the screen to install a generic Plug-and-Play monitor.
  • Page 11 Choose Next. Select “Search for the best driver for your device (Recommended)” and choose Next. When a list of search locations is displayed, place a checkmark on “Specify a location” and use Browse to select the \EloUSB directory on the Elo CD-ROM. Choose Next.

  • Page 12: Monitor Mounting Orientation

    Monitor Mounting Orientation When the monitor is mounted in the landscape orientation, the cable connection panel must be at the bottom, as shown in the illustration below. Rear View of Monitor—Landscape Orientation Cable connection panel must be at the bottom for proper mounting of the monitor.
  • Page 13 Landscape Mounting Orientation Angle Views The mounting orientation can be up to a 90° angle from vertical, as shown in the illustrations below. Elo TouchSystems ET2639L User Guide...
  • Page 14 Portrait Monitor Orientation Angle Views The mounting orientation can be up to a 90° angle, as shown in the illustration below. Elo TouchSystems ET2639L User Guide...

  • Page 15: Chapter 3: Operation

    C H A P T E R OPERATION About Touchmonitor Adjustments Your touchmonitor will probably not require adjustment. However, variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your video source should be at 1360 x 768 resolution, at 60Hz vertical frame rate.

  • Page 16: On-Screen Display (Osd) Control Box

    On-Screen Display (OSD) Control Box OSD Control Buttons The On-Screen Display (OSD) Control Box, included with your ship- ment, allows you to change settings on the monitor screen. It has four buttons: AUTO/SEL (select) DOWN MENU OSD Menu Functions Use the control buttons for the following functions: Control Function MENU...
  • Page 17 OSD Lock/Unlock You are able to lock and unlock the OSD feature. When the OSD is locked, no OSD can be displayed or used. The monitor is shipped in the unlocked position. To lock the OSD: Press the MENU button and UP button simultaneously for 2 seconds.
  • Page 18 OSD Control Options Auto Adjust • Automatically adjusts video timing parameters (of VGA video only). Luminance Brightness • Adjusts the brightness. Contrast • Adjusts the contrast. Geometry (VGA only) H-position • Moves the image left or right on the screen. V-position •...
  • Page 19 Recall Recall Color • Restores default color temperature settings. Recall Defaults • Restores original factory settings for H-position, V-position, Clock, and Phase for the current video mode (VGA only). • Restores original factory settings for all other parameters and video inputs, except language (VGA and DVI). Miscellaneous Sharpness •...

  • Page 20: Preset Display Modes

    Preset Display Modes The monitor comes with preset settings for commonly used video modes. It will automatically adjust the picture size and centering for any of the video modes listed in Appendix B, ET2639L Specifi cations table, under “Preset Display Modes.” If you make any adjustments to the H-position, V-Position, Clock and Phase video settings via the OSD in a preset display mode, those changes will be automatically saved for that display mode and recalled...

  • Page 21: Chapter 4: Troubleshooting

    C H A P T E R TROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the fol- lowing table. If the problem persists, please contact your local dealer or our service center. Elo Technical Support numbers are listed on page 33.

  • Page 22: Appendix A: Touchmonitor Safety

    APPENDIX TOUCHMONITOR SAFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and power- ing on your new touchmonitor, read through this manual, especially Chapter 2 (Installation and Setup), and Chapter 3 (Operation). To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case.

  • Page 23: Care And Handling Of Your Touchmonitor

    Care and Handling of Your Touchmonitor The following tips will help keep your Elo touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the touchmonitor. The unit is not user serviceable. Remember to unplug the touchmonitor from the power outlet before cleaning.

  • Page 24: Appendix B: Technical Specifi Cations

    APPENDIX TECHNICAL SPECIFICATIONS Elo TouchSystems ET2639L User Guide...

  • Page 25: Et2639L Specifi Cations

    ET2639L Specifi cations Model ET2639L LCD Display 26” TFT Active Matrix Panel Display Size 575.769(H) x 323.712(V) mm Pixel Pitch .4215(H) x .4215(V) mm Preset Display Modes (require no user adjustments of image) 640 x 480 @ 60Hz 800 x 600 @ 56Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 960 @ 60Hz...
  • Page 26 Plug & Play DDC1 and DDC2B Touch Technology (optional) IntelliTouch, Surface Capacitive, or Acoustic Pulse Recognition Power Input 100–240Vac, 50/60Hz, 2.5A Operating Conditions Temp: 0°C to 40°C Humidity: 20% to 80% (No Condensation) Altitude: 0 to 3,658 m Storage Conditions Temp: -20°C to 60°C Humidity: 10% to 90% (No Condensation) Altitude: 0 to 12,192 m...

  • Page 27: Et2639L 26" Lcd Touchmonitor Dimensions

    ET2639L 26” LCD Touchmonitor Dimensions Note: Detailed mechanical fi les can be found at: www.elotouch.com Elo TouchSystems ET2639L User Guide...

  • Page 28: Regulatory Information

    REGULATORY INFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connec- tion to a different power source than those specifi ed herein will likely result in improper operation, damage to the equipment, invalidation of warranty, or a fi...
  • Page 29 B) Notice to Users in Canada: This equipment complies with the Class A limits for radio noise emissions from digital apparatus as established by the Radio Interfer ence Regulations of Industry Canada. C) Notice to Users in the European Union: Use only the provided power cords and interconnecting cabling provided with the equipment.
  • Page 30 2) If this equipment appears to cause interference with radio or television reception, or any other device: a) Verify as an emission source by turning the equipment off and on. b) If you determine that this equipment is causing the interference, try to correct the interference by using one or more of the following measures: i) Move the digital device away from the affected...
  • Page 31 III. Safety Label This device is not intended for use at visual display workplaces in compliance with BildscharbV. The following marks have been issued for the unit and appear on the safety label as shown in the illustration below: Elo TouchSystems ET2639L User Guide...

  • Page 32: Warranty

    WARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. With the exception of the negotiated warranty periods; the warranty for the touchmonitor and components of the product is 3 years.
  • Page 33 Product less depreciation calculated on a straight-line basis over Seller’s stated Warranty Period. THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REME- DIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHER- WISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
  • Page 34 To fi nd out more about Elo’s extensive range of touch solutions, visit our Website at www.elotouch.com or simply call the offi ce nearest you: North America Belgium Germany Asia-Pacifi c Elo TouchSystemss Tyco Electronics Raychem N.V. Tyco Electronics Raychem GmbH Sun Hamada Bldg. 2F 301 Constitution Drive (Elo TouchSystems Division) (Elo TouchSystems Division) 1-19-20 ShinYokohama...
