- Page 1 Wrist Digital Blood Pressure Monitor Model UB-1100BLE Instruction Manual English Original Manuel d’instructions Français Traduction Manual de Instrucciones Español Traducción Manuale di Istruzioni Italiano Traduzione Bedienungsanleitung Deutsch Übersetzung 使用手冊 中文 翻譯 ﺩﻟﻳﻝ ﺍﻹﺭﺷﺎﺩﺍﺕ ﺔ ﻌﺭﺑﻳ ﺍﻟ ﺍﻟﺗﺭﺟﻣﺔ 1WMPD4003739B...
-
Page 2: Table Of Contents
Contents Dear Customers ..............................2 Preliminary Remarks ............................2 Precautions ................................2 Parts Identification ............................... 5 Contents ................................5 Symbols ................................6 Using the Monitor ............................... 10 Measurements ..............................17 What Is The IHB/AFib Indicator? ........................21 What Is The AFib? ............................. 21 WHO Classification Indicator .......................... -
Page 3: Dear Customers
Clean the device and cuff with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the device or cuff. - Page 4 If you have had a mastectomy, please consult a doctor before using the device. Do not let children use the device by themselves and do not use the device in a place within the reach of infants. It may cause accidents or damage.
- Page 5 People who have a severe circulatory deficit in the wrist must consult a doctor before using the device, to avoid medical problems. Do not self-diagnose the measurement results and start treatment by yourself. Always consult your doctor for evaluation of the results and treatment.
-
Page 6: Parts Identification

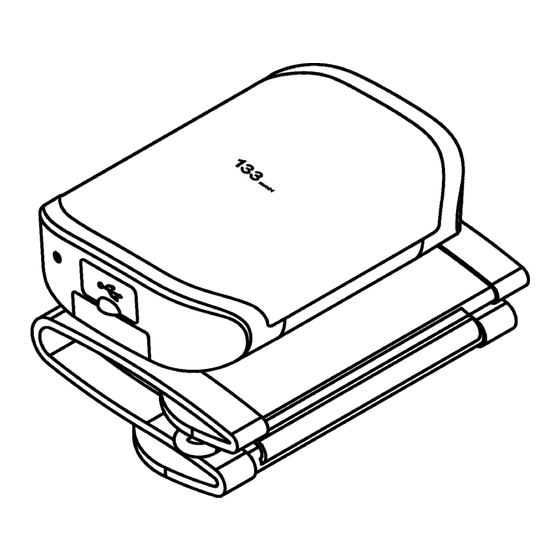

Parts Identification RED LED Start Switch OLED Reset Switch Cuff USB Connector Contents ・1 Blood Pressure Monitor ・1 Instruction Manual ・1 Charging Cable English 5... -
Page 7: Symbols
International protection symbol: IP classification is degrees of protection provided by enclosures in accordance with IEC 60529. This device is protected against solid foreign objects of 12mm diameter and greater such as a finger. This device is not protected against water. - Page 8 HIGH. The height of the blood pressure monitor is as your heart. higher than your heart. Measurement is in progress. Remain as still as Appears while measurement is in progress. possible. Apply the cuff correctly, and take another The pulse is not detected correctly. measurement. /min English 7...
- Page 9 Firmware is updating. Appears when irregular heart beat is detected. Appears when your arm was in the Incorrect position Take another measurement and ensure your wrist is at during measurement, either higher than your heart or the same height as your heart.
- Page 10 Symbols that appear on the display (continued) Symbols Function / Meaning Recommended Action Appears when your arm is in the correct position during measurement. English 9...
-
Page 11: Using The Monitor
Data will be stored on the monitor and transferred to the app on next connection. Multiuser Mode Measurement(In-app): Up to 6 users (5 accounts and 1 visitor) can use and store data on the app. Each user must have a mobile device paired with the monitor. - Page 12 Using the Monitor Charging the Device Battery may be partially charged but be sure to charge the device completely upon first use after purchase. 1. Remove the USB connector cover. 2. Connect the charging cable. 3. During charging, the red LED will illuminate. 4.
- Page 13 Please use the specified charging cable shipped with the device. Blood pressure measurement cannot be done during charging. When disconnecting the AC adapter from the electrical outlet, grasp and pull the AC adapter body out the outlet.
- Page 14 Do not use Bluetooth® connection in the range of a wireless LAN or other wireless devices, near devices that emit radio waves such as microwaves, in locations where there are many obstructions, or in other locations where signal strength is weak. Doing so may result in frequent loss of connection, very slow communication speeds and errors. ...
- Page 15 Bluetooth® Transmission This product is equipped with a Bluetooth® 4.1 wireless function and can connect to the following Bluetooth® devices. Apple iOS v.8.0 or newer Android OS 4.4.4,5.1,6.0, and 7.0 iPhone 4s or newer, Bluetooth® devices Selected iPad touch 5th gen;...
- Page 16 Note: Default is in visitor non memory mode with out paining. CAUTION! The communication distance between this monitor and the receiver device is about 33 feet (10m). This distance can be reduced by the conditions in the surrounding environment, so be sure to check that the distance is short enough for a connection to be made after measurement is complete.
- Page 17 How to Take Accurate Measurements For the most accurate blood pressure measurement: Sit comfortably on a chair. Rest your arm on the table. Do not cross your legs. Keep your feet on the floor and straighten your back. Relax for about five to ten minutes before measurement.
-
Page 18: Measurements
The cuff starts to inflate. It is normal for the cuff to feel tight. The app displays the pressure value once inflation starts. When the measurement is complete, the app and the monitor will display results similar to the icon on the right. - Page 19 6. When the measurement is complete, the monitor will display result similar to the icon on the right. (Systolic, diastolic and pulse rate will scroll.) Note: Press the start button again to turn the monitor off. The monitor is also provided with an automatic power shut-off function.
- Page 20 App Display Multiuser Mede Measurement 1. Up to 5 people can use and store readings on the app. Each user must have a mobile device paired with the monitor. (See pg.15 for pairing instructions.) 2. If you are taking the reading without the app, press the Start button on the monitor to switch between usernames.
- Page 21 Visitor Mode is only available through the monitor. Data is not stored in visitor mode. Notes for Accurate Measurement Sit down in a comfortable position. Place your arm on a table with your palm facing upward and the cuff at the same level as your heart.
-
Page 22: What Is The Ihb/Afib Indicator
(AFib) occurs when the electrical signal in the atrium becomes confused and leads to disturbances in the pulse interval. AFib can cause blood to stagnate in the heat, which can easily create clots of blood, a cause of stroke and heart attack. -
Page 23: About Blood Pressure
Why Measure Blood Pressure at Home? Blood pressure measured at a clinic or doctor's office may cause apprehension and can produce an elevated reading, 25 to 30 mmHg higher than that measured at home. Home measurement reduces the effects of outside influences on blood pressure readings, supplements the doctor's readings and provides a more accurate, complete blood pressure history. - Page 24 Blood Pressure Variations An individual’s blood pressure varies greatly on a daily and seasonal basis. It may vary by 30 to 50 mmHg due to various conditions during the day. In hypertensive individuals’ variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep.
-
Page 25: Settings By App
“Start” button and when the monitor will start measurement. For multiple user, a longer interval is useful. For single users, a shorter interval is useful. Default for single user is set at 1 second and for multiple user is set at 5 seconds. Remove User Allows user to remove himself as a user in the BP monitor. -
Page 26: Settings
The C.P.G. (Correct Position Guidance) indicator is the function to inform a difference HIGH between the height (wrist angle) of the blood pressure monitor and your cardiac height in the correct posture (Example: sitting posture, height of table and chair, etc.) during the LEVEL measurement. - Page 27 The airplane mode feature can be used in an environment than does not allow the emittance of radio frequency. Measurement can be done in airplane mode and data will transfer to the app on next connection. 1. Hold the Start button and the airplane mode select screen will display.
-
Page 28: Troubleshooting
Readings Sit comfortably and still. are too The cuff position is not Place your arm on a table with your palm facing upward and the wrist cuff at high or too correct. the same level as your heart. low. -
Page 29: Maintenance
Maintenance Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, contact the authorized dealer in your area or our customer service department. The A&D customer service will provide technical information, spare parts and units to authorized dealers. - Page 30 Technical Data Wireless communication ZY (MURATA Manufacturing Co. Ltd.) Bluetooth® Ver.4.1 Low Energy Technology BLP Frequency band: 2402 MHz to 2480 MHz Maximum RF output power: 2.1 dBm Modulation:GFSK Operating conditions +10 °C to +40 °C / 15 %RH to 85 %RH/800 hPa to 1060 hPa Transport / Storage conditions -20 °C to +60 °C / 10 %RH to 95 %RH/700 hPa to 1060 hPa Dimensions...
- Page 31 MEMO English 30...
- Page 32 A&D Company, Ltd. 1-243 Asahi , Kitamoto-shi, Saitama 364-8585, JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 Emergo Europe B.V. Prinsessegracht 20, 2514 AP The Hague, The Netherlands Telephone: [31] (70) 345-8570 Fax: [31] (70) 346-7299 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485...
