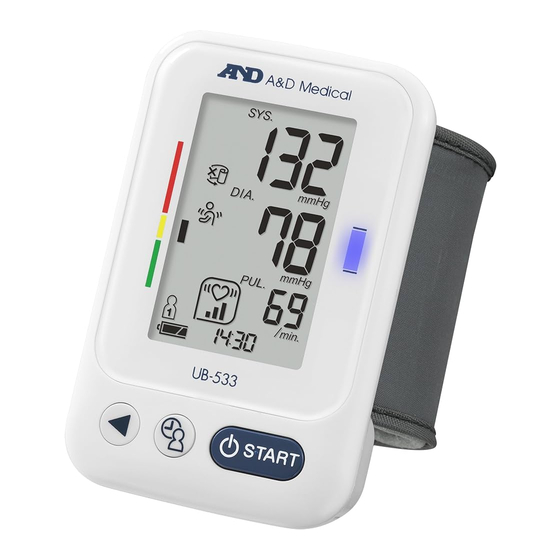

- Page 1 Wrist Digital Blood Pressure Monitor Model UB-533 Instruction Manual Original Manuel d’instructions Traduction Manual de Instrucciones Traducción Manuale di Istruzioni Traduzione 使用手冊 翻譯 1WMPD4003121E...
-
Page 2: Table Of Contents
The C.P.G. Indicator ............................18 About Blood Pressure ............................19 What is Blood Pressure? ..........................19 What is Hypertension and How is it Controlled? ..................19 Why Measure Blood Pressure at Home? ..................... 19 WHO Blood Pressure Classification ......................20 Blood Pressure Variations .......................... -
Page 3: Dear Customers
Precision components are used in the construction of this device. Extremes in temperature, humidity, direct sunlight, shock or dust should be avoided. Clean the device with a dry, soft cloth or a cloth dampened with water and a neutral detergent. Never use alcohol, benzene, thinner or other harsh chemicals to clean the device. - Page 4 If you have had a mastectomy, please consult a doctor before using the device. Do not let children use the device by themselves and do not use the device in a place within the reach of infants. It may cause accidents or damage.
-
Page 5: Parts Identification
Parts Identification button ( average, memory and change of preset parameters) Display button ( user and clock button START Battery cover Cuff Alkaline batteries (LR03 or AAA) Display MEMORY Systolic pressure Average Diastolic pressure WHO classification indicator Correct Position Guidance (C.P.G.) indicator... -
Page 6: Symbols
Standby and Turn the device on Battery installation guide Direct current Serial number Date of manufacture Type BF: Device and cuff are designed to provide special protection against electrical shocks. EC directive medical device label International protection symbol WEEE label Manufacturer... - Page 7 Appears when a body or arm movement is detected. The reading may yield an incorrect value. Take another measurement. Remain still during measurement. Appears during measurement when the cuff is attached loosely. The reading may yield an incorrect value. Apply the cuff correctly, and take another measurement. Deleted rate of IHB/AFib in memory Number of detected...
- Page 8 Take another measurement. Unstable blood pressure due to movement during measurement Remain still during measurement. The systolic and diastolic values are within 10 mmHg of each other. The pressure value did not increase during inflation. Apply the cuff correctly, and take The cuff is not applied correctly.
-
Page 9: Using The Monitor
Use the specified batteries only. The batteries provided with the device are for testing monitor performance and may have a limited life. Remove the batteries if the device is not to be used for a long period of time. The batteries may leak and cause a malfunction. -
Page 10: Selecting A User
START Notes: After three minutes of non-operation, the device will turn off automatically. When the clock has not been set, is indicated for the clock display. When removing the batteries, preset parameters (of clock, user and my C.P.G.) are reset. -
Page 11: Applying The Cuff
For the most accurate blood pressure measurement: Remain still and keep quiet during measurement. Sit down in a comfortable position. Place your elbow on a table with your palm facing upward and the cuff is at the same level as your heart. -
Page 12: The C.p.g. Function Switch
Preset a proper posture (wrist angle) in memory if you use the my C.P.G. . Step 1 [Adjust and keep the height 1. Adjust and keep the height of the blood pressure monitor to of the device (wrist angle) ] the same level as your heart using your wrist angle. -
Page 13: Measurement
Notes: The device is provided with an automatic power shut-off function which stores the current data in the memory and turns the device off automatically one minute after measurement. Allow at least three minutes between measurements on the same person. -
Page 14: Measurements
3. Select a user from user and user using the button immediately. PUL. Adjust and keep the height of the cuff (with blue light) to the same level as your heart using the C.P.G. indicator. User or User : button Notes: If you do not use user selection, wait for the inflation for several seconds. -
Page 15: Recalling The Memory Data
If no data, “0” is displayed. Press the button to turn the START Example: user device off. Average of all the 2. Use the following buttons to display data (of number and measurement data). data Select a user from user and user using the button. -
Page 16: Deleting Data Stored In Memory
AFib can cause blood to stagnate in the heart, which can easily create clots of blood, a cause of stroke and heart attack. -
Page 17: Ihb/Afib
% IHB/AFib %IHB/AFib is displayed as frequency of IHB detected. IHB/AFib can detect not only noises such as physical movement but also an irregular heartbeat.Therefore,we recommend contacting your physician if %IHB/AFib level is high. Number of detected IHB/AFib s in memory %IHB/AFib = x 100 % Total number... -
Page 18: Pressure Bar Indicator
Pressure Bar Indicator The indicator monitors the progress of pressure during measurement. Pressurizing Inflation in progress Measurement in progress Inflation complete WHO Classification Indicator Each six segments of the bar indicator correspond to the WHO Classification Indicator WHO blood pressure classification is described on 20 page. Severe hypertension Moderate hypertension Example... -
Page 19: The C.p.g. Indicator
C.P .G. indicator : LEVEL C.P .G. indicator : HIGH The position of the device is checked both before and after measurement If both checks show a correct measurement position the LEVEL indicator is lit(blue). For all other measurements an indicator for LOW or HIGH measurement Proper Posture position will be lit (orange). -
Page 20: About Blood Pressure
The Indicator During Measurement And Recalling Memory The C.P.G. indicator can be displayed at the beginning of measurement and is included in data stored in the memory. Adjust and keep the angle during measurement. About Blood Pressure What is Blood Pressure? Blood pressure is the force exerted by blood against the walls of the arteries. -
Page 21: Who Blood Pressure Classification
In hypertensive individuals variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep. So, do not be overly concerned by the results of one measurement. -
Page 22: Troubleshooting
Place your arm on a table with your palm facing The cuff position is not correct. Readings are too high upward and the cuff at the same level as your or too low. heart. If you have a very weak or irregular heat beat, the device may have difficulty in determining your blood pressure. -
Page 23: Maintenance
Maintenance Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, contact the authorized dealer in your area or our customer service department. The A&D customer service will provide technical information, spare parts and units to authorized dealers. - Page 24 IP classification is the degrees of protection provided by enclosures in accordance with IEC 60529. This device is protected against solid foreign objects of 12 mm diameter and greater such as a finger. This device is not protected against water.
- Page 25 MEMO English 24...
- Page 26 A&D Company, Ltd. 1-243 Asahi , Kitamoto-shi, Saitama 364-8585, JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 Emergo Europe B.V. Prinsessegracht 20, 2514 AP The Hague, The Netherlands Telephone: [31] (70) 345-8570 Fax: [31] (70) 346-7299 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485...
