Seaflo SFWP1-040-055-42A Installation Manual

TROUBLESHOOTING
PULSATING FLOW– PUMP CYCLES ON AND OFF
Check lines for kinks.
Plumbing lines or fittings may be too small.
Clean faucets and filters.
Check fitting tightness for air leaks.
FAILURE TO PRIME BUT MOTOR OPERATES - NO PUMP DISCHARGE
Restricted intake or discharge line.
Air leak in intake line.
Punctured pump diaphragm.
Initial amp supply is not enough to sufficiently start the motor.
Debris clogged in the valves.
Crack in pump housing.
MOTOR FAILS TO TURN ON
Loose or improper wiring.
Pump circuit has no power.
Blown fuse or thermal protection tripped.
Failed pressure switch.
Defective motor.
PUMP FAILS TO TURN OFF AFTER ALL FIXTURES ARE CLOSED
Punctured diaphragm.
Discharge line leak.
Defective pressure switch.
Insufficient voltage.
Clogged valves in pump head.
LOW FLOW AND PRESSURE
Air leak at pump intake.
Accumulation of debris inside pump or plumbing.
Worn pump bearing (possibly accompanied by loud noise).
Punctured diaphragm.
Defective motor.
NOISY
Check if the mounting feet are compressed too tightly.
Is the mounting surface flexible? If so, it may be adding noise.
Check for loose head/screws.
If the pump is plumbed with rigid pipe, then it may transmit noise more easily.
ABOUT THE BYPASS
Please consult a professional technician in the case that the bypass needs adjustment.
Improper adjustment of the bypass may damage the pump.
The bypass comes preset for optimal operation of the pump. If your application calls for a
different setting for the bypass, you may change it yourself. Carefully tighten the screw to
increase or loosen the screw to decrease the minimum operational pressure of the bypass.
CAUTION
Please do follow the instruction manual to install the product. Any action outside what is
recommended in this manual may bring damage to the pump. Any inappropriate installation
or operation that causes the pump damage is not covered by warranty.
page
4
DC Washdown Pump Kit 4.0GPM 55PSI
Installation Manual
SFWP1-040-055-42A
SFWP2-040-055-42A

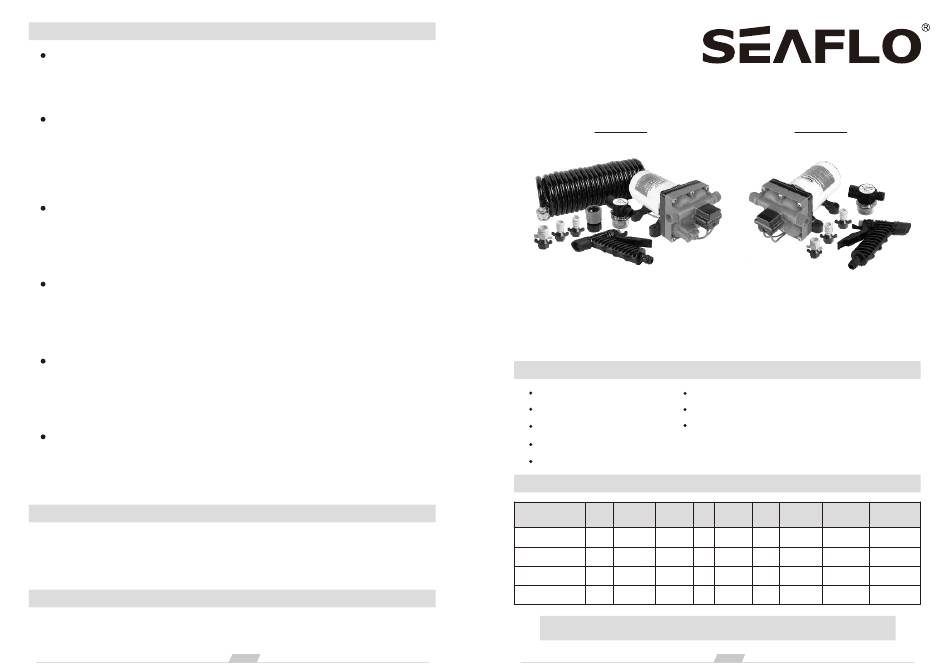

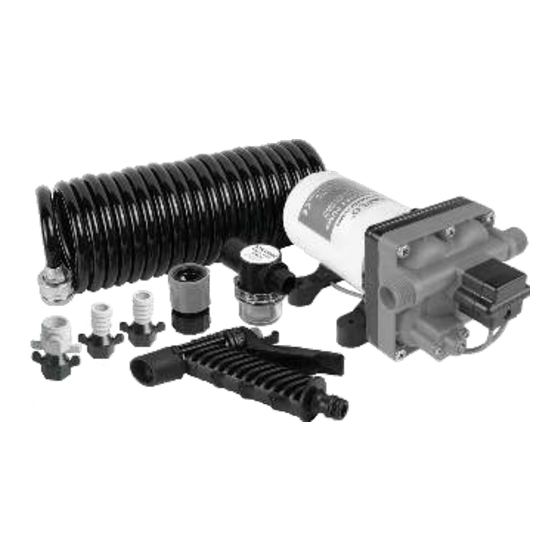

Our heavy-duty washdown kit. The best choice for cleaning boats, fish boxes, anchor wells,
dinghies, and other similar applications. This pump boasts a huge 4.0 GPM capacity. This pump
has an on-demand switch, so the pump automatically turns on when you squeeze the spray gun
handle. With 55 PSI cutoff, this has the pressure to get rid of stubborn debris. Suitable for fresh
and saltwater applications.
FEATURE
&
BENEFIT
4 Independent chambers Intermittent duty
Built-In check valve Anticorrosive stoving varnish coated motor
The best choice for cleaning boats, fish boxes, anchor
Self-Priming up to 1.83 m/6 feet
wells, dinghies, and other similar applications
Spray gun range 10 m/32.81 feet
Dry run capability
SPECIFICATIONS
Control
Open Flow
Voltage
Model
Type
(GPM/LPM)
Demand &
SFWP1-040-055-42A 12V 4.0 / 15.0
By pass
Demand &
SFWP2-040-055-42A 24V 4.0 / 15.0
By pass
Demand &
SFWP1-040-055-42B 12V 4.0 / 15.0
By pass
Demand &
SFWP2-040-055-42B 24V 4.0 / 15.0
By pass
Note: SFWP1-040-055-42A & SFWP2-040-055-42A are featured with 7.5 m (24.61 feet) hose pipe.
SFWP1-040-055-42B & SFWP2-040-055-42B are featured without hose pipe.
page
SFWP1-040-055-42B
SFWP2-040-055-42B
Shut-off
Max
Valves Diaphragm
Pressure Ports
Draw Connections
(PSI/BAR)
EPDM Santoprene 1/2"-14MNPT 2-Pin/Leads
13.0
55 / 3.8
55 / 3.8 EPDM Santoprene 1/2"-14MNPT 2-Pin/Leads
7.0
EPDM Santoprene 1/2"-14MNPT 2-Pin/Leads
13.0
55 / 3.8
55 / 3.8
EPDM Santoprene 1/2"-14MNPT 2-Pin/Leads
7.0
1
Wire
