Seaflo SFDP1-022-070-34 Installation & Maintenance Manual

Seaflo SFDP1-022-070-34 Installation & Maintenance Manual

12/24v diaphragm pump

Advertisement

Installation & Maintenance Manual
Instructions for Assembly, Testing, Operation, Servicing, and Storage
12/24V Diaphragm Pump:
For use with agricultural pesticides and
other liquids**
WARNING
!
READ and UNDERSTAND the Owner's Manual completely before using this
Pump.
Assemble, test, and use only in accordance with the Owner's Manual instructions.
READ and FOLLOW chemical safety instructions.
Pesticides are hazardous chemicals.
KNOW emergency procedures BEFORE handling chemicals.Pump leaks, bodily
chem ical cont act, poison ing, and s pills req uire immed iate response.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
WEAR personal protective gear when operating, cleaning, and servicing the
pump
KEEP pump and spray materials always from children and pets. Pesticides are
espec ially t ox ic to them.
DO NOT TURN ON POWER to pump until ready to spray in order to avoid
unintentio nal sp ray release.
Improper use of the pump or handling of chemicals could result in serious
injury or illness to the operator or nearby persons/animals, or could cause
damage to the environment.
**This pump is recommended for use in spraying non-flammable liquids such as pesticides,
water for plants/trees or dust control, ice control chemicals, or water-based non-flammable
sealants or stains for outdoor wood surfaces. However, WE RECOMMEND THAT THE
PUMP NOT BE USED FOR OTHER PURPOSRS ONCE IT HAS BEEN USED FOR
SPRAYING PESTICIDES.Any chemical will leave some residual in the pump,even after
the pump has been properly cleaned.These residual chemicals can have unexpected effects
on future uses .For example, spraying water or other liquids that are contaminated with
residual pesticide may result in unforeseen hazards to plant or animal life.
Any Question, Comments, Problems, or Parts Orders
Call SEAFLO Product Support

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFDP1-022-070-34 and is the answer not in the manual?

Questions and answers

Tapani Vilja
April 13, 2025

What is the maximum hose size of Seaflo SFDP1-030-060-51/SFDP1-050-060-51?

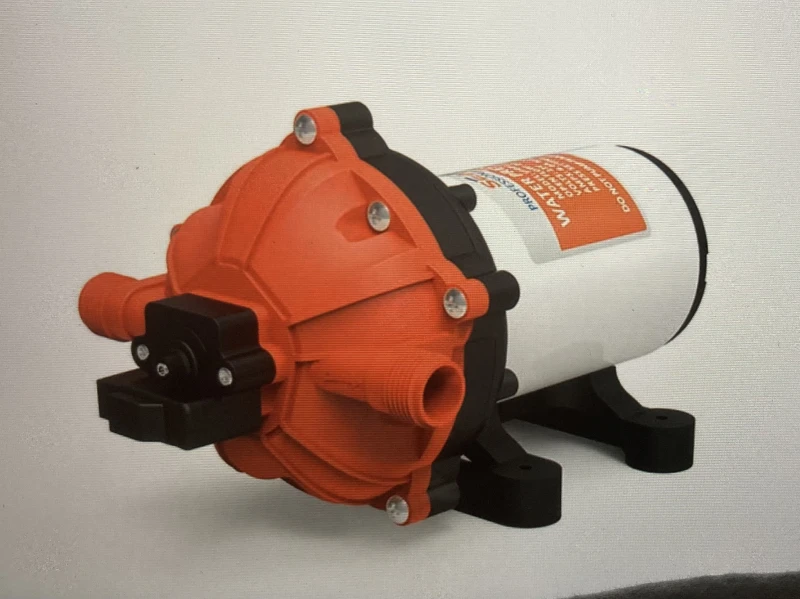

User image 67fc38a2475d3
1 comments:
Mr. Anderson
April 13, 2025

The maximum hose size for Seaflo SFDP1-030-060-51 and SFDP1-050-060-51 is 1/2 inch (13 mm) inside diameter.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Seaflo SFDP1-022-070-34

  • Page 1 .For example, spraying water or other liquids that are contaminated with residual pesticide may result in unforeseen hazards to plant or animal life. Any Question, Comments, Problems, or Parts Orders Call SEAFLO Product Support...
  • Page 2: Table Of Contents

    Intended Use Table of Contents The pump is intended for use in spraying agricultural pesticides and other Intended Use.................3 non-flammable liquids. Summary of Important Safety Information........4 During Assembly SPRAYING PESTICIDES: During Operation General Chemical Safety Pesticides are hazardous chemicals that must be handled with caution as Chemical Applicator Safety directed throughout this manual and on the pesticide label.
  • Page 3: Summary Of Important Safety Information

    Summary of Important Information Summary of Important Information WARNING DO NOT EAT,DRINK,SMOKE,RUB YOUR EYES, or TOUCH YOUR BARE SKIN while handling chemicals and spraying. Read and understand this owner's manual completely before using the NEVER POINT A SPRAY GUN at people or animals. pump.
  • Page 4: Installation

    SFDP2-055-060-51 20.0 BLACK(negative-) (or heavier) NOTE: SEAFLO does not recommend the use of metal fittings or rigid pipe to plumb the inlet/outlet SFDP2-016-100-34 ports. Standard plastic threaded fittings are available by calling SEAFLO Product Support. RED(positive+) SFDP2-040-060-51 #14 A WG(2.5M㎡) In some cases, the ports may require a suitable thread sealer applied sparingly DO NOT over- 10.0...
  • Page 5: Step Four: Check And Test Completed Assembly

    Installation (continued) Operation-Important Safety Information Now that you have completed and tested your assembly,there is some important safety and health information you need to know with regard to handling and spraying chemicals. WARNING Check and test completed assembly Carefully read and make sure you understand the following safety information before using the pump.
  • Page 6: Chemical Applicator Safety

    Operation-Important Safety Information (continued) Operation Important Safety Information (continued) Chemical Application Safety: Chemical accident procedures: WARNING WARNING Caution must be used when spraying chemicals to avoid unsafe exposure to Before you use pump, review the following information with regard to handling humans and the environment.
  • Page 7: Preparing The Pump For Each Use

    Be certain the pump materials will be compatible with the chemical being pimped. North Star pumps are intendedfor intermittent or continuous duty when the proper operating criteria are met. If unsure of the chemical compatibility with the SEAFLO pump components or the motors intended design, please call SEAFLO Product Support...
  • Page 8: Step One: Assess Wind Conditions And Clear Work Area

    It is advisable to purchase a reserve tank suitable for pesticide storage from SEAFLO for use in these circumstances. The container should be properly 2.Wear labeled as to its contents if it is used.
  • Page 9: Step Three: Clean Pump And Decontaminate After Use

    Operation-Using the Pump(continued) Storage Step Three: Clean pump and decontaminate after use. Prepare the pump for end-of-season storage by running RV antifreeze through the system. His will keep internal parts lubricated, protect against corrosion, and keep When done using the sprayer, it is important to clean the pump and decontaminate the unit from freezing.
  • Page 10: Troubleshooting

    It is advisable to purchase a reserve tank suitable Tighten fittings/ Inlet air leak for pesticide storage from SEAFLO for use in these circumstances. The container Replace cracked fittings should be properly labeled as to its contents if it is used.
  • Page 11: Specifications

    Description Item Part# Any question, Comments, Problems or Parts Orders Motor 34Z-01 Call SEAFLO Product Support Diaphragm assembly 34Z-02 Valve plate assembly 34Z-03 Pump head assembly 34Z-04 Pressure switch assembly...
  • Page 12 “tested good” units. Warranty returns will be shipped on a freight allowed basis. SEAFLO reserves the right to choose the method of transportation. SEAFLO is not responsible nor will it reimburse for labor necessary to remove and reinstall a pump, if found defective.
