Key
Description
Quantity
1
Motor cover
1
2
motor
1
3
Motor protection cap
1
4
Oil Seal
3
5
Impeller
1
6
Motor sealing
1
7
Motor Cover
1
8
Screw sealing
2
9
Screw M3*8
2
10
Pump housing
1
11
Non-rotating seal
1
12
Water absorption seal
1
13
Interface seal
1
14
Interface plug
1
15
Short Tee
1
16
Pipe joint
1
17
Lock nut
1
18
Check valve
1
19
wire
2
20
Two-hole line card
1
page
22 21
13E
1
2
3
4
5
6
7
8
18
19
20
9
10
15
17 16
13 14
Key
Description
Quantity
1
Motor cover
1
2
motor
1
3
Motor protection cap
1
4
Oil Seal
3
5
Impeller
1
6
Motor sealing
1
7
Motor Cover
1
8
Screw sealing
2
9
Screw M3*8
2
10
Pump housing
1
11
Non-rotating seal
1
12
Water absorption seal
1
13
Interface seal
1
14
Interface plug
1
15
Inclined Tee
1
16
plate
1
17
Hex screw
1
18
Pipe joint
1
19
Lock nut
1
20
Check valve
1
21
wire
2
22
Two-hole line card
1
12

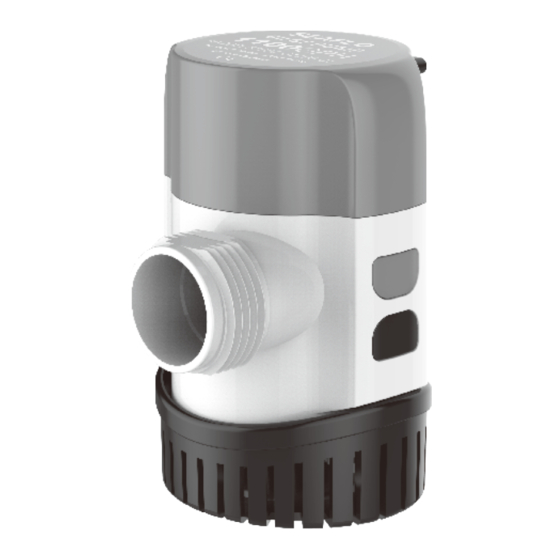

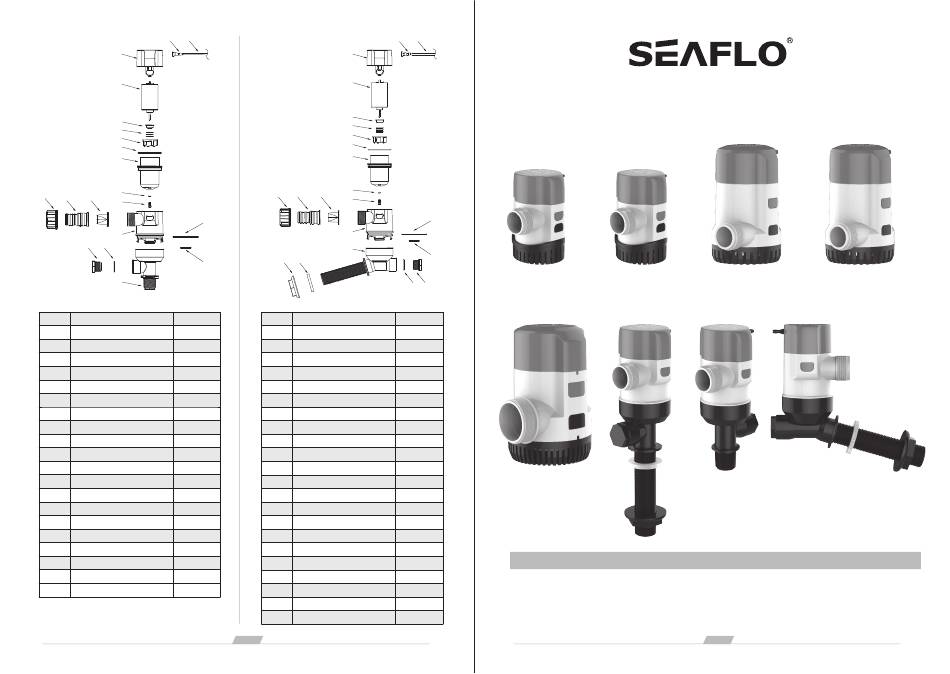

BILGEPUMPANDLIVEWELL
BAITWELLPUMPSMANUALS
11
12
13A
(Non-automatic)
(Water Level Sensing)
13A
(Non-automatic)
3000-3700-4700GPH
Purpose of this manual:
The purpose of this manual is to provide necessary information for product installation, operation and maintenance.
! CAUTION: Read this manual carefully before installing, using or servicing this product. Failure to follow the
instructions within this manual could result in explosion, property damage, severe personal injury and/or death.
13B
13A
(Non-automatic)
1500-2000GPH
13C
13D
page
1
13B
(Electronic Timer Sensing)
1500-2000GPH
13E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seaflo 13A

  • Page 1 20 19 22 21 BILGEPUMPANDLIVEWELL BAITWELLPUMPSMANUALS 16 17 17 16 13 14 (Non-automatic) (Water Level Sensing) (Non-automatic) (Electronic Timer Sensing) 1500-2000GPH 1500-2000GPH Description Quantity Description Quantity Motor cover Motor cover motor motor Motor protection cap Motor protection cap Oil Seal Oil Seal Impeller Impeller...
  • Page 2: User Safety

    Always keep work area clean Pay attention to the risks presented by gas and vapors in the work area 13A/13B 600-800-1100GPH Avoid all electrical dangers. Pay attention to the risks of electric shock or arc flash hazards Always bear in mind the risk of drowning, electrical accidents and burn injuries 46.0mm...
  • Page 3: Typical Installation

    46.0mm MAN OFF AUTO Overload Protector 26.0mm BATTERY Check for water every 2.5 min SEAFLO Submersible Bilge Pump SEAFLO Float Switch 3.8cm 1.5" 0.5 SEC ON 145.0mm 145.0mm 2cm 0.75" 2.5 MIN OFF 13B 600-800-1100GPH Schematic diagram of replacing motor components: 69.0mm...
  • Page 4: Operating Modes

    1 1/2" (40mm) 0.39-1.18"(1-3CM) 1.77"(4.5CM) 3700GPH 7.0A 12.0A 3' (1 m) 2" (52mm) 2.10KG/2.20KG 4700GPH 16.0A 25.0A 3' (1 m) 2.10KG/2.20KG 4700GPH 8.0A 14.0A 3' (1 m) 2.10KG/2.20KG Remarks:600-1500-2000GPH is available for 13A/13B only,3000-3700-4700GPH is available for 13A only. page page...
  • Page 5 Configurations: 13A 1500GPH 13B 1500GPH 13A 600-800-1100GPH 13B 600-800-1100GPH 15 16 Description Quantity Description Quantity Description Quantity Description Quantity Motor cover Strainer Motor cover Strainer PCB board Housing motor Housing PCB board bracket Impeller Motor protection cap Impeller motor Probe Holder...
  • Page 6 13A 2000GPH 13B 2000GPH 13A 3000-3700-4700GPH 18 19 16 17 Description Quantity Motor cover motor Description Quantity Description Quantity Motor protection cap Strainer Strainer Oil Seal Housing Housing Description Quantity Impeller Impeller Impeller Strainer Motor sealing Probe Holder Probe Holder...
