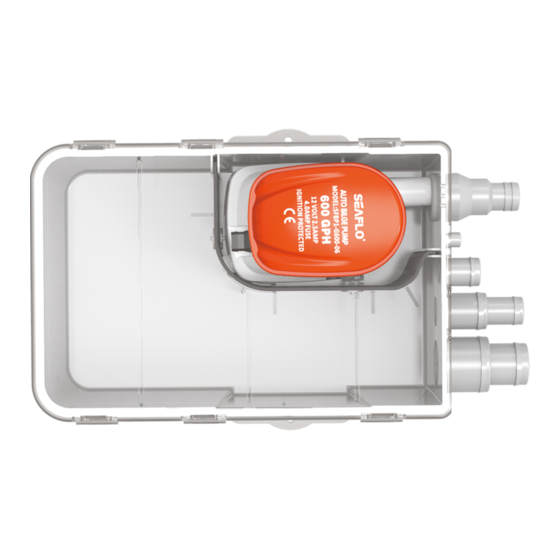

Seaflo SFBP1-G600-07 Instruction Manual

Multi Port Shower Sump Pump
SECURITY
The shower sump pump may not be used for other liquid than water/bilge water.
Always install the pump with black lead negative (-) and brown/brown white lead positive (+).
Always use the fuse required, see "Design features" below.
The wire connections must be sealed with a marine sealant.
All electrical wiring must be clamped with the connections well above the bilge water level. Do not remove
the insulation more than necessary. All wiring connections should be sealed with a marine sealant oxidation.
Do not run dry.
DESIGN FEATURES
Model
SFBP1-G600-07
SFBP2-G600-07
SFBP1-G750-07
SFBP2-G750-07
MOUNTING INSTRUCTIONS
Fasten the shower sump pump to the hull by screws in the four mounting holes.
Instruction Manual
Flow Rate Volt
(GPH) (V)
600GPH 12V
24V
600GPH
750GPH 12V
750GPH 24V
page
Current
Head
(A)
(M)
2.5A 2.5
1.5A 2.5
3.0A 3 .0
1.6A 3 .0
1
Wire Lead
N.W/G.W
(M) (kg)
1m 1.17/1.35
1m
1.17/1.36
1m 1.17/1.37
1m 1.17/1.38
