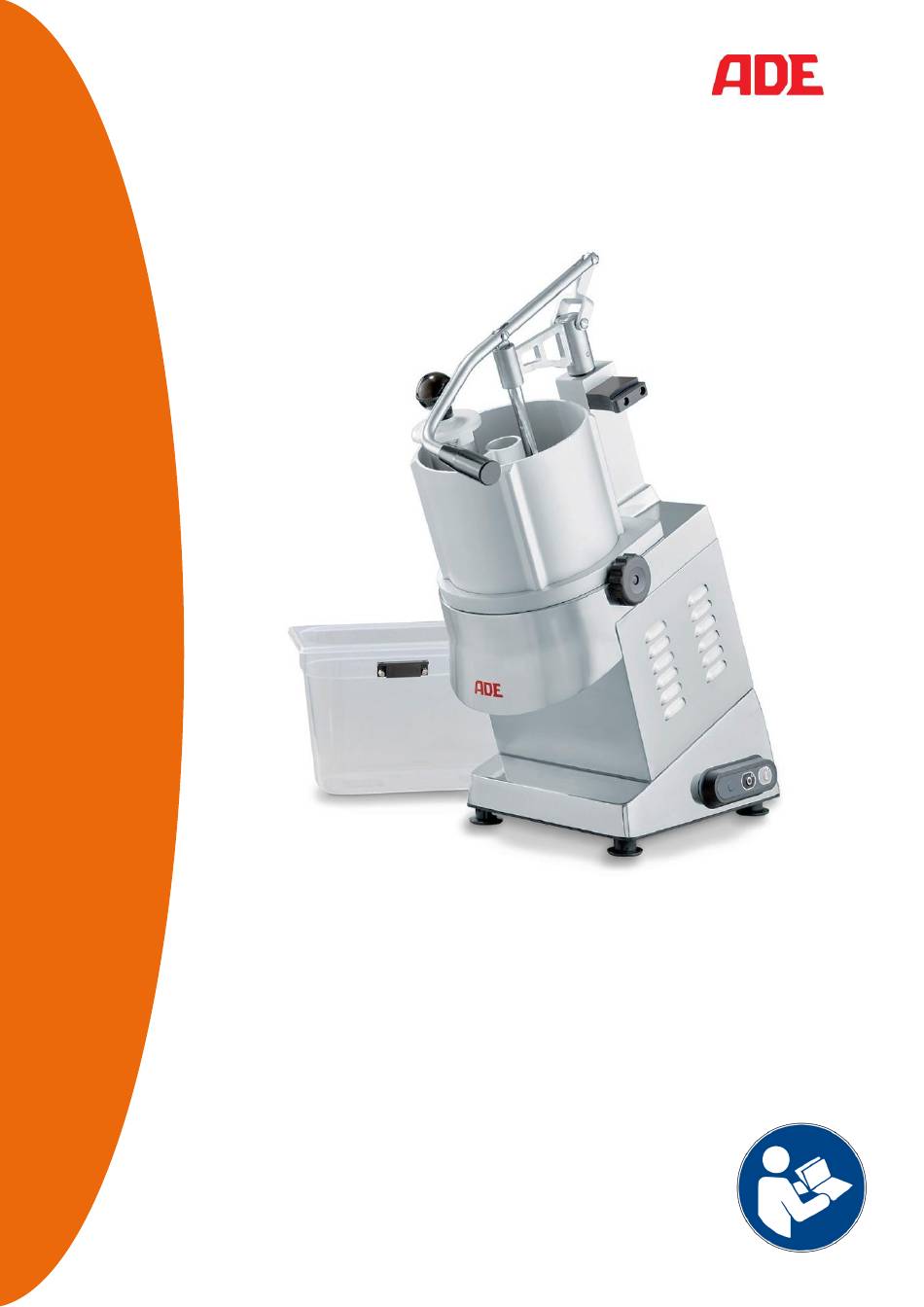

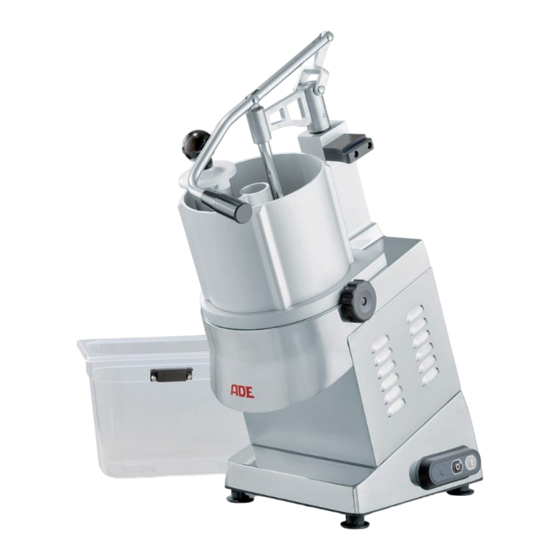

- Page 1 OPERATING INSTRUCTIONS Vegetable Cutting Machine Vitalis Pro VitalisPro-210614-Rev002-UM-en...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ........................2 SAFETY INSTRUCTIONS ..................... 2 INTENDED USE ........................3 PREPARATION BEFORE USE ..................... 4 CONNECTING THE MACHINE TO THE LOCAL POWER SUPPLY........4 PRODUCT OVERVIEW ......................5 START-UP..........................6 FITTING THE CUTTING DISKS .................... 7 FEEDING THE MACHINE AND CUTTING VEGETABLES ............ 8 CLEANING .......................... -
Page 3: Introduction
INTRODUCTION This symbol means: “Observe operating instructions.” Read these operating instructions carefully and observe the information contained therein. Keep these operating instructions handy for future reference. Before using the appliance for the first time, carefully read and understand the operating manual and strictly follow all safety instructions. -
Page 4: Intended Use
Use the appliance as it was designed to be used. Improper or unintended use of the machine may pose a risk to the health and safety of persons and result in property damage. Before attempting any cleaning or maintenance work, SWITCH THE POWER SUPPLY OFF (or unplug the appliance) and allow sufficient time for the appliance to cool down completely. -
Page 5: Preparation Before Use
PREPARATION BEFORE USE Unpacking the Product Check that all machine components in the package box are intact. If any parts are damaged or missing, contact the dealer from whom you purchased the appliance as soon as possible for further guidance. •... -
Page 6: Product Overview
Vitalis Pro Vegetable Cutting Machine – 400 V Three-phase Current The machine is equipped with a red CEE plug. Connect the machine to the local power supply and ensure the earthing is intact. Before you start using the machine, check that the disks are rotating in the correct direction. -
Page 7: Start-Up
Controls Overview All machine controls listed below are used to activate the main functions. A) “I” power on button: starts the machine. B) “O” power off button: stops the machine. Power buttons Pressing the “I” power on button puts the machine in pulse mode. The machine starts and stops automatically depending on the position of the vegetable holder. -
Page 8: Fitting The Cutting Disks
FITTING THE CUTTING DISKS General 1. Select the disk (A1-A2-A3-A5-A8-A10-A2W-A3W, S-VG, S2-S3-S4-S7-S8-S9, or F2.5x2.5- F4x4-F6x6-F8x8-F10x10). 2. Fold the cover to the side. Before installing the disk, check whether the ejection scoop is already mounted on the disk holder pin. If not, mount it. 3. -
Page 9: Feeding The Machine And Cutting Vegetables
FEEDING THE MACHINE AND CUTTING VEGETABLES A correct working posture is essential to avoid accidents when using the machine. Always keep your body perpendicular to the worktop. Position your body in a way that prevents direct contact with the running machine. 1. -
Page 10: Cleaning
7. When using a larger collecting tray, you should attach an optional ejection chute (not included) to the vegetable cutting machine. The ejection chute must be positioned under the discharge opening. To fit the ejection chute, insert the screws into the respective holes in the chute and press the chute down until it stops. -
Page 11: Storage And Transportation
The appliance must only be cleaned with food-grade cleaning products. Under no circumstances should you use corrosive or flammable cleaning products or cleaners containing harmful substances. 11 STORAGE AND TRANSPORTATION The ambient temperature during transportation and storage must be between -25 °C and +55 °C and not exceed +70 °C (provided that the exposure time does not exceed 24 hours). -
Page 12: Warranty
If this product is proven to have failed within 1 year from the date of purchase (proof of purchase is required) due to defects in material and workmanship, ADE will repair or replace this product. The warranty does not cover all moving parts, such as cables, collecting trays, pushers, disks, etc. -
Page 13: Technical Data
15 TECHNICAL DATA Model VitalisPro-230 VitalisPro-400 Power 0.51 kW 0.51 kW Power supply 230 V/50 Hz 400 V/50 Hz Machine dimensions* (W x D x H) 460 x 592 x 915 mm * with open vegetable holder Collecting tray dimensions... - Page 14 16.4 Cutting Disks AW for Wavy and Colored Cuts (suitable for beets, cucumbers, courgettes, etc.) A2W = cutting height 2 mm / 1 blade Z4582 A3W = cutting height 3 mm / 1 blade Z4583 16.5 Grating Disks S (suitable for carrots, white cabbage, celery, apples, chocolate, cheese, etc.) S2 = grating diameter 2 mm Z4561 S3 = grating diameter 3 mm...
-
Page 15: Ce Marking And Declaration Of Conformity
− RoHS Directive 2011/65/EU in their current version. This declaration becomes invalid if the machine is modified in any way that has not been approved by us. Hamburg, June 2021 ADE Germany GmbH Neuer Höltigbaum 15 22143 Hamburg Manufacturer: ADE Germany GmbH Neuer Höltigbaum 15... -
Page 16: Wiring Diagrams
18 WIRING DIAGRAMS 18.1 Vitalis Pro 230V 18.2 Vitalis Pro 400V VitalisPro-210614-Rev002-UM-en... -
Page 17: Exploded Views
19 EXPLODED VIEWS VitalisPro-210614-Rev002-UM-en... - Page 18 VitalisPro-210614-Rev002-UM-en...
-
Page 19: Spare Parts List
20 SPARE PARTS LIST DESCRIPTION ITEM NO. Collecting tray H4498-001 Ejection chute H4498-002 Ejection scoop H4498-003 Magnetic switch H4498-004 Round pusher H4496-1080 Lever pusher plate H4496-1060 Switch assembly H4498-008 Collecting tray / ejection chute magnet H4498-013 Adjustable foot H4498-011 Drive belt H4496-2260 Electric motor 400 V Electric motor 230 V... - Page 20 Distributor: VitalisPro-210614-Rev002-UM-en...
