Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Warning
This light fitting is double insulated and does
not require connection to an Earth circuit.
Please read these instructions carefully before commencing any work
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building
Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or
maintaining this fitting. Ensure other persons cannot restore the electrical
supply without your knowledge. If you are in any doubt, please consult a
qualified electrician.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of the connections.
These products should not be fitted to PIR circuits or short duration
timed switches.
This product is not suitable for dimming.
Technical data
Supply
220-240V~, 50Hz
Voltage:
Bulb
4W LED (SMD), 6500K
Lumens: 200Lm - 150Lm in EM mode
Type:
The light source of this luminaire is not replaceable; when the
light source reaches its end of life the whole luminaire shall
be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP65.
65
IP
This product is rated at IK06.
06
IK
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between fittings.
Avoid locating any cables in positions that would cause a hazard. Position cables away from areas where they may be
at risk from being cut, trapped or damaged
The mains supply cable must have a minimum cross section area of 1.0mm
This product is designed to be fitted into a suspended ceiling or wall mounted.
This product has special protection against the ingress of moisture and is IP65 rated.
Do not use Megger or similar high voltage instruments. Due to the fact this
Emergency pack contains electronic components that maybe damaged by high test
voltages, they must be disconnected from the circuit before testing.
To prevent damage to the Emergency pack, do not mix with conventional magnetic
ballasts on the same electrical circuit.
Any faulty, broken or damaged modules should be replaced immediately.
Do not mount in hazardous locations, or near gas or electric heaters; Do not let
power cords touch hot surface; Do not use this equipment for other than intended
use.
Equipment should be mounted in locations and at heights where it will not be
subjected to tampering by unauthorized personnel.
The use of accessory equipment not recommend by the manufactuer may cause an
unsafe condition.
Allow battery to charge for 24 hours before first use.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your local authority or retailer for
recycling advice.
Duration: 3 hours (180 minutes)
Maximum Operatin Humidity: 10-90%
Change over Time: Approximately 1s
Battery Specification: LiFePO4 3.2V 1500mAh
Battery Charge Time: 24 hours
Battery warranty: 5 years
Operating Temperature: 0ºC to 45ºC
.
2

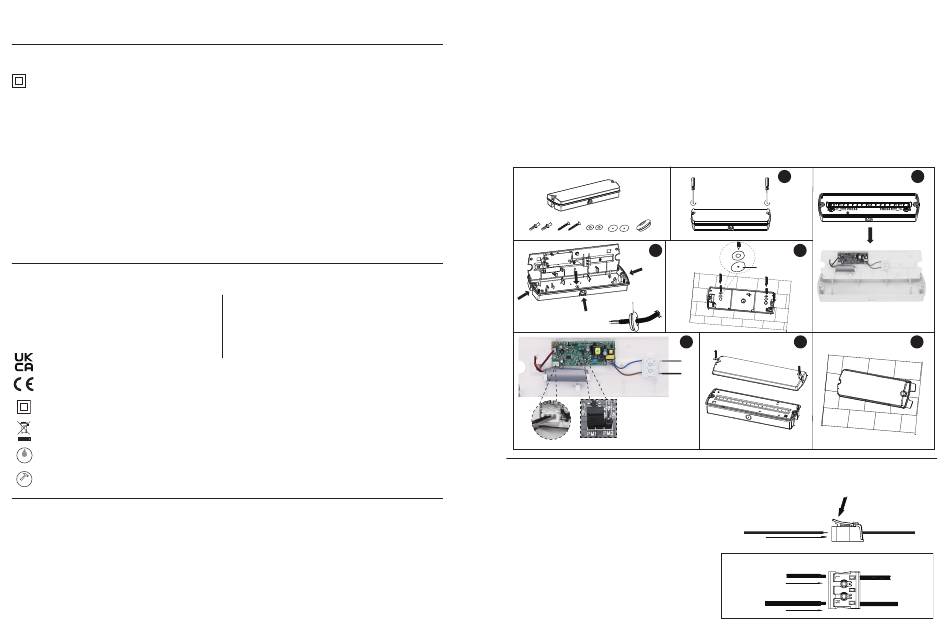

Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully note the position of each set of wires.
Note that the switch is turned off before installation.
After deciding the layout of the light fittings ensure that the cables are long enough to connect to desired positions.
• Undo two screws at the end of the product to separate the clear front cover and the rear casing. Keep screws in safe place for refitting later.
• Pushing the two quick release tabs holding the gear tray and fold up.
• Choose the cable entry holes on the rear casing and drill out the conduit knockouts accordingly.
• This unit can be mounted on the wall or ceiling. After deciding the mounted way accordingly, Using the rear casing as a template mark the position to drill out
the fixing holes. Take care to avoid damaging any concealed wiring and pipes. The correct fixings should be used, depending upon the surface to be mounted.
• Pull the cable through the cable entry hole and seal using the waterproof gland to maintain the IP rating. Fix the rear casing into the position with the plastic
anchors, screws and washers (supplied).
• Wire as detailed Wiring Diagram and plug battery pack into the circuit board.
• Re-clip the gear tray in place and re-secure the clear front cover using the screws. Ensure that the seal is correctly fitted.
• Replace fuse or circuit breaker and switch on. Your light is now ready for use.
Emergency bulkhead
Plastic anchors
Drywall screws
Washers
Washers (silicone)
Waterproof gland
3
or
or
or
Seal the cable entry hole
or
5
See wiring diagram
Maintained working mode,
"PM1" jump connected.
Non-maintained working mode,
"PM2" jump connected.
Connect the battery
Wiring
• This product is double insulated and must not be earthed. If there are any
incoming earth cables, they must be joined together and well insulated
with good quality insulation tape. This is to ensure earth continuity
throughout your property.
• Having correctly identified the wiring from your existing light fitting, connect
to the quick fit connection block in the following way.
Check that...
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
1
4
For maintain the IP rating
6
PUSH DOWN
LIGHT FITTING
SUPPLY
INSERT CABLE
SUPPLY
LIGHT FITTING
PERMANENT LIVE
BROWN(L)
NEUTRAL
BLUE(N)
2
7
