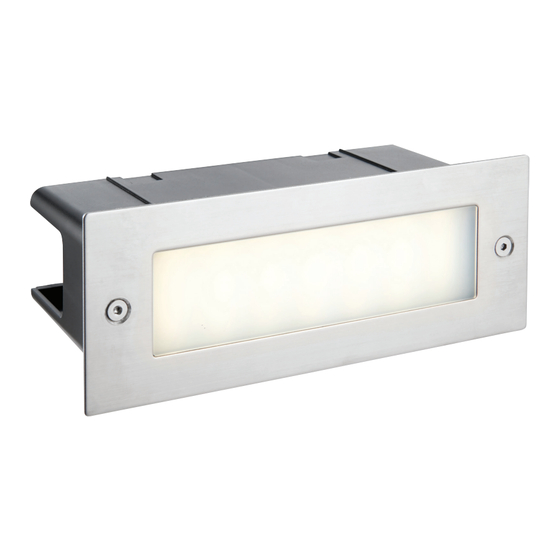

Saxby Lighting Seina 78637 Instruction Manual

Wiring

Having correctly identified the wiring from your existing light fitting, connect to the approved IP67 (or higher rated) terminal
block in the following way (recommended terminal block Ref. 90131/90132)
SUPPLY
NEUTRAL
SWITCHED LIVE

Technical data

Supply
220-240 V~, 50 Hz
Voltage:
Bulb
78637 / 78638--3.5W LED module (SMD), 4000K
Type:
78639 / 78640--3.5W LED module (SMD), 4000K
99563-----------3.5W LED module (SMD), Blue
78641-----------3.5W LED module (SMD), 3000K
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire shall be replaced.
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP

Care and Safety

We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
The LED's are protected by a plastic lens. The lens part must be replaced immediately should
it become cracked or damaged. This fitting must not be used without the plastic lens in place.
Replace Cracked Shade
V4 12/10/2021
UK Manufacturer: BH17 7BY
EU Manufacturer: 1 Gnarrenburg, 27442
LIGHT FITTING
Check that...
BLUE (N)
You have correctly identified the wires.
The connections are tight.
BROWN (L)
No loose strands have been left out of the
connection block.
Instruction manual
Seina
78637, 78638, 78639, 78640, 78641, 99563
78637
78639
99563
www.saxbylighting.com
78638
78640
78641
