Wiring
Having correctly identified the wiring from your existing
light fitting, pull the wire through the hole and connect
to the connection block inside the LED driver in the
following way:
This unit is double insulated and must not be earthed. If
Check that...
•
You have correctly identified the wires.
•
The connections are tight.
Care and Safety
• We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage
the finish.
• For your safety, always switch off the supply before cleaning.
WWW.saxbylighting.com
there are any incoming earth cables, they must be joined
together and well insulated with good quality insulation
tape. This is to ensure earth continuity throughout your
property.
• No loose strands have been left out of the connection
block.
Iss1 29/10/2018
Saxby lighting. BH23 3PE
Instruction leaflet

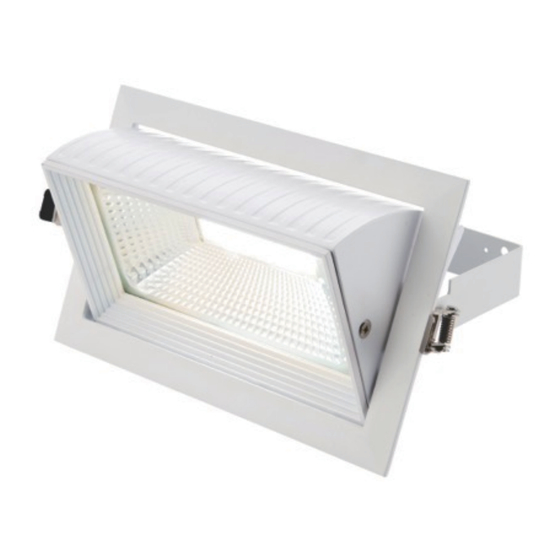

Scoop Rectangular
Recessed
78542
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Saxby Lighting Scoop Rectangular Recessed
Summary of Contents for Saxby Lighting Scoop Rectangular Recessed
- Page 1 • We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish. • For your safety, always switch off the supply before cleaning. Iss1 29/10/2018 WWW.saxbylighting.com Saxby lighting. BH23 3PE...
- Page 2 Installation Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Please retain these instructions for future reference. Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully note the position of each set of wires.
