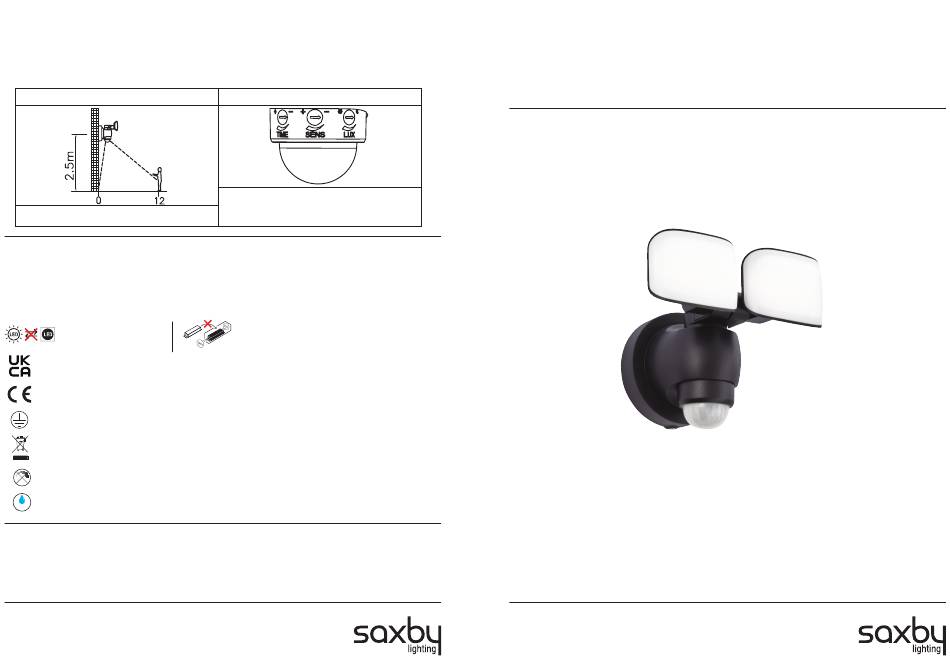

PIR Adjustment
• The unit must be installed in a vertical position, and fitted between 1.8m and 2.5m above the ground.
• The PIR sensor can be adjusted, allowing the detection distance to be altered to suit the location. The detection angle is set
at 180 degrees. The duration that the lamp stays on can be altered from 10±5 seconds to 4±1 minutes. The detection
distance "SENS" can be adjusted up to 12m. Use a small screwdriver to adjust the 'TIME' and 'SENS' screws. When adjusting
the sensitivity (detection distance) in daylight it will be necessary to cover the sensor to simulate night time.
Adjustable up to 12 metres
Detection range can be adjusted by turning 'SENS' screw
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
2 x 10W LED (SMD), CCT 3000/4000/6000K This product contains a light source of energy efficiency class E.
Type:
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
For further information, please visit https://www.lighting-info.co.uk/75272
V2 27/11/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Base of product
Duration the bulb stays on is adjustable by turning 'TIME'
screw The sensor trigger point is adjustable by turning
the 'LUX' screw.
Non-replaceable control gear
Instruction manual

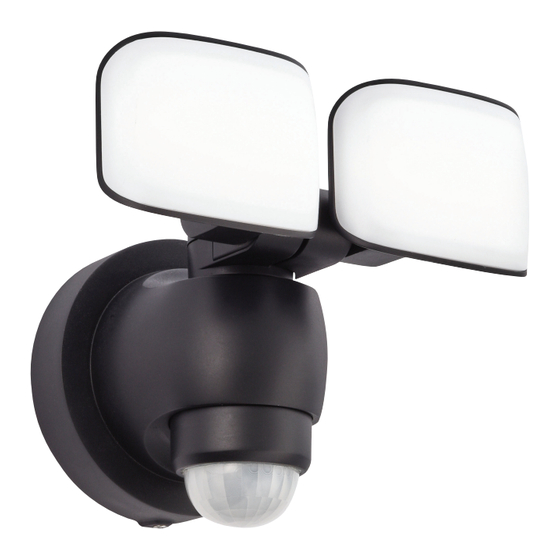

Sentinel CCT Twin PIR Wall
75272
