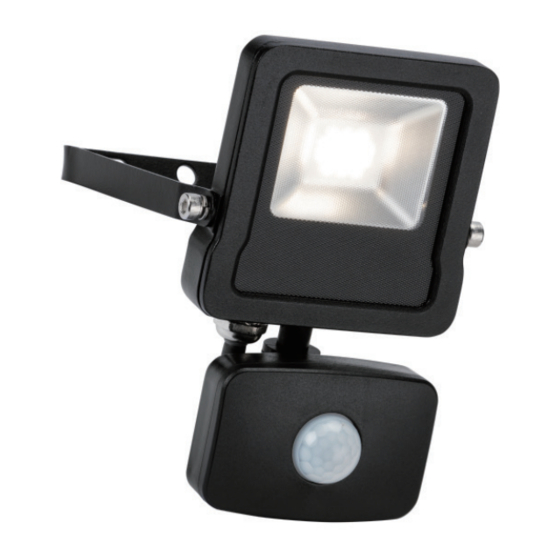

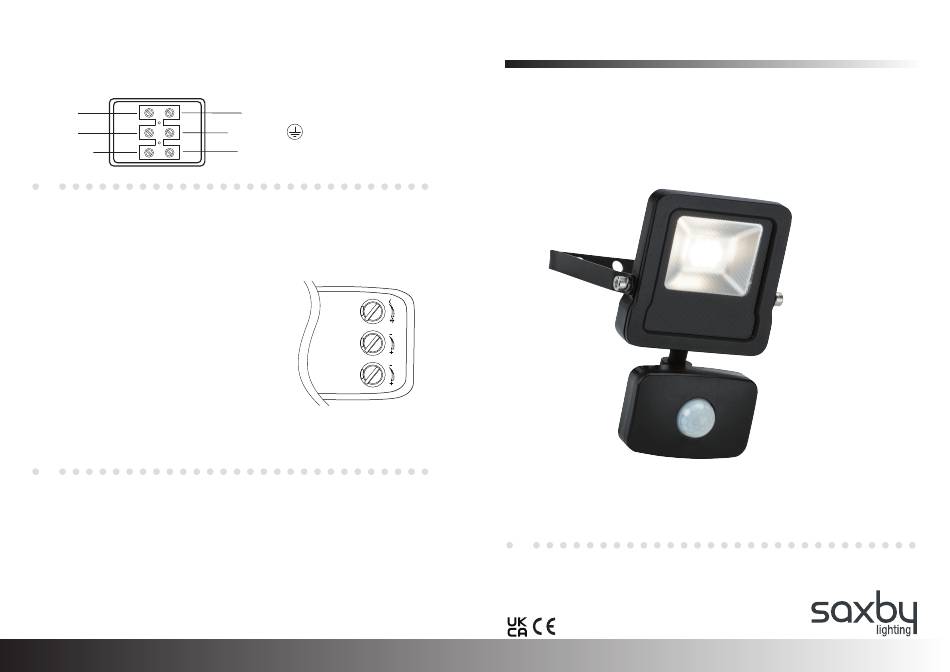

Saxby Lighting Surge PIR Instruction Leaflet

Wiring
Terminal block not included. Installation may require advice from a qualified person. Connect to an approved
outdoor rated terminal block, observing the wiring diagram here:
SUPPLY
NEUTRAL
EARTH
SWITCHED LIVE

PIR Adjustment

Please read in full before test and keep for future reference take care not to over rotate the dials. They do not rotate through
360º for testing in daylight.
Infrared induction mode:
Infrared sensors into infrared sensing mode after first power on,
LUX gear can adjust the open ambient light of load sensors, when the knob
indicator rotation in sun position, the load will open during the day, When
rotation in moon position, the load only open at night.
TIME gear adjust the delay time of sensor work time, when the knob indicator
rotation in "+"position, the most delay time is 8min±2min, when rotation
in "-"position, the shortest delay time is 10sec±5sec.
SENS gear adjust the induction distance of sensor, when the knob
indicator rotation in "+"position, the distance is farthest, when rotation
in "-"position, the distance is shortest.
Manual override mode:
In sensor mode, turn off the power, then turn on within 2-3 seconds, switch to override
mode and the light will stay lit. Turn off the light more than 10 seconds, the light will go
to sensor mode when it is turned on again.

Care and Safety

We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
UK Manufacturer: BH17 7BY
EU Manufacturer: 1 Gnarrenburg, 27442
www.saxbylighting.com
Check that...
LIGHT FITTING
•
BLUE (N) You have correctly
identified the wires.
GREEN/YELLOW
• The connections are tight.
•
No loose strands have
BROWN(L)
been left out of the terminals.
LUX
TIME
SENS
V3 06/08/2021
Saxby Lighting
Instruction leaflet
Surge PIR
78963, 78965, 78967, 78969
