VEVOR NT-1247 Quick Start Manual

Technical Support and E-Warranty Certificate www.vevor.com/support

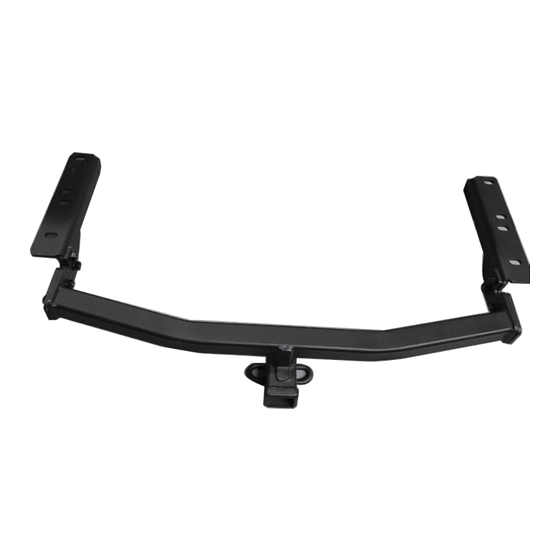

TRAILER HITCH
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
IMPORTANT SAFEGUARDS
Read and understand this entire manual before operating and
servicing this product. Failure to follow these warnings and
instructions can cause death, personal injury or damage to valuable
property.
Base safety rules
1. Please tighten the installation; damage or danger can be done to loosen
it. The warranty does not cover this damage.
2. Adhere to all Department of Transportation (D.O.T.) requirements when
using this product.
3. Use common sense when working. Stay alert and concentrate when
setting up and using this product. Never operate while under the influence
of alcohol, drugs or medications.
4. This product is not a toy. Keep it out of reach of children. While using this
product, keep the work area clean and well lighted. Keep children out of
the work area.
5. Dress appropriately. Never wear loose fitting clothing or jewelry when
using. Contain long hair, and keep hair, clothing and gloves away from
moving parts.
SAVE THESE INSTRUCTIONS
- 2 -
MODEL:NT-1247
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
ITE PART
QTY
M NUMBER
1 1
2 2
3 1 M12*20
4 2 M10
5 4 D10
6 4 Φ10
7 4 M10
8 8 M12*35
9 8 D12
10 6 M12
11 8 Φ12
SPECIFICATIONS
MODEL
Weight Carrying Capacity
Applications 2020-Current
TRAILER HITCH
- 1 -
Parts List
designation Notes
Drag bar body
Trestle
Threaded hole
Hexagon bolt with
installed in square
flange
mouth
U Bolt
Spring washer
Used to install the tow
Flat gasket
bar on the vehicle
Nut
Hexagon bolt
Spring washer
Used to connect the
Hexagon nut with
bar body and bracket
flange
Flat gasket
NT-1247 Class 3 Hitch
6000lbs
Years Make Models
Toyota HIGHLANDER
