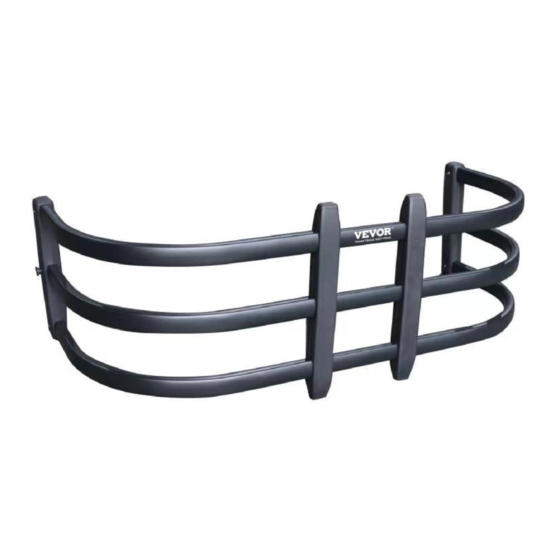

TRUCK BED EXTENDER
MODEL:TZJ-01-01/TZJ-01-02
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR TZJ-01-01
Summary of Contents for VEVOR TZJ-01-01
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support TRUCK BED EXTENDER MODEL:TZJ-01-01/TZJ-01-02 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 3 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 4 SAVE THIS MANUAL Model TZJ-01-01/TZJ-01-02 Range 51.6~64 in（TZJ-01-01）/55.5~68in（TZJ-01-02） Net weight 6kg(TZJ-01-01) / 6.2kg(TZJ-01-02) Material Aluminum,Plastic Color Black Fitment Ridgeline,Tacoma,Gladiator,Colorado/Canyon,Frontier,ranger (TZJ-01-01) Ford SuperDuty,F150,Dodge Ram 1500/2500/3500,Toyota Fitment (TZJ-01-02) Tundra,Nissan Titan,Chevrolet Silverado,GMC Sierra...
-
Page 5: Assembly Preparation
ASSEMBLY PREPARATION When unpacking this product, check to make sure parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing and damaged, do not attempt to assemble or use the product. PARTS LIST PICTURE PART NUMBER... -
Page 6: Assembly Procedures
PRODUCT ASSEMBLY EXPLODED TOOLS REQUIRED Phillips screw driver Torx T-25 driver Power drill 9/64” drill bit Center punch 1. Assembly Procedures Disassemble Part②with supplied Hex Key” ” Assemble Part ③and ⑥with supplied Hex Key ” ” tighten all screws. Make sure pivot at outside after assembly as NOTE: picture shown. -
Page 7: Installation Procedures
Put on Part 2Strap Buckle Assembly on the middle tube. Make sure the Strap Latch Insert towards inside NOTE: after assembly as picture shown. Apply Part ⑤ straight tubes to 2 of the assembly from Procedure-3. 2. Installation Procedures Adjust and place drilling template at tailgate D-pillar and mark the 3 screw holes with marker on both sides... - Page 8 Use center punch to mark screw holes for preparation of drilling. Use a power drill and 9/64" drill bit, drill through the sheet metal. If equipped a bed liner, drill through bed liner as well. Fasten Bracket ⑧ with Screw ④...
- Page 9 Tips:The black U-shaped frame is an optional accessory. If the width of the carriage is not on the same horizontal line as the tailgate, it needs to be installed (as shown in the figure). If the width of the carriage is on the same horizontal line as the tailgate, it does not need to be installed.
- Page 10 Insert “ ”into Quick Mount Bracket, and put” ”back on brackets Adjust Strap Buckles to lock into the tailgate when Bed Extender is deployed. Your assembly is now complete. Strap Latch Insert supplied in 3 diameter sizes, you can choose to properly fit your tailgate latch.
-
Page 11: Operation
When the Bed Extender is at the furthest rear position. Push down on the buckle to insert into tailgate latch.Tighten straps.To release, pull tailgate handle. NOTE: Ensure that buckles are properly inserted into latches by puling on the straps after bothe buckles have been inserted. EXTENDER OPERATION With the tailgate open, place Bed Extender pivot pins into the left and right... - Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
