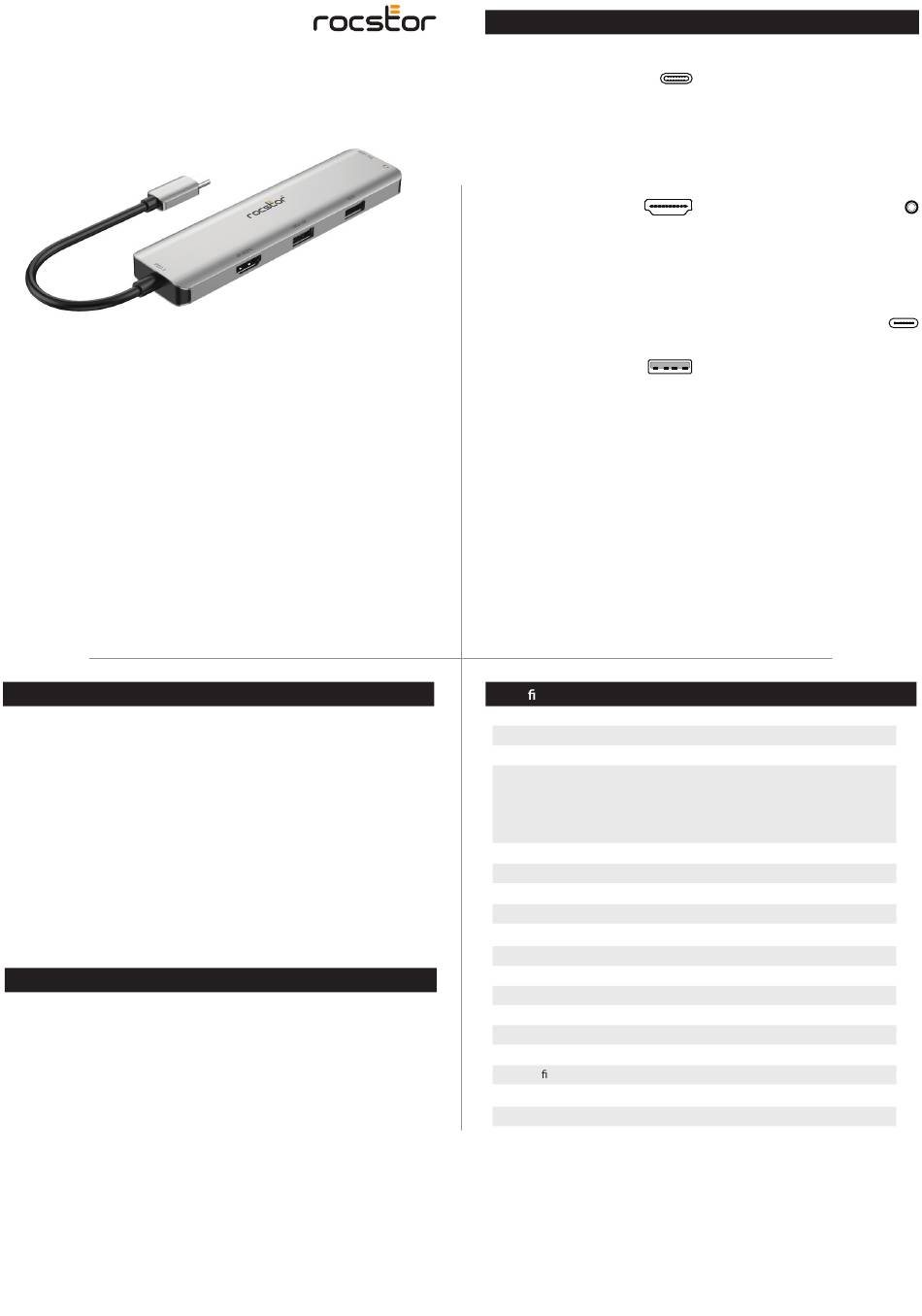

Rocstor Y10A338-S1 User Manual

User Manual
USB-C 5-in-1 Multiport Adapter with PD 3.1 Charging &
DP 1.4 Alt Mode, HDMI 4K@60Hz, USB-C 140W PD,
USB Type A 3.2 10Gbps, 3.5mm Audio
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Keep this manual for future reference.
Introduction
Rocstor introduces the Type-C 5-in-1 Multiple Port Adapter, featuring cutting-edge
PD3.1 Charging technology. This sleek solution seamlessly integrates video and data
transmission into one device. Experience crystal-clear video with the HDMI port while
enjoying lightning-fast data transfer via the dual USB-A 10G ports. Additionally,
indulge in your favorite tunes with the dedicated audio jack. Not stopping there, our
adapter includes a Type-C port boasting PD3.1 with an impressive max 140W PD
charging capability. Compatible with all DP Alt mode supported Type-C hosts, this
adapter is the epitome of versatility and performance.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the packaging:
• Main Unit x1
• User Manual
Y10A338-S1
®
Features
Upstream:
Type-C Male X1 Host Computer
• Supports DP1.4 Alt mode
• Supports reversible connection
• Supports max 10Gbps data transmission
and max 4K/60Hz video transmission
simultaneously
Downstream:
HDMI X1
• Supports max 4K/60Hz video output
• Supports High Dynamic Range(HDR)
• Supports multiple color formats: RGB;
YCbCr4:4:4; YCbCr4:2:2;YCbCr4:2:0 ；
• Supports 8/10/12 bit Color depth
• Supports HDCP2.3, HDCP2.2 and HDCP1.4
Note: The actual resolution supported is
determined by the host and the Display.
USB-A 10G X2
• Compliant USB3.2 Gen2 with max
10Gbps data transmission
• The total output of the 2 USB-A is
10W (5V@2A), one port (close to HDMI)
supports 1.5A downstream charging
another one supports max 900mA
downstream charging
• Supports short-circuit, over-current
protection
Speci cation
Input/Output Connector
Upstream
Downstream
Warranty
Limited Warranty
Mechanical
Weight
Size
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Regulatory Approvals
Certi cations
Power Supply
Accessory
User Manual
3.5mm Audio Jack X1
• DAC supports 44.1/48/96KHz Sample
Rate, 16/24-bit ；
• ADC input supports 44.1/48KHz Sample
Rate, 16bit
• Support CTIA&OMTP auto detection
Type-C PD Charging X1
• Supports PD3.1 with max 140W
PD Charging
• 12W is dedicated to the functioning of
this product, the rest power (max 128W)
will be passed to charge for the host
USB-C Male x1
HDMI (Max 4K/60Hz） x1
USB-A 10G (USB3.2 Gen2) x2
3.5mm Audio Jack (96KHz) x1
Type-C PD Charging (PD3.1 140W) x1
3 Years
2.8lbs (82g)
5.2x1.3x0.4in (133x34x11.5mm)
0°C to 45°C (32°F to 104°F)
10% to 85% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
5% to 90 % RH (no condensation)
FCC, CE
External PD Power/Bus Power
English Version
