Rocstor Y10A315-S1 User Manual

DisplayPort1.4 to HDMI (8K/60Hz) Adapter
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction

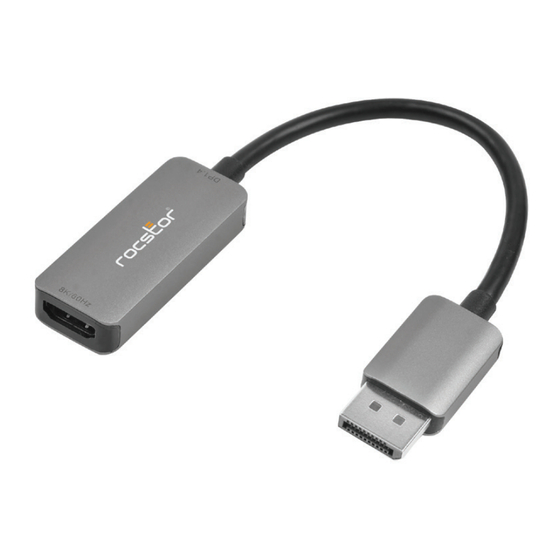

Rocstor introduces DisplayPort1.4 to HDMI adapter facilitates signal transmission from
your host PC to an HDMI monitor. Capable of outputting HDMI video at a maximum
resolution of 8k/60Hz, this adapter ensures high-quality display performance.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in it:
• Main Unit x1
• User Manual
User Manual
Y10A315-S1
®
Features
Upstream:
DisplayPort Male (Connect to a host computer)
• Supports DP1.4
• Supports DSC1.1/1.2a or uncompressed video
• Supports DSC 1.1/1.2a decoder
• Supports 8/10/12 bit color depth
• Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0t
Downstream:
HDMI X1
• Supports HDMI max 8K/60Hz
• Supports Dynamic HDR10+
• Supports HDCP1.4&HDCP2.3 speci cation
• Supports HPD
• Supports DSC 1.1/1.2a decoder
• Supports 8/10/12 bit color depth output
• Supports pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Supports 1 to 32 channels LPCM 192kHz
audio output
• Supports HBR audio up to 1536kHz
Note: The output resolution, refresh rate,
video pixel format depends on the
performance of the computer and the
monitor
Speci cation
Input / Output Connector
Input
Output
Physical
Weight Operating Temperature
Size
Warranty
Limited Warranty
Environmental
Operating Temperature Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Electronic Parameter
Working Voltage
Working Current
Standby Power Consumption
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
DisplayPort x1
HDMI x1
0°C to 45°C (32°F to 113°F)
2.1x0.8x0.4in - (53.5x22x11mm)
2 Years
0°C to 45°C (32°F to 113°F)
10% to 90% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 90 % RH (no condensation)
3.3-3.6V
150mA-300mA
≤1W
FCC, CE
