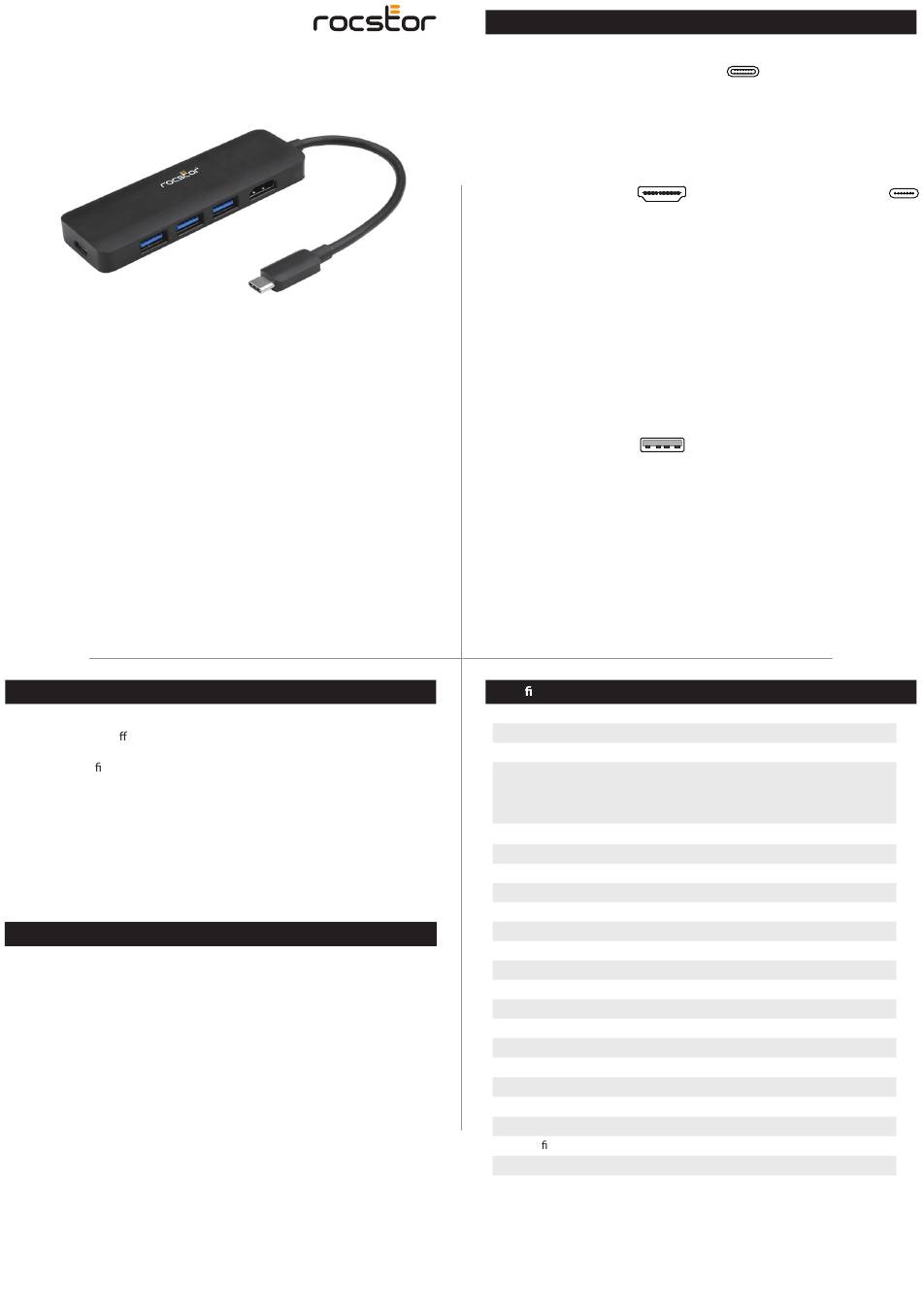

Rocstor Y10A308-B1 User Manual

Type-C to HDMI/USB-Ax3/Type-C
PD Charging with DP1.4 Alt mode
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
Rocstor presents a Type-C 5-in-1 hub featuring HDMI, 3 USB-A ports, and a
Type-C female port, o ering an optimal solution for expanding the port options
of Type-C/Thunderbolt 3 hosts such as PCs, laptops, and mobile phones,
particularly bene cial for devices with only one Type-C port. Equipped with the
latest DP1.4 Alt mode supported IC, this hub enables HDMI video output at a
maximum resolution of 4k/60Hz while concurrently transferring USB 3.1 data at
up to 5Gbps. The 3 USB-A ports facilitate simultaneous connection of 3 USB
devices. Furthermore, the Type-C female port supports PD 3.0 with a maximum
power delivery of 100W for PD Charging. Compatible with all DP Alt mode
supported Type-C hosts, this hub ensures versatile compatibility and
functionality.
Package Contents
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the shipping carton:
• Main Unit x1
• User Manual
User Manual
Y10A308-B1
®
Features
Upstream:
USB Type-C Male (Connect to host computer)
• Supports DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane),
downward compatible with DP1.2 Alt mode
Note: To get max bandwidth, the host should support standard DP1.4 Alt mode
with DSC3:1 and HBR3
Downstream:
HDMI
• Supports HDMI max 4K/60Hz， 4 ： 4 ： 4，
8bit with 18Gbps Bandwidth
• Supports 6/8/10/12 bit color depth
output
• Supports output pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2
• Supports HDCP 2.2&HDCP1.4
• Supports HDR
Note: When connecting a DP1.4 Alt
mode supported host, the max
resolution of HDMI is 4k/60Hz; When
connecting a DP1.2 Alt mode supported
host, the max resolution of HDMI is
4k/30Hz due to bandwidth limitation
USB-A 3.0 X3
• 1 USB-A port （next to HDMI port)
supports max downstream charging, 3
USB-A share max 8W (5V/1.6A)
downstream charging.
• Max 5Gbps bandwidth
Speci cation
Input / Output Connector
Input
Output
Physical
Weight
Size
Warranty
Limited Warranty
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Electronic Parameter
Input Voltage
Power Consumption
Power Supply
USB-C PD Charging Port
Regulatory Approvals
Certi cations
Accessories Adapter
User Manual
Type-C Female (for PD Charging)
• Supports PD Charging 100W (20V/5A)
• Supports Fast Role Swap of PD 3.0, the
connected device will not get
disconnected while plugging in and
out PD Adapter
• 8W is dedicated to the functioning of
this product, the rest power (max 92W)
will be passed to charge for the host
Type-C Male x1
HDMI Female x1
USB-A Female x3
Type-C Female x1 （ PD Charging)
0.11lbs (53.3g)
4.5x1.3x0.37in (105.7x34x9.46mm)
2 Years
0°C to + 45°C
10% to 90 % RH (no condensation)
-10°C to + 70°C
10% to 90 % RH (no condensation)
5V
Max 2W
100W(20V/5A)
FCC, CE
English Version
