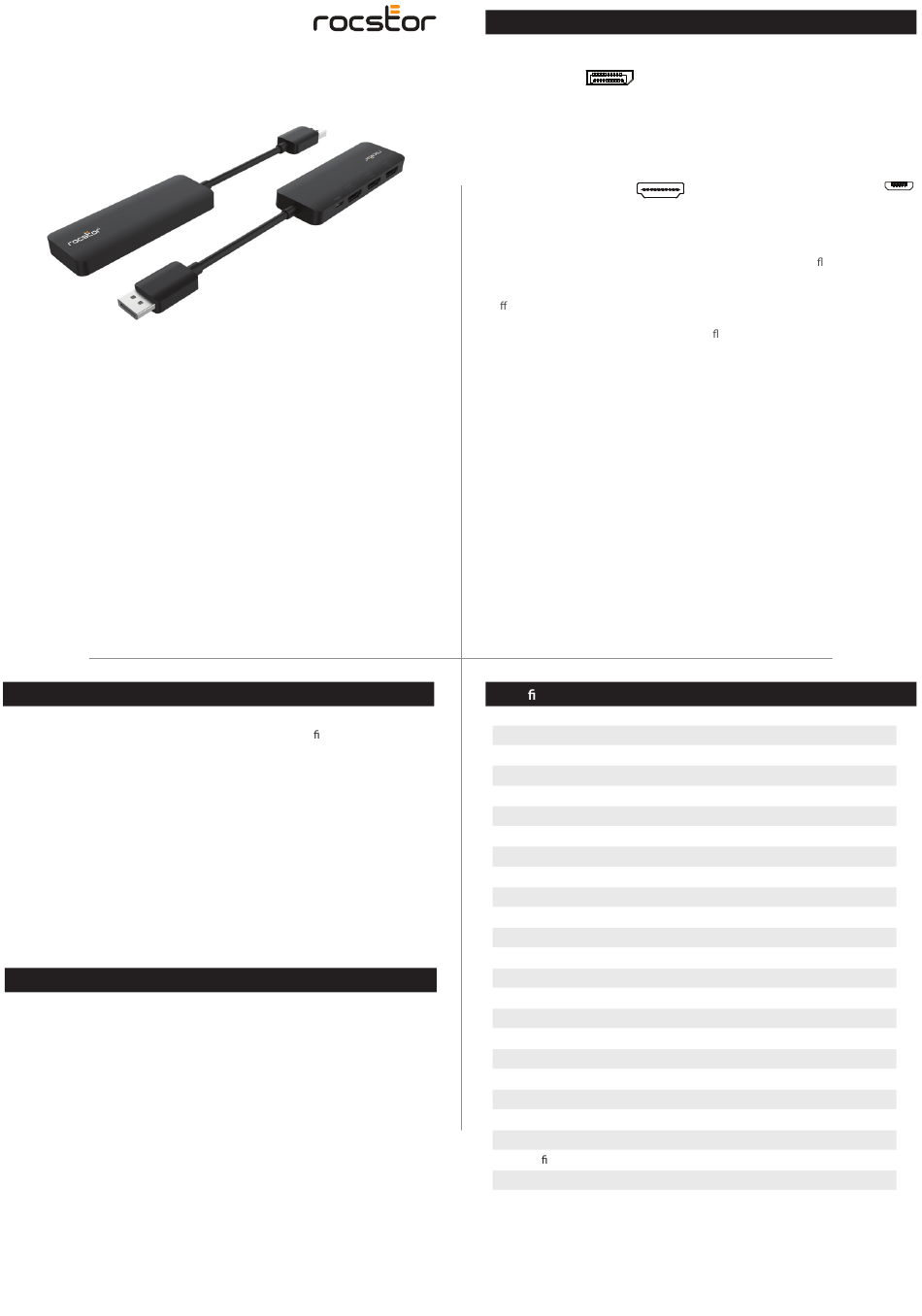

Rocstor Y10A314-B1 User Manual

User Manual
DisplayPort 1.4 to Triple HDMI
Adapter with MST
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Introduction
Rocstor introduces the DisplayPort1.4 to Triple HDMI Adapter, designed to expand a
DisplayPort-based host to three HDMI ports with ultra-high de nition capability.
Supporting DP1.4 alt mode, this product enables the output of dual maximum
4K/60Hz videos or triple videos (maximum 4K/60Hz + 2x4K/30Hz) simultaneously
under MST mode.
Package Contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in it:
• Main Unit x1
• Micro USB to USB-A Cable x1
• User Manual
Y10A314-B1
®
Features
Upstream:
DisplayPort Male
• Supports DP1.4 Alt mode
Downstream:
HDMI Female X3
• Compliant with DP1.4 alt mode up to
8.1Gbps (HBR3), downward compatible
with 5.4 Gbps (HBR2), 2.7 Gbps (HBR)
and 1.62 Gbps (RBR)
• Supports HDMI max 4K/60Hz per port,
dual max 4K/60Hz under MST (output
di erent pictures simultaneously) or
output triple displays (max
4K/60Hz+2x4K/30Hz) under MST
• Supports 8/10/12 bit color depth output
• Supports output pixel format
RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
• Supports HDCP2.2&1.4
• Supports HDR which ensures every
moment of a video is displayed at its
ideal values for depth, detail, brightness,
contrast and wider color gamuts on a
scene by scene or even a frame by frame basis
Note: To achieve the above resolution, the
host should support DP1.4, when
working on DP1.2 host, the correspond-
ing resolution will be decreased due to
bandwidth limitation. The above
resolution combination is for theoretical
reference, the actual output resolution
depends on the connected host and
displays
Speci cation
Input / Output Connector
Input
Output
HDMI
Resolution
HDR
HDCP Version
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Power Requirement
Power Source
Standby Power Consumption
Mechanical
Weight (Net)
Size (L-W-H)
Warranty
Limited Warranty
Regulatory Approvals
Certi cations
Accessory Adapter
User Manual
Micro USB X1 (For Power)
• Supports Gigabit
Ethernet,10M/100M/1000M
• Supports Wake-On-LAN
• Supports full duplex ow control
• Light indicates the state, no
light when no Internet connected,
orange light turns on when network
connection is established, yellow light
ashes when transmitting data
DisplayPort Male x1
HDMI Female x3
Max dual 4K/60Hz
Support
HDCP2.2&1.4
0°C to 45°C (32°F to 113°F)
10% to 85% RH (no condensation)
-10°C to 70°C (14°F to 158°F)
5% to 90 % RH (no condensation)
Micro USB
≤0.3W
1.98lbs (56.2g)
3.9x1.4x0.45in (100.82x36x11.5mm)
3 Years
FCC, CE
English Version
