Teradek User Manual
Prism Mobile 5G/Mk II Quick Start Guide (2024)

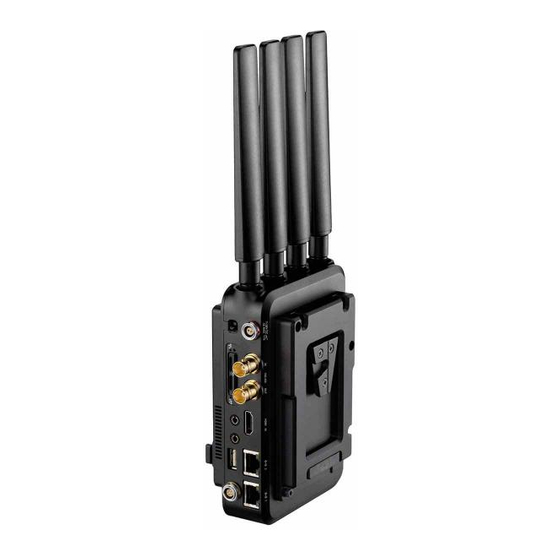

Prism Mobile is the lightest LTE-enabled camera-back video encoder on the market. With a flexible
I/O and a compact, low-SWaP design, Prism Mobile easily fits into any workflow. Prism Mobile gives
you 4K 10-bit HDR video transmission with integrated LTE network bonding for live coverage from
any location. Prism Mobile is designed to seamlessly fit onto the back of your ENG or professional
camera or placed directly on a table top. Prism Mobile can encode up to 4Kp60 video with stunning
10-bit 4:2:2 image fidelity paired with Stereo or 5.1 surround sound. The Prism platform supports
many common streaming protocols such as MPEG-TS, RTSP/RTP, RTMPS, and SRT, and can be
connected to Teradek's Core Cloud Platform for even more flexibility.
Prism Mobile 5G/Mk II Quick Start Guide (2024)
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teradek Prism Mobile 5G/Mk II
Summary of Contents for Teradek Prism Mobile 5G/Mk II
- Page 1 10-bit 4:2:2 image fidelity paired with Stereo or 5.1 surround sound. The Prism platform supports many common streaming protocols such as MPEG-TS, RTSP/RTP, RTMPS, and SRT, and can be connected to Teradek’s Core Cloud Platform for even more flexibility. Prism Mobile 5G/Mk II Quick Start Guide (2024)
- Page 2 Teradek User Manual TABLE OF CONTENTS...
-
Page 3: Physical Properties
1. Attach four antennas to the SMA connectors (C). NOTE: Prism Mobile only uses SMA antennas. Standard Wi-Fi (RP-SMA) antennas are not compatible and will not work with Prism Mobile. Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 3... -
Page 4: Menu Button Operation
Mobile is equipped with two internal modems (A and B). Each modem supports two internal Teradek Data eSIMs (A1/B1) and two plastic sims (A2/B2). To use both modems together, insert a SIM card into one of each modems' SIM slots. (A1 + B1) 5. -
Page 5: Initial Configuration
Web UI The Prism WebUI allows direct control of all of Prism Mobile’s video configuration, network settings, firmware, licenses, and recordings. Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 5... - Page 6 Teradek User Manual Prism App The Prism App allows you to configure all of Prism Mobile’s settings, monitor your video, and contribute your phone's cellular internet connection to a Teradek Cloud Stream. The Prism App is available for Android devices and must be used with the Prism on an accessible network.
- Page 7 • Web UI: Enter the IP address in your web browser’s navigation bar to access the web UI • Prism App: The Prism will show up in the menu and can be selected for configuration Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 7...
- Page 8 1. Navigate to the Network menu and select the corresponding internal Node modem. 2. If using Teradek Standard Data on the eSIM, provide the ICCID to live@teradek.com for activation. If you are using a 3rd party SIM or any other...
- Page 9 Teradek User Manual 5. Click Save when you're done. CONNECTING TO CORE Core allows Prism Mobile to be remotely controlled, utilize bonding protocols (Teradek Bonding Protocol and TRT) across multiple internet connections, and split the stream across multiple destinations. Visit https://corecloud.tv...
- Page 10 In Core, under Sources select "Add Encoder", and and then select "Add a device using code" Settings Management in Core Once a connection is established, under Sources select the encoder and then press settings at the top right Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 10...
- Page 11 Once a connection is established, under Sources select the encoder and then press the Blue "Regular Server" button Select a pre-provisioned video server. If the server is not online, the Prism will attempt to start it. Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 11...
- Page 12 4. Configure the Recording Settings to match your Camera and turn on Multi-Interface Recording Uploads if your service supports Bonded file upload 5. If necessary, scroll down and turn on CAMERA TO CLOUD CONSIDERATIONS Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 12...
-
Page 13: Other Resources
4. If manually controlled, press Start Recording at the top of the WebUI or the bottom of Prism App under Link iOS Device OTHER RESOURCES • USER GUIDE ARTICLES: https://guide.teradek.com/m/109577 • PRISM MOBILE FIRMWARE AND GUIDE PDFs: https://teradek.com/pages/downloads#prism- mobile • PRISM REFERENCE GUIDE PDF: https://teradek.com/pages/downloads#prism Prism Mobile 5G/Mk II Quick Start Guide (2024) Page 13...
