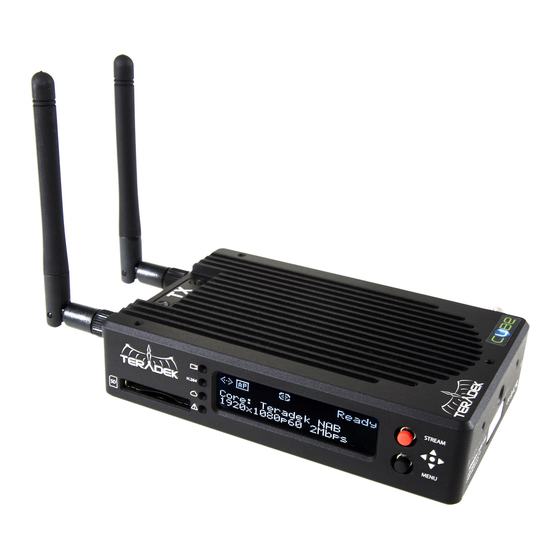

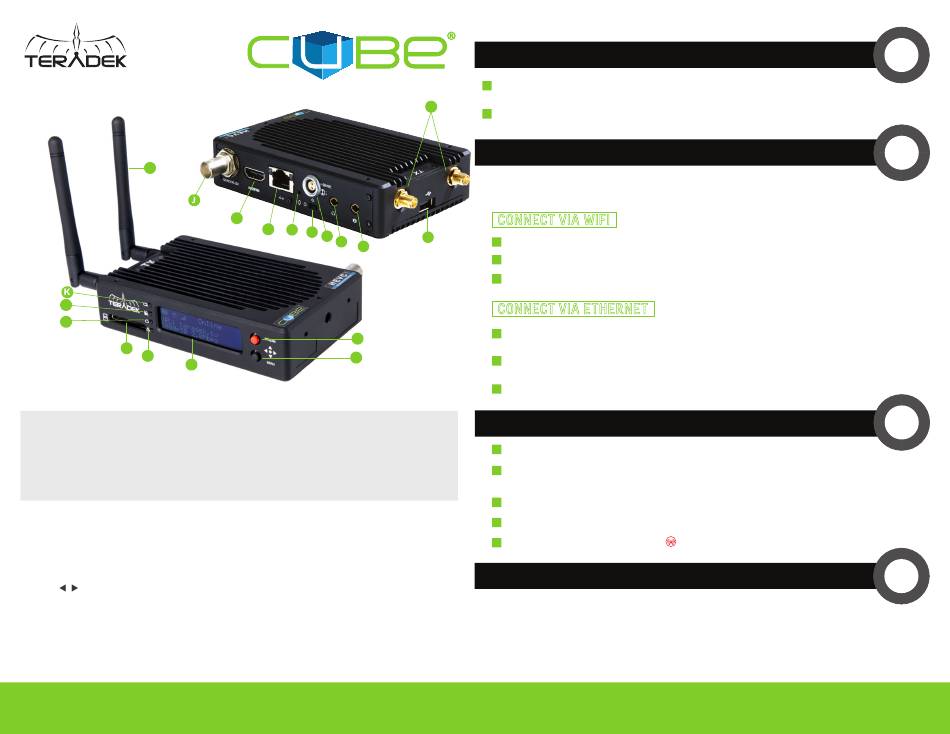

A
L
M
N
O
P
A:
Wi−Fi antennas
G:
Reset button
B:
USB port
H:
10/100/1000 Ethernet
C:
Mic/Line stereo input/output
I:
HDMI input/output
D:
Headphone/IFB input/output
J:
SD/HD/3G−SDI input/output
E:
Power input
K:
Video input status
F:
Power switch
L:
Codec status
Stream Joystick:
(button press): Access quick menu actions, exit menu screens
Menu Joystick:
▲,▼, , : Select menu items, change status screen on main display, select characters
● (button press): Confirm selection, open selected menu
Reset Button:
Hold for 3−6 seconds: Reset all network settings
Hold for 10+ seconds: Perform complete factory reset
Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities.
Visit https://www.teradek.com to update your device with the latest firmware.
I
H
G
F
E
D
C
Q
R
M:
Broadcast status
N:
SD/MMC card slot
O:
Fault/Error
P:
OLED display
Q:
Stream joystick
R:
Menu joystick

PHYSICAL CONNECTIONS

Connect power to Cube using the included A/C adapter or one of the available accessory
1
power cables
(see
Teradek.com).
A
Connect the SDI or HDMI output from your video source to one of Cube's video input connectors
2

CONNECT TO CUBE

Cube has a built in web interface for configuring stream destinations, encoder parameters,
and other settings. The interface can be accessed by connecting via Wi−Fi or wired Ethernet.

CONNECT VIA WIFI

B
Connect to Cube's Wi−Fi network: Teranet−XXXXX (serial number of the device).
1
Open a web browser and navigate to http://172.16.1.1..
2
Cube's Wi−Fi can be configured to join your network via the web UI or front panel.
3

CONNECT VIA ETHERNET

Plug an Ethernet cable into Cube's 10/100/1000 Ethernet port and connect it to an Ethernet switch
1
or router.
Connect your computer to the same network. Cube's IP address is displayed on the front panel's Ethernet
2
Status menu. Access it by pressing down on the Menu joystick to cycle through status screens.
Open a web browser and navigate to Cube's IP address.
3

STREAM TO THE INTERNET

1
Open Cube's web UI, then select the Video Stream Output menu if it is not already displayed.
2
Select Internet Streaming as the Stream Mode and choose a platform − Facebook, Ustream, Livestream,
YouTube, Twitch − or select manual RTMP.
Enter your credentials and choose a channel/event, or enter the RTMP destination info and press apply.
3
Select your desired Audio/Video bitrate and resolution under the Encoder menu.
4
Go Live by clicking the Broadcast button
5

HEVC AND H.264

Cube 700 series devices support 1080p, 60fps encoding using both HEVC and H.264 codecs. HEVC
provides the most efficient encoding for both low bitrate and high quality applications, while H.264
supports a wider variety of streaming platforms and is one of the most common video codecs worldwide.
On the encoder, the codec can be switched between HEVC and H.264 from the Encoder Settings and Video
Stream Output settings pages on the web UI, or from the Video Setup menu on the front panel.
NEED MORE HELP?
1. Support: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
TERADEK SUPPORT STAFF:
support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 9am to 6pm PST)
, or use the front panel Stream Joystick
1
(I or
J).
2
3
4
