Summary of Contents for Teradek VIDIU

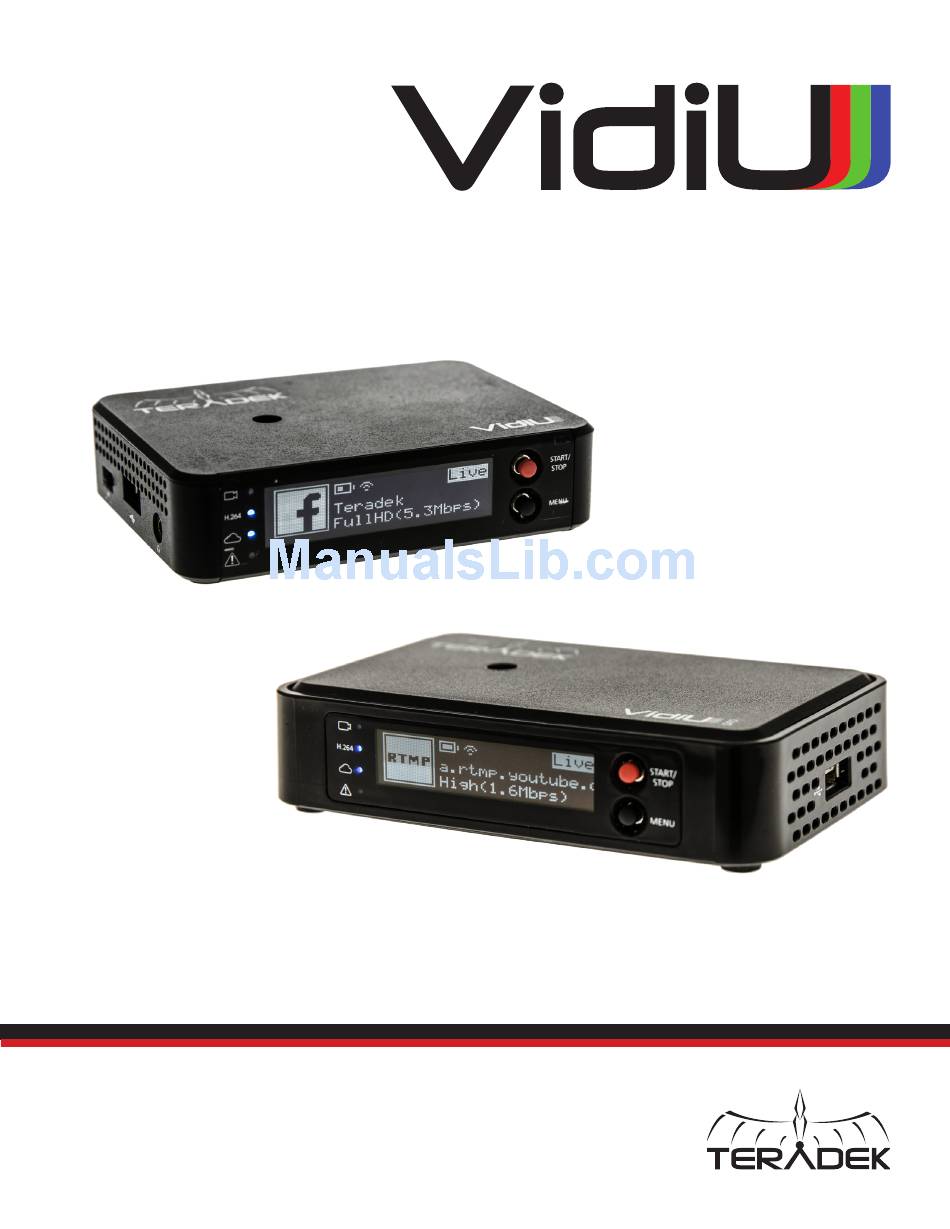

- Page 1 VIDIU AND VIDIU PRO pantone 1795 pantone 355 pantone 307 REFERENCE GUIDE © 2017 Teradek, LLC. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................3 Support Resources ............3 Disclaimer ................. 3 Warning ................3 Physical Properties ............4 2. Getting Started ................6 Power Your Device ............6 Connect to a Network ..........7 Choose a Platform ............7 Internet Streaming with Live:Air Action ....11 3. -
Page 3: Introduction
This manual is intended for user information only. Every effort has been made to ensure that the contents within are accurate at the time of printing, and that updates are made in a timely manner. Teradek cannot be held responsible for inaccuracies, typographical errors, or out-of-date information contained within this manual. -
Page 4: Physical Properties

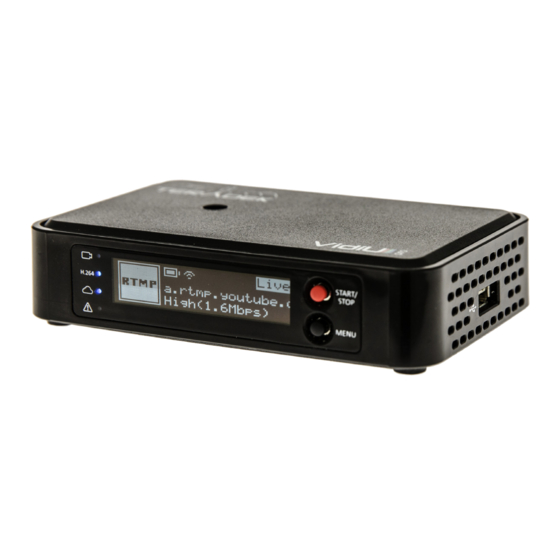

PHYSICAL PROPERTIES (VIDIU) A. Power Switch (Side) H. Start/Stop Joystick B. USB Port (Side) I. Menu Joystick C. Headphone Output (Side) J. HDMI Input D. Video Input Status K. Mic/Line Input E. Encoder Status L. Reset Button F. Broadcast Status M. - Page 5 C. Encoder Status K. Headphone Output D. Broadcast Status L. Reset Button E. Warning Indicator M. Ethernet F. Start/Stop N. DC Input G. USB Port (side) O. Power Switch H. Menu Joystick © Teradek, LLC 2017. All rights reserved. Page 5...
-
Page 6: Getting Started
2. Connect VidiU to a network 3. Choose your streaming platform POWER YOUR DEVICE 1. To power your VidiU or VidiU Pro, connect the AC adapter to the DC input (Fig. 2-1) located on the back of the device, then turn the power switch to the On position. -
Page 7: Connect To A Network
CONNECT TO A NETWORK You can use the VidiU app, the Web User Interface (Web UI), or the front panel interface to connect VidiU to a network. Select one of the following options. Using the VidiU App The VidiU iOS application allows you to remotely monitor and configure VidiU. Download the VidiU iOS app from the App Store, then choose one of the following methods to get VidiU online. - Page 8 Connect using your phone’s data plan: 1. Connect your iOS device to VidiU’s Access Point network (pg. 24): VidiU−XXXXX (serial number of the device). 2. Open the VidiU app and select VidiU with the corresponding serial number under the list of Wi-Fi devices.
- Page 9 Network Settings menu and select USB Modem.* To access the Web UI: 3. Connect your computer to VidiU’s AP network. 4. Open a web browser and enter VidiU’s IP address in the navigation bar (Fig. 2-12). Fig. 2-12 © Teradek, LLC 2017. All rights reserved.
-
Page 10: Choose A Platform
CHOOSE YOUR PLATFORM VidiU and VidiU Pro are capable of broadcasting to any compatible online video platform. VidiU offers integration with many popular video streaming platforms. Simply enter your credentials using the VidiU app, Web UI, or the front panel interface. -
Page 11: Internet Streaming With Live:air Action
Internet Streaming with Live:Air Action VidiU and VidiU Pro can be used for live production and monitoring with Live:Air Action. Use Live:Air Action to preview, monitor, and edit multiple video sources before broadcasting your video to one of the integrated platforms. -
Page 12: Settings Overview
The Settings menu allows you to customize and control VidiU or VidiU Pro’s broadcast, audio/video, and network settings. Use the VidiU app, Web UI, or the front panel interface to access the Settings menu, then select a setting to modify. -
Page 13: Settings Diagrams
Speed Test Auto Access Point Never Dynamic Preset Client Always Static Custom Purchase Plan SHARELINK Login Broadcast SYSTEM Factory Reset Network Cancel * Settings options will vary, depending on the platform © Teradek, LLC 2017. All rights reserved. Page 13... - Page 14 WEB USER INTERFACE (WEB UI) SETTINGS DIAGRAM Audio Frame Rate Video Custom Bitrate Quality BROADCAST Platform* Full HD High 256000 Livestream Full High 192000 Ustream Half Medium 128000 YouTube High Quarter 96000 Twitch Medium 48000 Mobile Facebook Auto 32000 Manual Mobile Live:Air 16000...
- Page 15 VIDIU FRONT PANEL INTERFACE SETTINGS DIAGRAM Audio Frame Rate Video Adaptive Bitrate Quality BROADCAST Platform* Full HD High On/Off High Full Livestream Medium Ustream Half High YouTube Quarter Twitch Medium Mobile Facebook Auto Manual Mobile Live:Air Periscope Wowza Media Format...
-
Page 16: Broadcast: Platform Settings
Broadcast: Platform Settings VidiU and VidiU Pro feature native integration with some of the most popular streaming platforms. Navigate to Settings>Broadcast>Platform (Broadcast Settings>Platform from the front panel), select one of several broadcast platforms, then enter your credentials or destination information. - Page 17 ‘Notify Followers’ switch to On before tapping the broadcast button. b. If broadcasting from the VidiU app (Fig. 3-6), you will be prompted to select whether or not to notify your followers after tapping the broadcast button.
-
Page 18: Home Screen
/www.google.com/device, then enter your credentials (Fig. 3-10). Enter the code, then allow VidiU to access your account. 3. Select an event, create a new event, or select ‘Stream Now’ (Fig. 3-11). Two types of Broadcast destinations a. - Page 19 ● Your Timeline privacy setting will be used if a less restrictive privacy option is chosen. (e.g. your timeline is set to Friends, but you set VidiU to ‘All. ’ The post will be visible to friends). ● Posts to Facebook pages are always public.
- Page 20 4. Tap the Broadcast button to begin streaming (Fig. 3-20). RTMP (Manual): VidiU can stream to other video platforms, CDNs, and streaming servers using RTMP mode. RTMP is supported by most video streaming platforms. 1. Select RTMP (Manual if using the Web UI).
-
Page 21: Broadcast: Quality Settings
Up to 50/60fps** Full - 24/30fps Half - 12.5/15 fps Quarter - 6/7.5 fps * Steps apply to all Quality Settings. ** Some platforms do not support frame rates higher than 30fps © Teradek, LLC 2017. All rights reserved. Page 21... -
Page 22: Video/Audio
Audio Channel Select either Stereo, Mono Left, or Mono Right. Overlay Settings (previous screen) VidiU allows you to add a timer or scoreboard to your broadcast. Configure these options using the Overlay Settings menu. Fig 3-23: Aspect Ratio Comparison * Audio level and volume are adjustable when Analog input is selected. -
Page 23: System
(Fig. 3-24). Firmware Upgrade Upgrade VidiU’s firmware to the lastest version. Perform a Firmware Upgrade from front panel or VidiU app When you turn on VidiU, the device will automatically check for new firmware. If an update is available, follow the prompts to complete the update. -
Page 24: Network
Network VidiU allows you to connect and stream to the Internet by utilizing one of several network interfaces. Navigate to Settings>Network (Network Settings from the front panel), then make a selection. Wired A wired Ethernet connection is typically the most reliable means for connecting to a network, as you don’t have to deal with the instability of a... -
Page 25: Usb 3G/4G Modem
Always - If no other Internet connection is detected, VidiU will always utilize your mobile device’s data connection Never - The VidiU app will not prompt you to share your phone’s Internet connection Ask (Yes/No)- You will be asked whether or not to use your phone’s data connection... -
Page 26: Recording
With VidiU Pro, you can record your broadcasts directly to an SD card or USB drive. Each recording is saved with the same resolution and bit rate set on the device. From the front panel interface, Web UI, or the VidiU app, go to your Settings, then select Recording. - Page 27 Apply on the upper right-hand corner. Fig. 3-36 Fig. 3-37 4. Return to the Home screen, and tap the ‘Broadcast’ To control VidiU Pro from the Sharelink dashboard: 1. Visit https:/ /sharelink.teradek.com and log in to your account. 2. Tap the...
-
Page 28: Troubleshooting
TROUBLESHOOTING My firewall/router is blocking RTMP streaming. VidiU and VidiU Pro use a set of ports for RTMP streaming. Make sure the required ports are allowed through your firewall or router. The list can be found at https:/ /support.teradek.com/hc/en-us/ articles/226177168. - Page 29 We recommend using VidiU’s web interface or the VidiU iOS app for configuring VidiU. It’s much faster and simpler. To connect with the iOS app, connect VidiU and your iOS device to the same wireless network. VidiU will automatically appear in the app.
-
Page 30: Technical Specifications
TECHNICAL SPECIFICATIONS VIDIU VIDIU PRO VIDEO Video Inputs HDMI 1.4a: Full Size HDMI 1.4a: Full Size Supported 1080p 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30 Resolution 1080i 50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 720p 50/59.94/60 576i/p 576i/p 480i/p 480i/p VIDEO PROCESSING Video H.264, baseline, and main profile H.264, baseline, and main profile... - Page 31 6-12V DC Barrel Adapter 6-18V DC Barrel Adapter Nominal Power 3W (while Charging: up to 10W) 4.5W (while charging: up to 10W) Consumption Battery Internal Rechargeable Lithium-ion Battery Internal Rechargeable Lithium-ion Battery © Teradek, LLC 2017. All rights reserved. Page 31...
-
Page 32: Fcc Statement
EC DECLARATION OF CONFORMITY Teradek LLC herby declares that the VidiU and VidiU Pro are in compliance with Directive 1999/5/EC. The full text of the EC Declaration of Conformity is available at the following internet address: https:/ /support.teradek.com/hc/en-us/articles/233429747-EC-...
