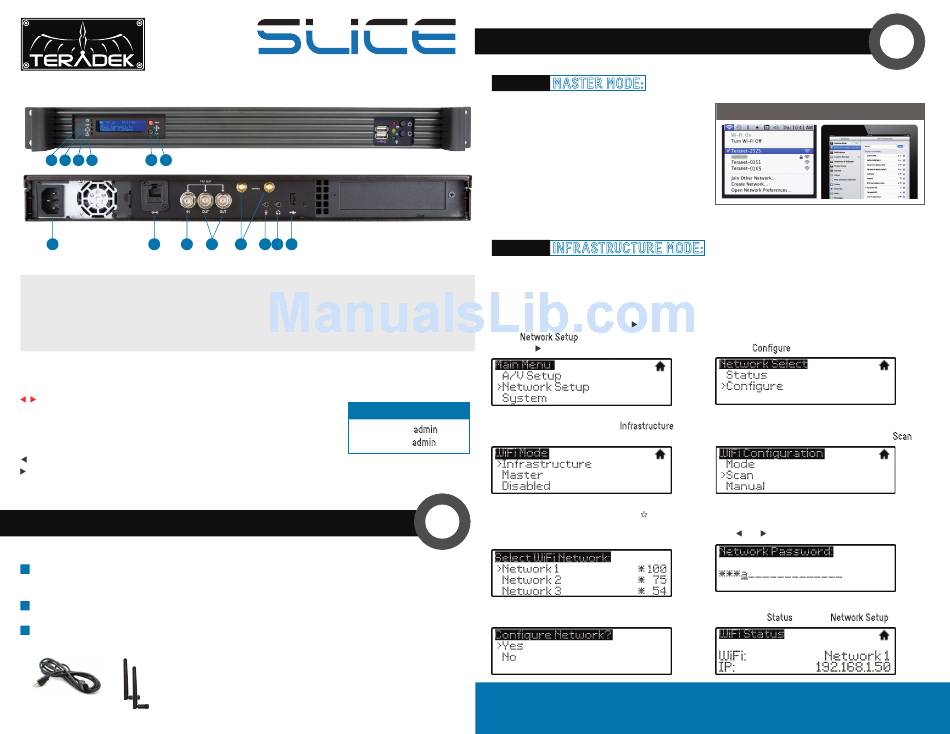

Teradek Slice Manual

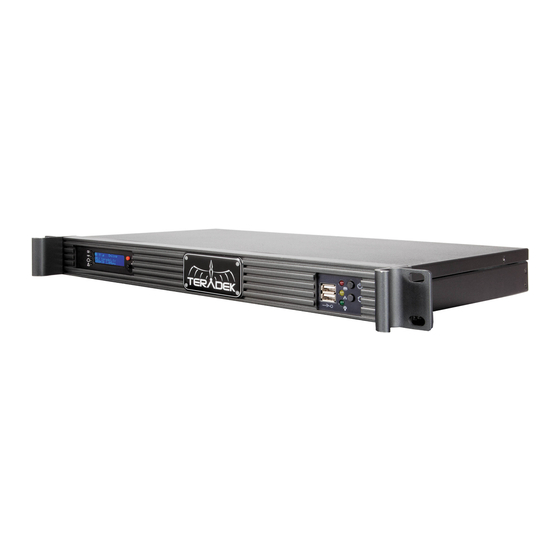

A B C D E F
G H
I
A: Video Input F: Stream Joystick
B: Status G: A/C Input
C: Broadcast/Record H: Ethernet Port
D: Fault/Error I: SDI In
E: Menu Joystick J: SDI Out
Stream Joystick:
, : Selects options from streaming/recording prompts
: Returns to main status screen, start/stop recordings and broadcasts
(button press)
●
Menu Joystick:
, : Select menu items, change status screen on main display, select characters
▲ ▼
: Back, move to higher menu level
, : Confirm selection, open selected menu
● (button press)
POWER & CONNECT
Connect A/C power to the Power Input (G). Attach the included Wireless antennas via the threaded
1
RP-SMA connectors (K).
Connect Slice to your network via the 10/100 Ethernet port (H).
2
3 Connect the SDI output from your video Source to the HD-SDI input
WiFi antennas
AC adapter
K L M N
J
K: Wireless Antenna
L: MIC Audio Input
M: Headphone Audio Output
N: USB Port
SLICE'S WEB UI LOGIN
username:
password:
(I) on Slice.

NETWORK CONNECTION

Encoder
MASTER MODE:
OPTION A:
Slice defaults to Master mode, which will create and
advertise its own network name (SSID). Your computer,
decoder, or mobile device connects directly to Slice
with no additional network equipment required.
1. On your computer or iOS device, open your
wireless networking utility.
2. Choose your Slice from the list of WiFi devices
in your area and connect to that network.
INFRASTRUCTURE MODE:
OPTION B:
In Infrastructure mode, Slice connects to an existing network via a wireless access point or Ethernet
connection. Infrastructure mode allows Slice to communicate with all devices on the network and is required
for streaming to the Internet. Wireless range can be greatly improved by using a wireless access point.
Connecting Slice to an existing wireless network:
1. Enter the main menu by pressing or
Select Network Setup with
menu with .
3. Select Mode, and then choose Infrastructure.
admin
The Wireless mode will be set.
admin
1
5. Select your preferred network, (the
indicates a secured network), and the number
on the far right is the signal strength.
7. Choose Yes to apply the new network settings.
NEED MORE HELP?
1. Support forum: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
2. Training videos: http://www.teradek.com/trainin
TERADEK SUPPORT STAFF:
Connect Slice to one other device.
WiFi CONNECTION ON MAC/PC OR iPAD
Add Slice to an existing network.
.
●
and enter the
▼
2. Select Configure.
4. From the WiFi Configuration menu, choose Scan.
6. If prompted, enter your network password. Choose
* icon
characters with
with and , and confirm with
8. Once configured, you can view the network status
by selecting Status
g
support@teradek.com or call 888−941−2111 ext2 (Mon−Fri 9am to 6pm PST)
2
and , choose the position
▲ ▼
. To cancel, press .
● ●
from the Network Setup menu.
